Teac HDB849 - Connecting to DVD Recorder or VCR

7
2.3 Connecting to a DVD Recorder or VCR

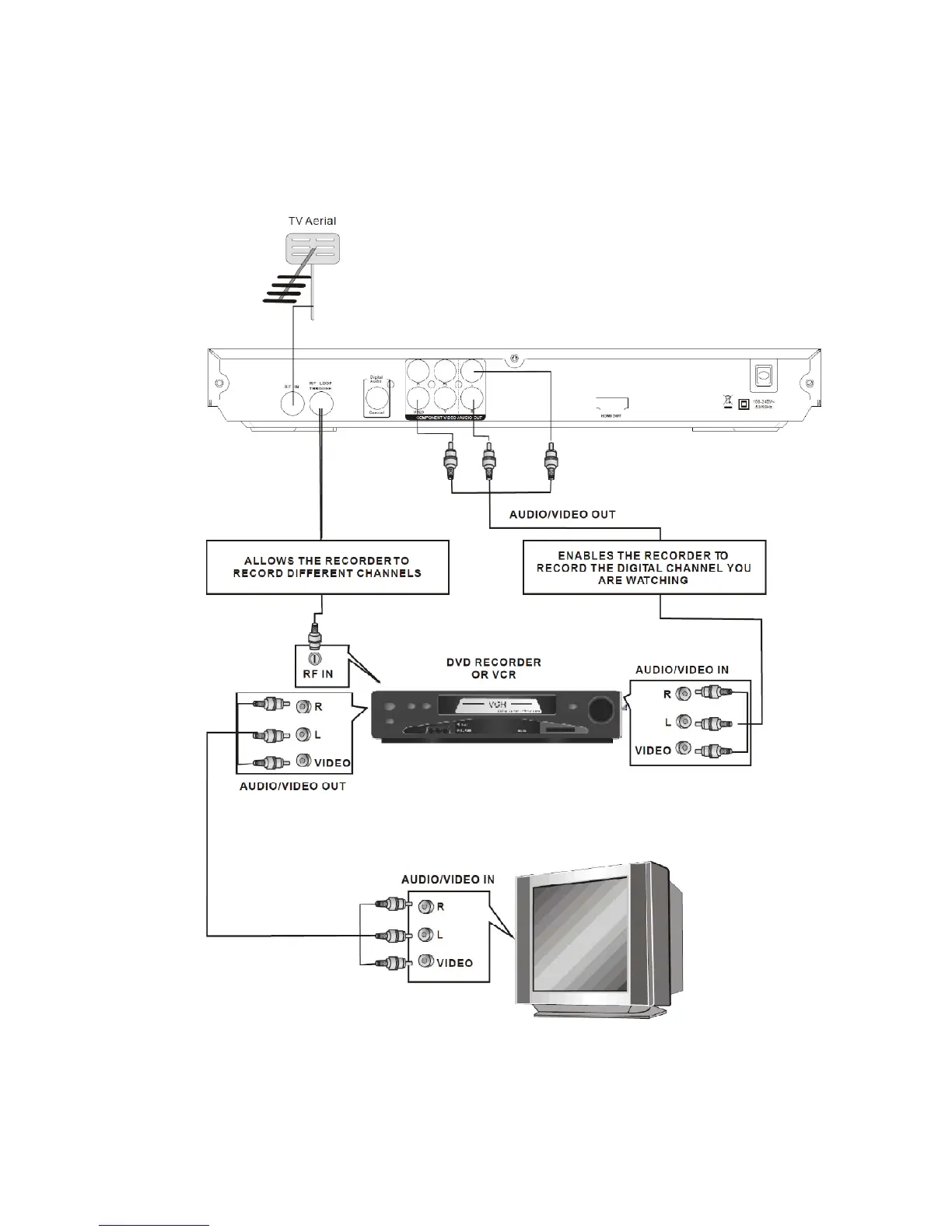

This connection is optional, giving the user the option to have a DVD or VCR recorder
connected to the unit to record programs. Use the AV cables to connect the external DVD
recorder or VCR to the AV output jacks on the rear panel of the unit. Connect a coaxial cable
to the unit to allow recording for various channels as shown in the diagram below.
