15. GENERAL MAINTENANCE EO1-11154
15.7 Drawer Key
15- 3

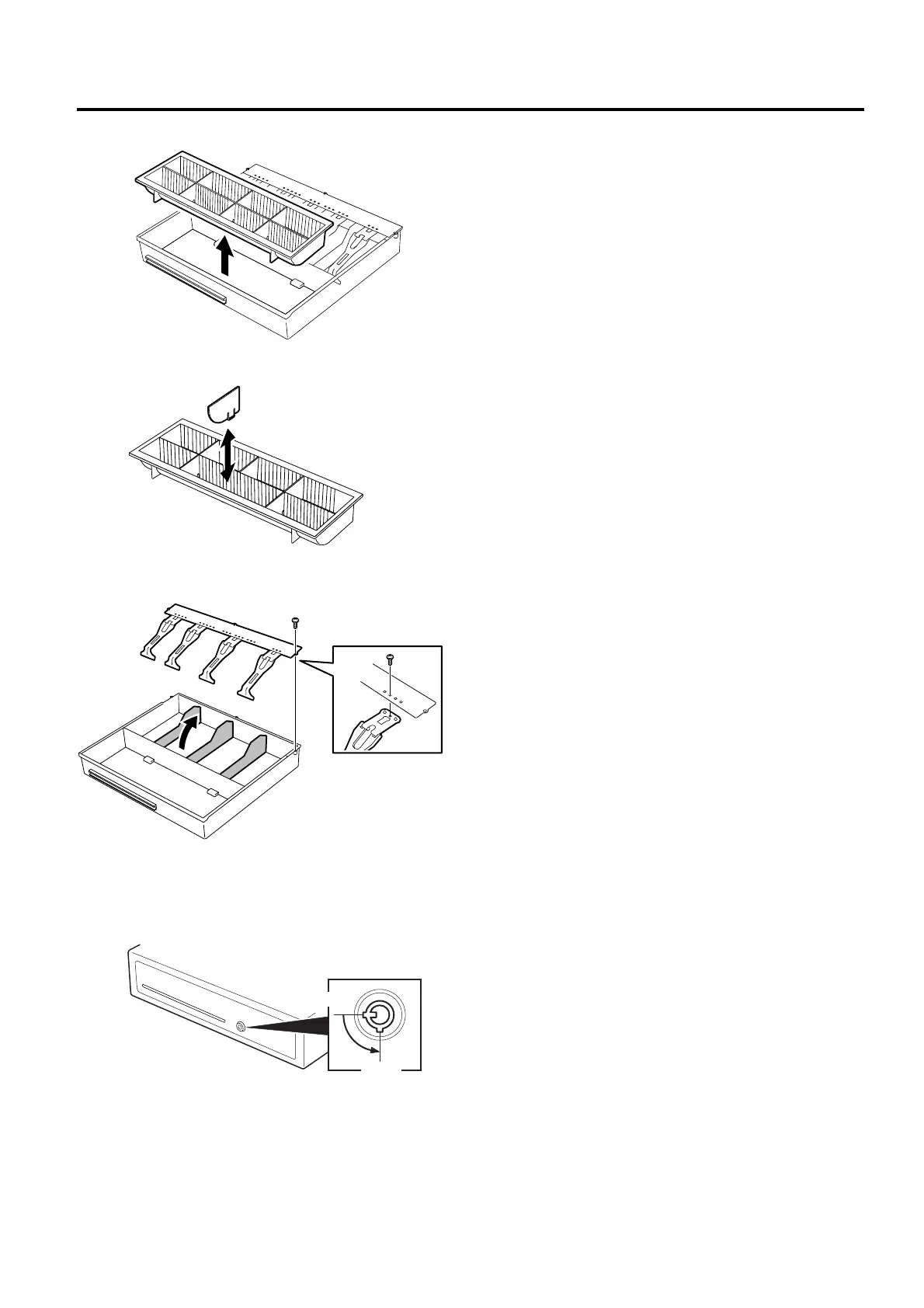

2. Remove the Coin Case from the Money Case.
3. To remove the Partition from the Coin Case, pull the
Partition upward. Set the Partition in the groove
where you like, then push down the Partition.
4. To change the layout of the Bill Case, it is necessary
to remove the Bill Holder. To remove the Bill Holder,
remove the three screws to detach the Bill Holder
Ass’y from the Money Case. Then remove the
screw to detach the Bill Holder from the Plate. To
remove the Partition, pull it upward.
15.7 Drawer Key
Insert the Drawer Key into the Drawer Key Lock, then
turn it 90° counterclockwise to lock the Drawer.
LOCK
RELEASE
