TJ UV Printer User Manual

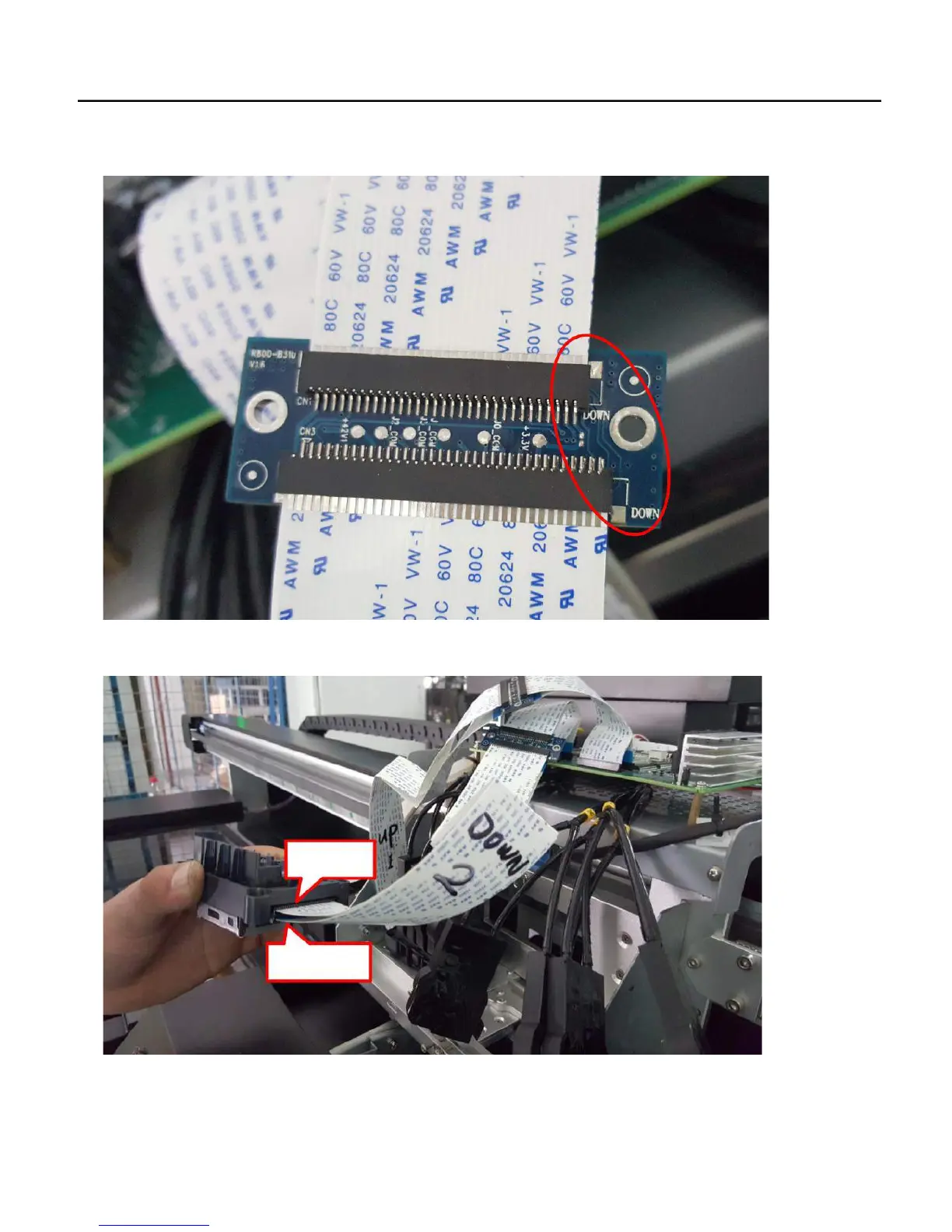

8., Install the two print head transit cable as following:, DX7 print head need this transit cable, if install with DX5 will no need
this transit board, please pay attention to the mark on the transit board with UP/DOWN, conect at same port mark on carriage
board with UP/DOWN mark.
9. Connect another side with the print head as following: please pay attention to the UP/Down of the print head.
Up Cable
Down Cable
