Step 1: Select a vehicle from the queue.
See “Add a vehicle to the test queue” on
page 22 for instructions.
The registration plate icon shows the
registration plate of the selected vehicle.
A lock on ATL indicates you can only
test in MANUAL mode.
“Class: 1 or 2, Parking brake: none” is
presented.

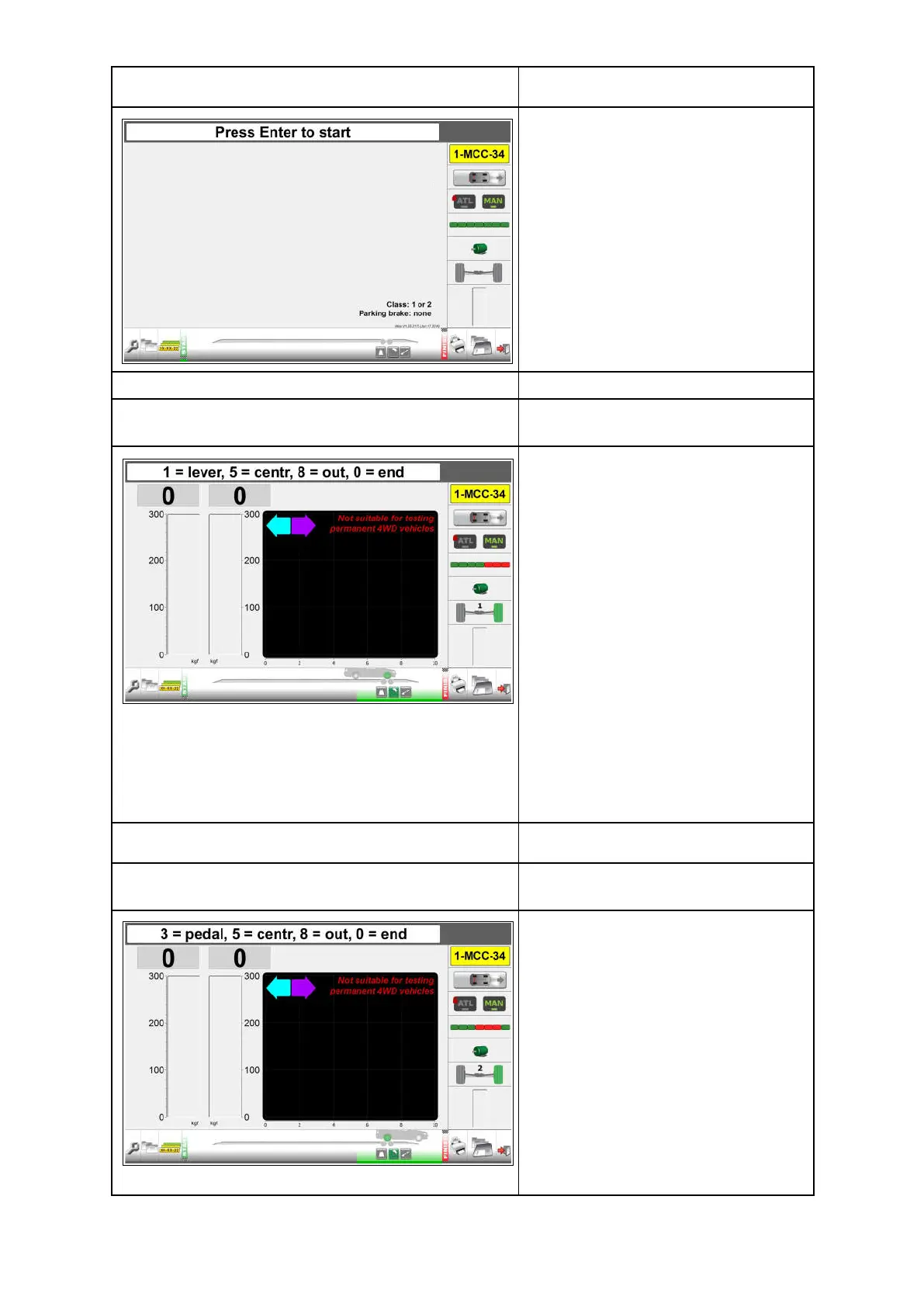

From the start screen:
Press OK to start the first test.
Test 1. Weight measurement front wheel.
Press for“Service brake test axle 1”
Test 2. Maximum brake force service brake front
wheel
The single wheel can only be tested on
the right side of the brake tester.
The axle icon shows the tyre in green
on the right side only.
Select 5 to start to centralise the wheel:
“Centralising vehicle”.
Select 1=Lever. The prompt “Apply
service brake to max (lever)” appears.
During the test, the operator can check
for Grab, Bind, Rate of Increase,
Fluctuation and Rate of Decrease.
Select 8 Out.
“Service brake test complete”
Test 3. Weight measurement rear wheel.
Press for "Weight measurement axle
2"
Test 4. Maximum brake force service brake rear
wheel.
Press for "Service brake test axle 2"
Select 5 to start to centralise the wheel:
“Centralising vehicle”.
Select 3=Pedal. The prompt “Apply
service brake to max (pedal)” appears.
During the test, the operator can check
for Grab, Bind, Rate of Increase,
Fluctuation and Rate of Decrease.
Select 8 Out.
“Service brake test complete”
