7. Maintenance and Cleaning
Manifold for Instrument with Aerosol Aspiration

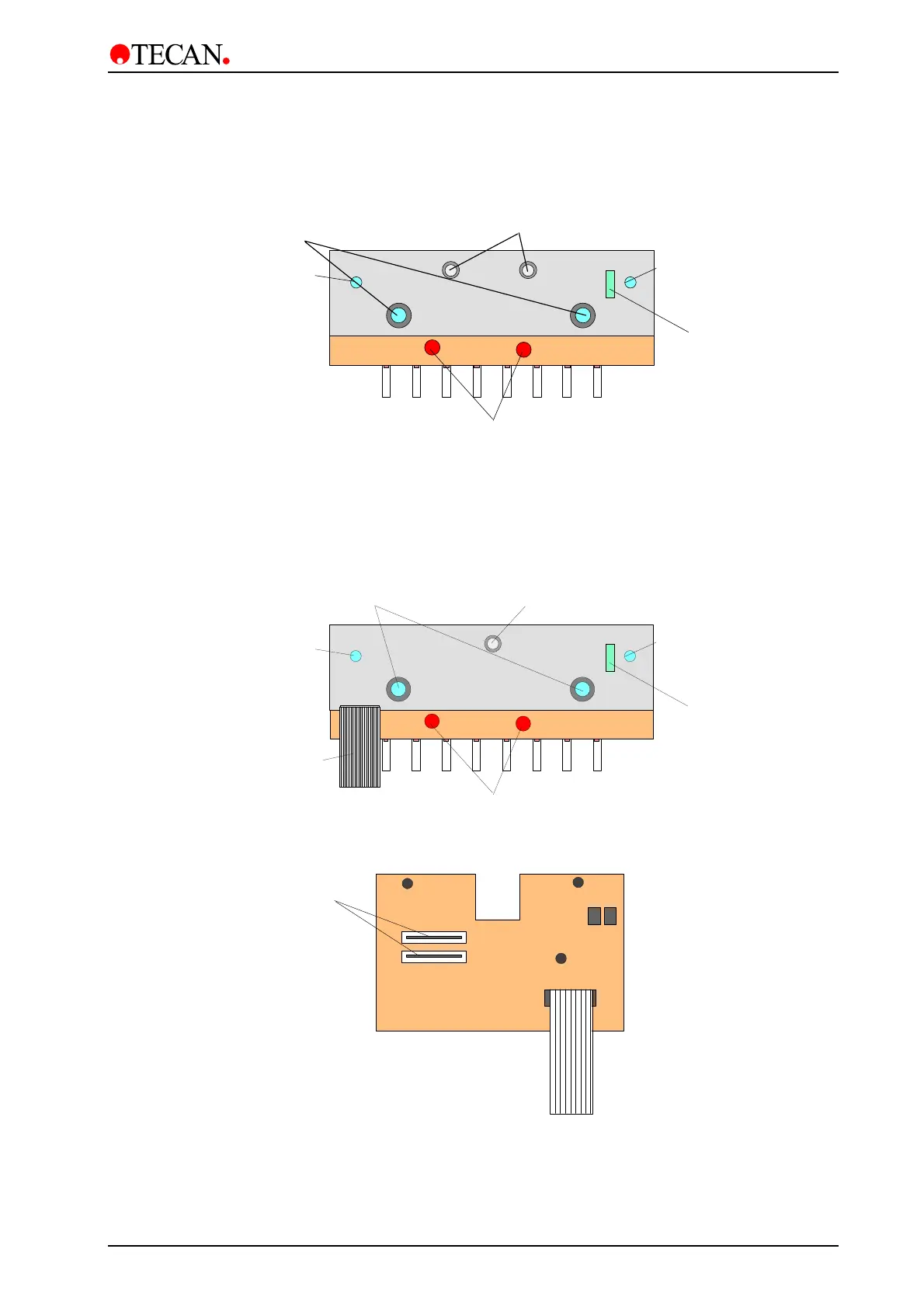

Fig. 7-5 Rear View of the Manifold
Dispensing Tube Connector
A
spirating Tube Connectors
Manifold Type
Indicator
Locating Pin
Locating Pin
A
erosol Tube Connectors
red
blue
yellow
Manifold for Instrument with Fill Verification
Fig. 7-6 Rear View of the Manifold
Dispensing Tube Connector
A
spirating Tube Connectors
Manifold Type
Indicator
Locating Pin
Locating Pin
A
erosol Tube Connectors
Ribbon Cable
red
blue
yellow
Ribbon Cable
connectors
1
2
For a 8 or 12
manifold only use
connector 2
When all the required tubing and ribbon cable have been connected, lower the
manifold arm.
