Dimensions and Weights
16 / 54 Tecan Vacuum Separator (Te-VacS™) Operating Manual, 391236, en, V4.0
3.2 Dimensions and Weights

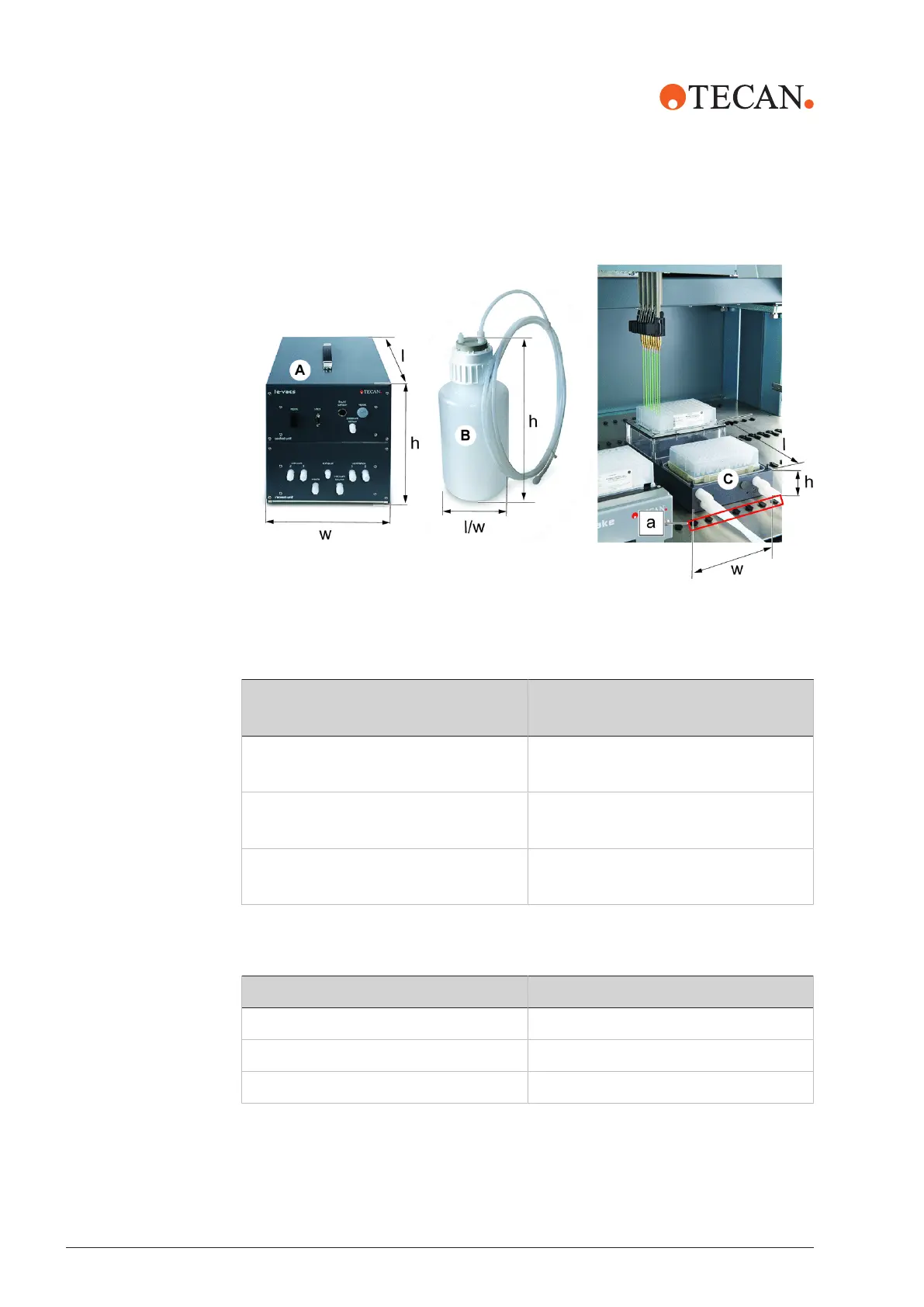

Illustration2: Te-VacS components
A Te-VacS tower B Waste bottle
C Base plate vacuum block
Component Dimension
Length (l) x Width (w) x Height (h)
Te-VacS tower 300mm x 700mm x 340mm
(11.8in. x 27.6in. x 13.4in.)
Waste bottle 160mm x 160mm x 530mm
(6.3in. x 6.3in. x 20.9in.)
Base plate vacuum block 285mm x 155mm x 49mm
(11.2in. x 6.1in. x 1.9in.)
The base plate vacuum block extends over seven grid spaces (a) on the Freedom
EVO worktable as well as on the Fluent deck.
Component Weight
Te-VacS tower <13.0kg (<28.7lbs.)
Waste bottle 2.0kg (4.4lbs.)
Base plate vacuum block 3.3kg (7.3lbs.)
