tecan Te-VacS - Connecting the Waste Bottle

5 - Operation
Putting into Operation
30 / 54 Tecan Vacuum Separator (Te-VacS™) Operating Manual, 391236, en, V4.0
5.2.4 Connecting the Waste Bottle
To connect the waste bottle, proceed as follows:
1. Connect the waste bottle to the Te‑VacS tower using three tubes of the same
length (A, B, C).
A
B
C
D
A
B
D
C

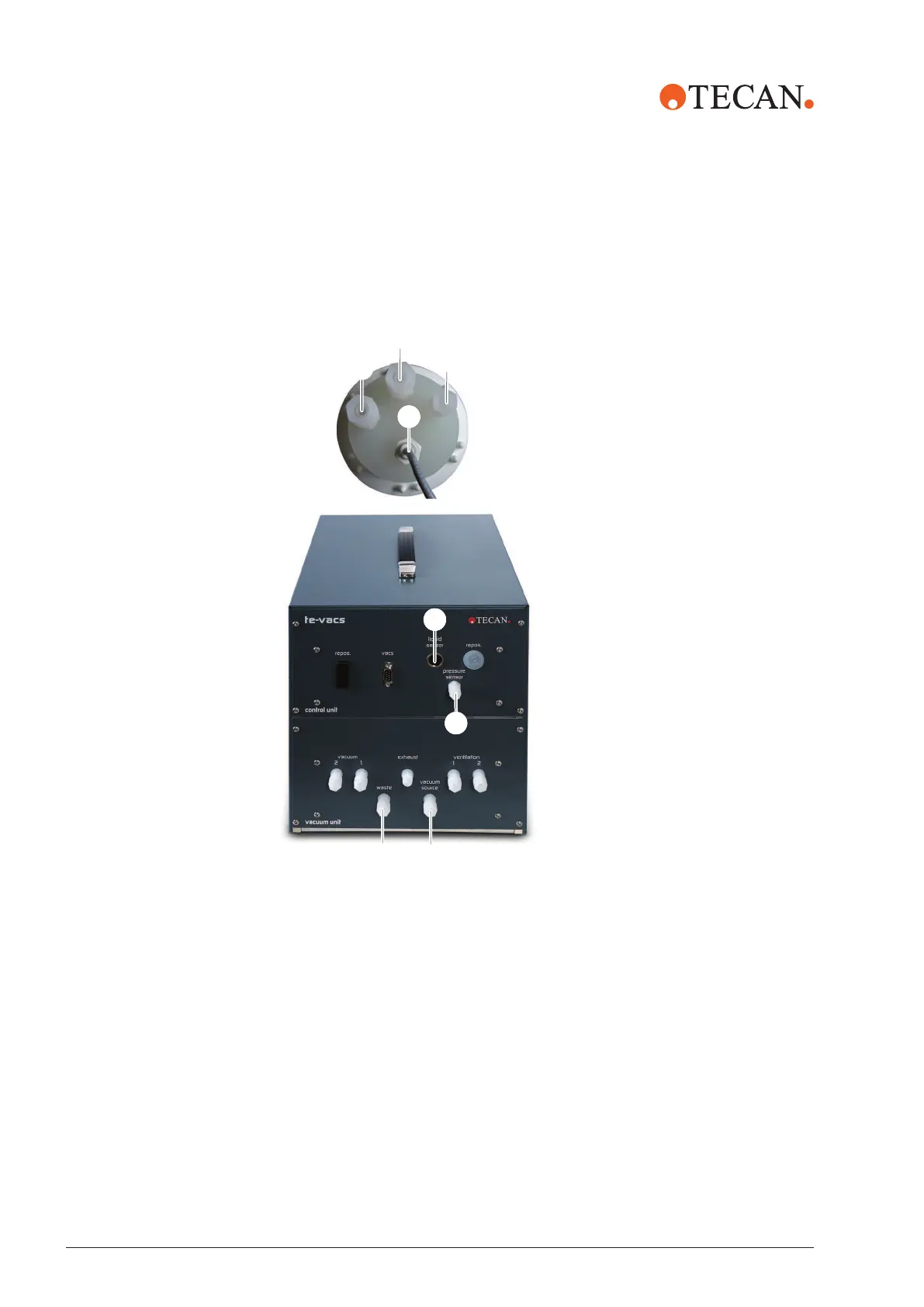

Illustration16: Waste bottle connections
2. Connect the liquid level sensor cable to the Te-VacS tower (D).
3. Carefully tighten the tubing’s fixing nuts using a wrench.
NOTICE!It is recommended to tie the tubes together using cable ties.
