tecan Te-VacS - Connecting the Base Plate

5 - Operation
Putting into Operation
32 / 54 Tecan Vacuum Separator (Te-VacS™) Operating Manual, 391236, en, V4.0
5.2.6 Connecting the Base Plate
1. Connect the extraction holes of the base plate vacuum block with the
corresponding connections at the Te‑VacS tower (A, B) using two tubes of the
same length.
A
D
B
C
C
D
A
B

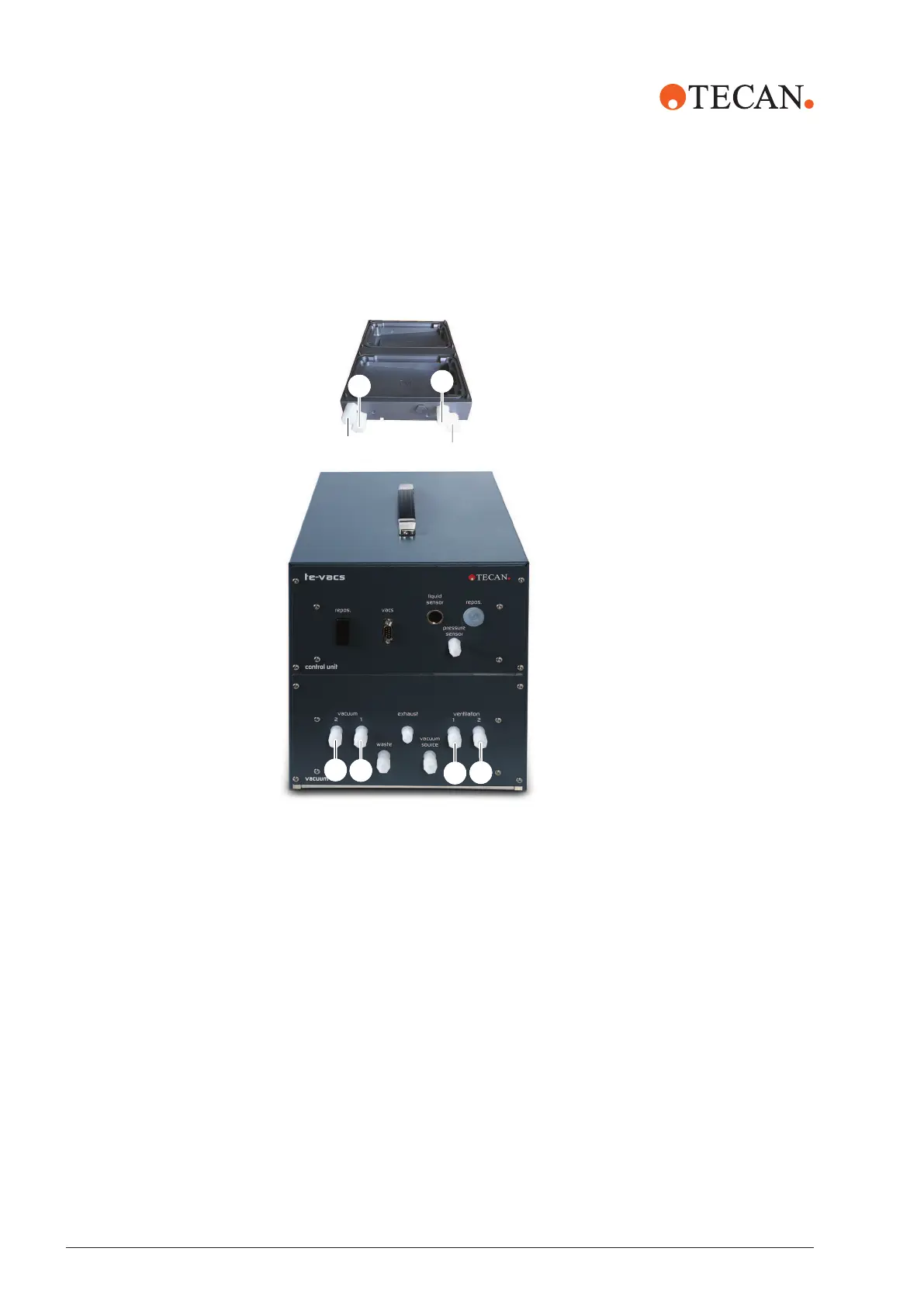

Illustration18: Vacuum block connections
2. Connect the ventilation holes of the base plate vacuum block with the
corresponding connections at the Te‑VacS tower (C, D) using two tubes of the
same length.
3. Carefully tighten the tubing’s fixing nuts using a wrench.
NOTICE!It is recommended to tie the tubes together using cable ties.
