5.2.8 Mounting the Sound Absorber
1. Remove the fixing nut of the tubing connector at the exhaust outlet (C) of the
vacuum unit (A).
2. Screw on the sound absorber (B) to the exhaust outlet of the vacuum unit.
A
C
B
C

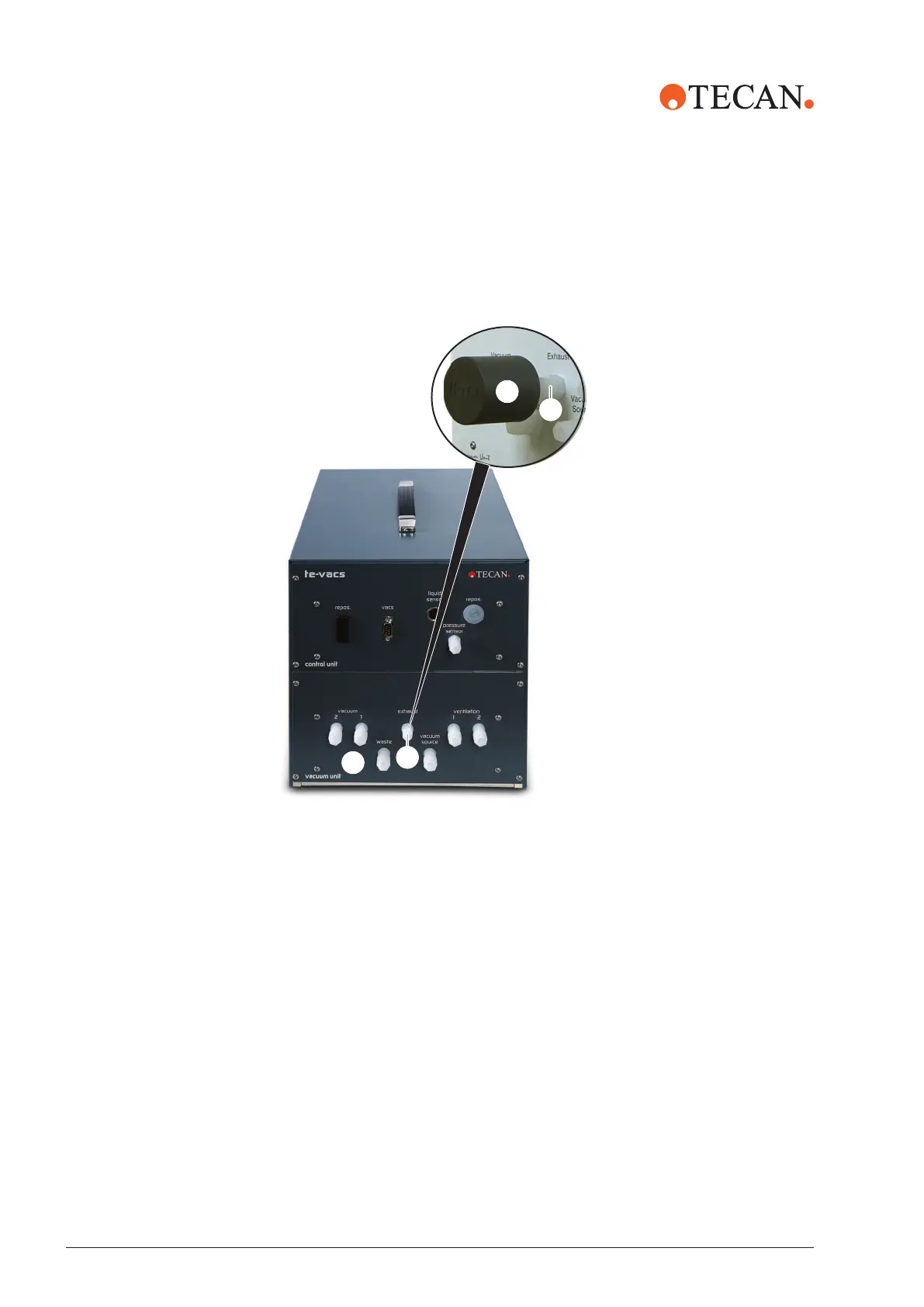

Illustration21: Mounting the sound absorber
3. Carefully tighten the fixing nut using a fork wrench.
