5 - Operation
Putting into Operation
Tecan Vacuum Separator (Te-VacS™) Operating Manual, 391236, en, V4.0 33 / 54
5.2.7 Tubing Identification
Color markers facilitate to assign tubes to their corresponding fittings on the Te-
VacS tower. This may help you to find the right connections more easily after
disassembly (e.g., for cleaning or moving purposes). The color markers are
delivered with the Te‑VacS.
1. After all tubes are correctly connected to the Te-VacS tower, label each
connection with a color sticker (B).

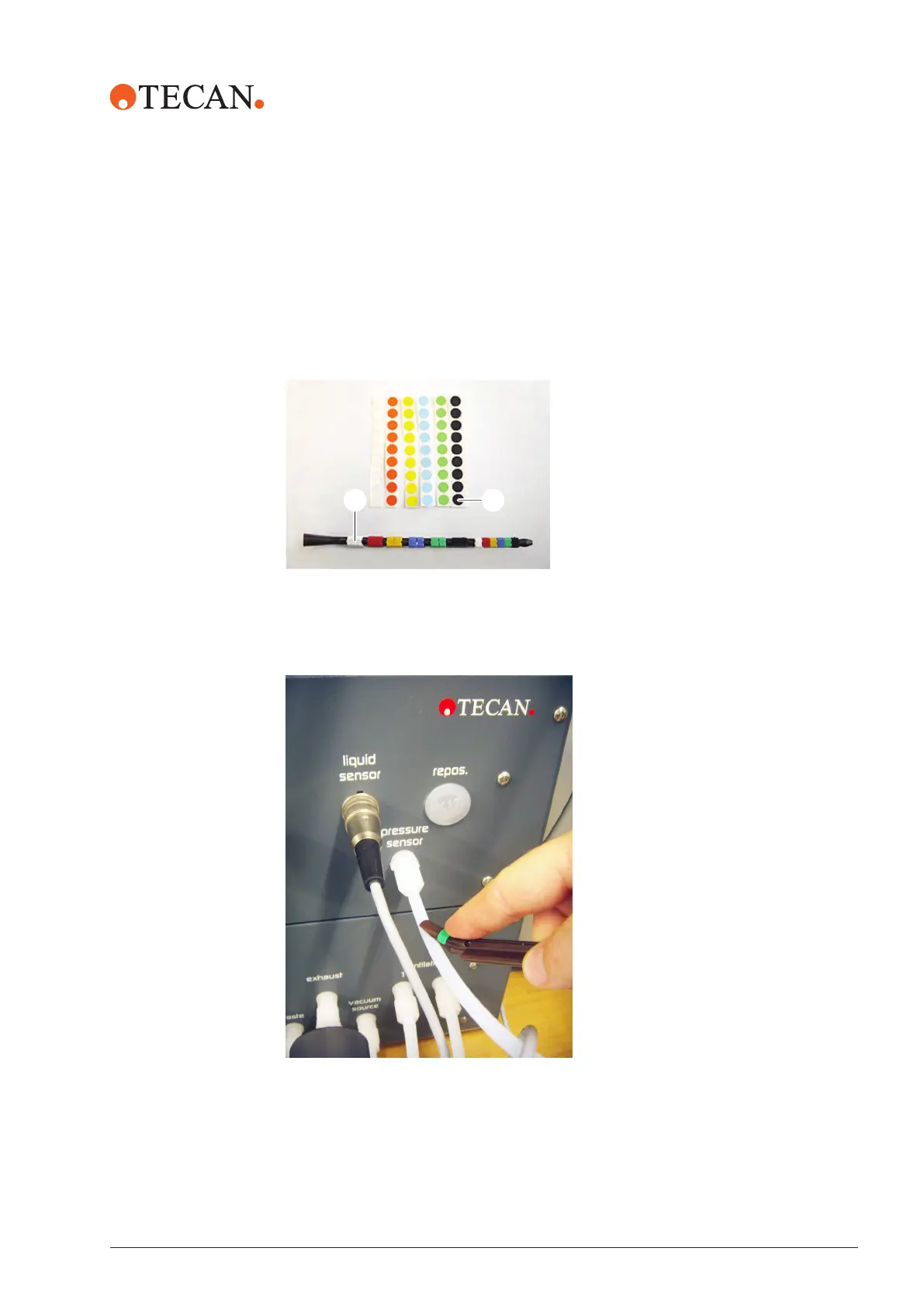

Illustration19: Color markers (clips and stickers)
2. Attach the clips (A) to the connected tubes according to the colors of the
stickers on the Te-VacS tower. Slide the clips from the tool onto the tubes as
shown in the illustration below.
Illustration20: Clip for tubings
