4 - Description of Function
Function
24 / 54 Tecan Vacuum Separator (Te-VacS™) Operating Manual, 391236, en, V4.0

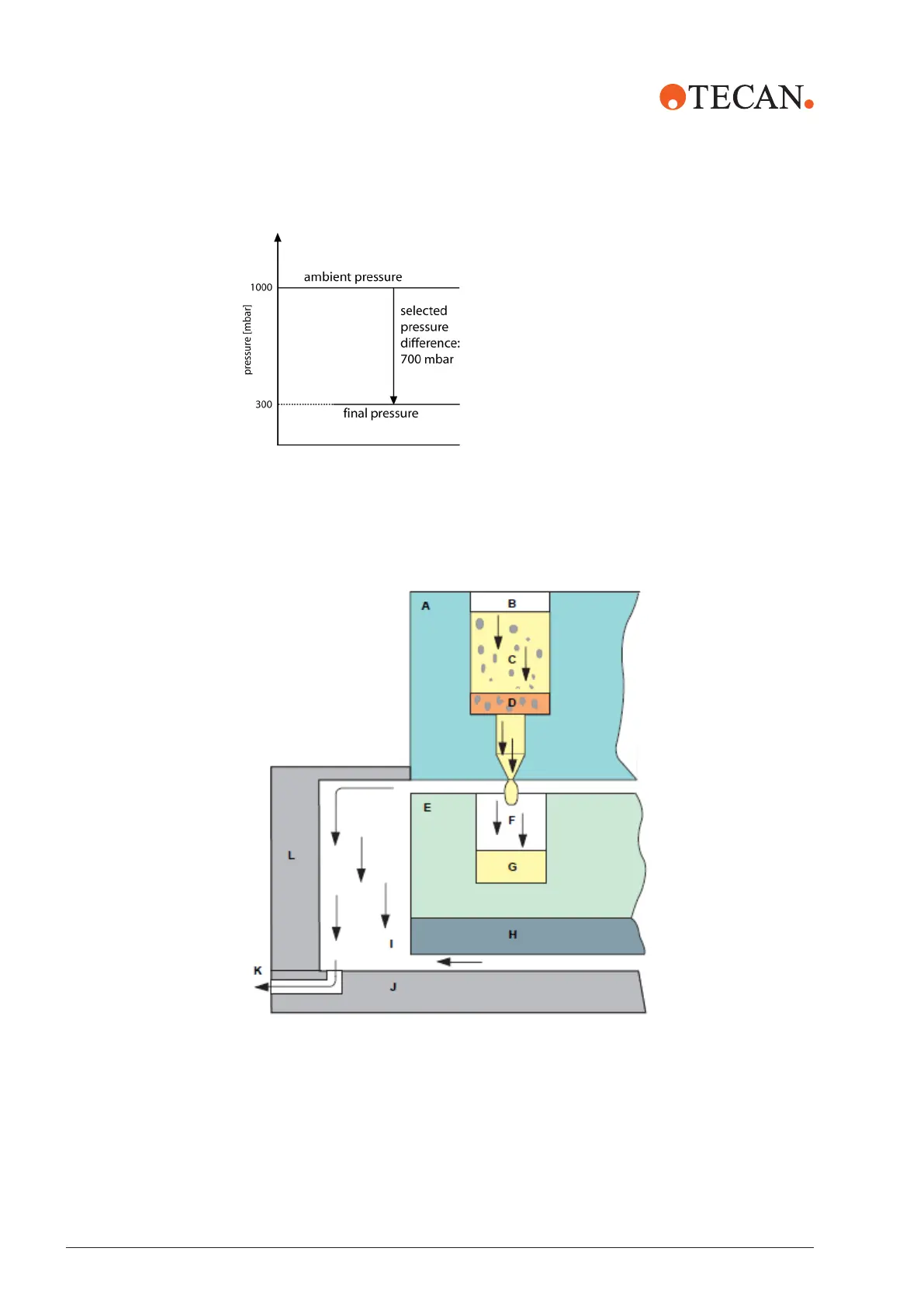

Illustration7: Definition of pressure difference
All vacuum extractions take place in a 96‑well format. The eluate is usually
collected either in a 96‑well microplate or in a deepwell plate.
4.8.1 Basic Principle of an Extraction Process
Illustration8: Basic principle of an extraction process
A SPE cartridge block B Single well of SPE cartridge block
C Crude mixture D Resin or filter
E Collection plate F Single well of collection plate
G Purified product H Spacer
I Low pressure atmosphere J Base plate vacuum block
K To the waste bottle L Vacuum block
