Technaxx TX-83 User Manual

34

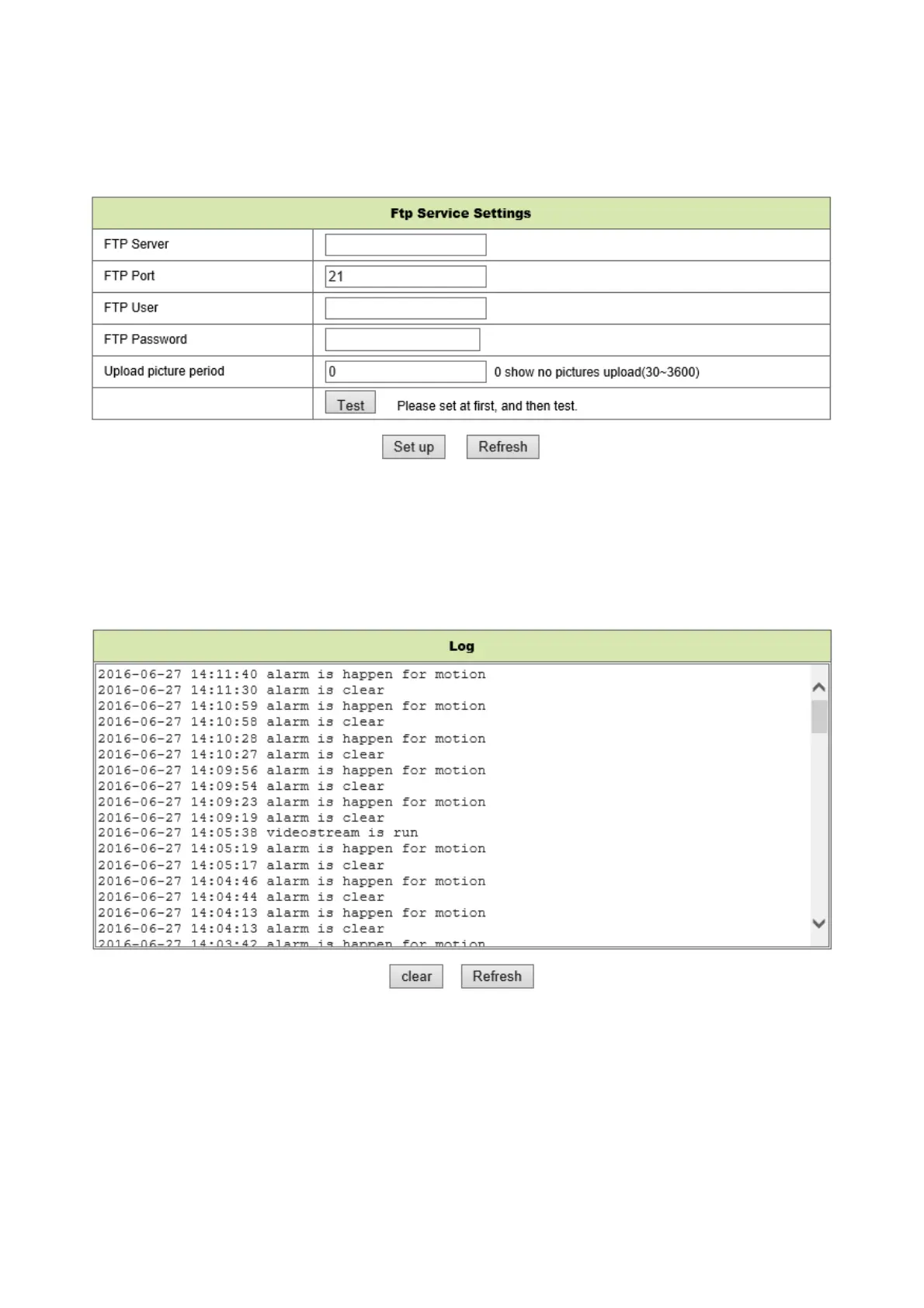

8.5.3 FTP Service Setting
When alarming, the device will snap local picture and send them to FTP server, but need to
set the FTP setting correctly. As figure 8-15, after the setting is finished, click “Test” to check
your settings are correct or not.
Figure 8-15
Note: For using the FTP function, you need to apply a user with authority that you can write
and create submenu and some memory space. For FTP server just insert the IP address.
8.5.4 Log
You can inquire when the device performs alarm in alarm log.
Figure 8-16

Technaxx TX-83 Specifications

General

Type	IP security camera
Placement supported	Indoor
Connectivity technology	Wired
Form factor	-
Mounting type	Wall
Product color	Black
Protection features	Dust resistant
International Protection (IP) code	IP65
Full HD	No
Total megapixels	1 MP
Maximum resolution	1280 x 720 pixels
Supported video modes	720p
Video formats supported	H.264
Image quality adjustment	Brightness, Contrast, Saturation, Sharpness
Supported graphics resolutions	1280 x 720 (HD 720)
Tilt angle range	70 - 80 °
Camera shutter speed	1/100000 s
Minimum illumination	1 lx
Sensor type	CMOS
Optical sensor size	1/4 \
Ethernet LAN	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)
Supported network protocols	TCP, IP, HTTP, DHCP, DNS, DDNS, SMTP, NTP
Detection distance	10 m
Focus adjustment	1.2
Focal length range	0 - 3.6 mm
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	64 GB
Audio formats supported	G.711
Signal-to-Noise Ratio (SNR)	40 dB
Ethernet LAN (RJ-45) ports	1
DC output current	2 A
DC output voltage	12
Power source type	DC
Power consumption (max)	16 W
Operating temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	0 - 90 %

Weight and Dimensions

Width	150 mm
Height	200 mm
Weight	1200 g
