The Routing Information Protocol (RIP) defines a way for routers, which connect networks
using the Internet Protocol (IP), to share information about how to route traffic among
networks. RIP is classified by the Internet Engineering Task Force (IETF) as an Interior
Gateway Protocol (IGP), one of several protocols for routers moving traffic around within a
larger autonomous system network -- e.g., a single enterprise's network that may be
comprised of many separate local area networks (LANs) linked through routers.To configure
the RIP feature, the user needs to provide the following information:
• Send Version (Version 2 recommended)
• Receive Version (Version 2 recommended)
• Update Interval (duration between route updates – default 30 seconds)
• Neighbour Address(Next hop address)

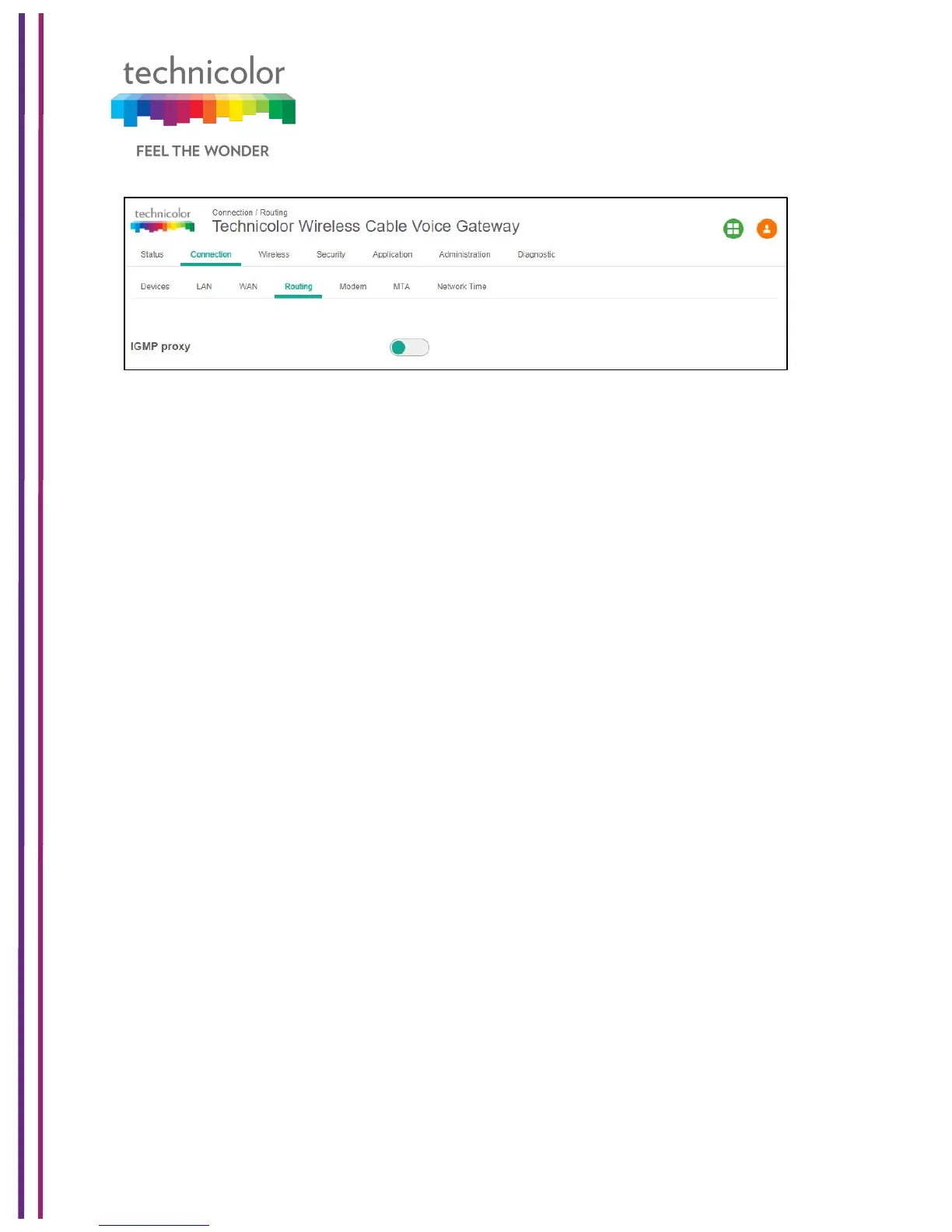

Click on the Connection tab then click on the Routing tab. The gateway will display the
