3/6/2018 Proprietary and Confidential - Technicolor 27

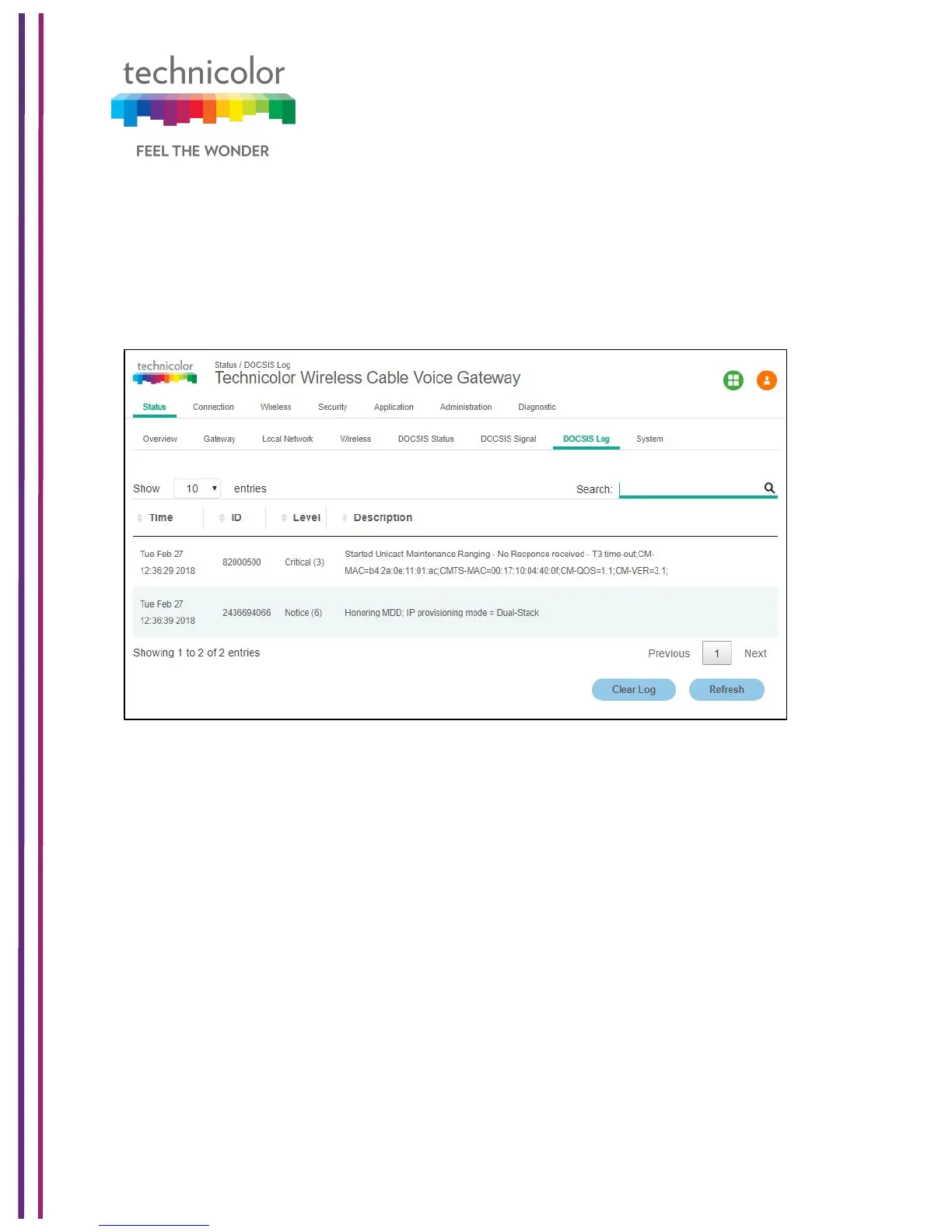

The page displays information about the DOCSIS Log including Time, ID, Level and
Description for the entries. Click on the Status tab then click on DOCSIS Log. The number
of entries to be listed can be selected from the drop-down menu corresponding to the “Show
CGA4131 Business Gateway supports the Spectrum Analyzer feature, which can monitor a
cable plant in real-time. This feature can provide details on the spectrum either via the Web
There are 3 main features that the spectrum analyzer supports: Run, Hold and Preset.
• A user can click the RUN button and would see real-time measurements being sent
by the tuner to the HTTP server and being displayed on the webpage.
• A user could also click HOLD to freeze the spectrum at the last measurement to
• Clicking PRESET would set the defaults and disable spectrum analyzer.
