Technics SL-P1300 User Manual

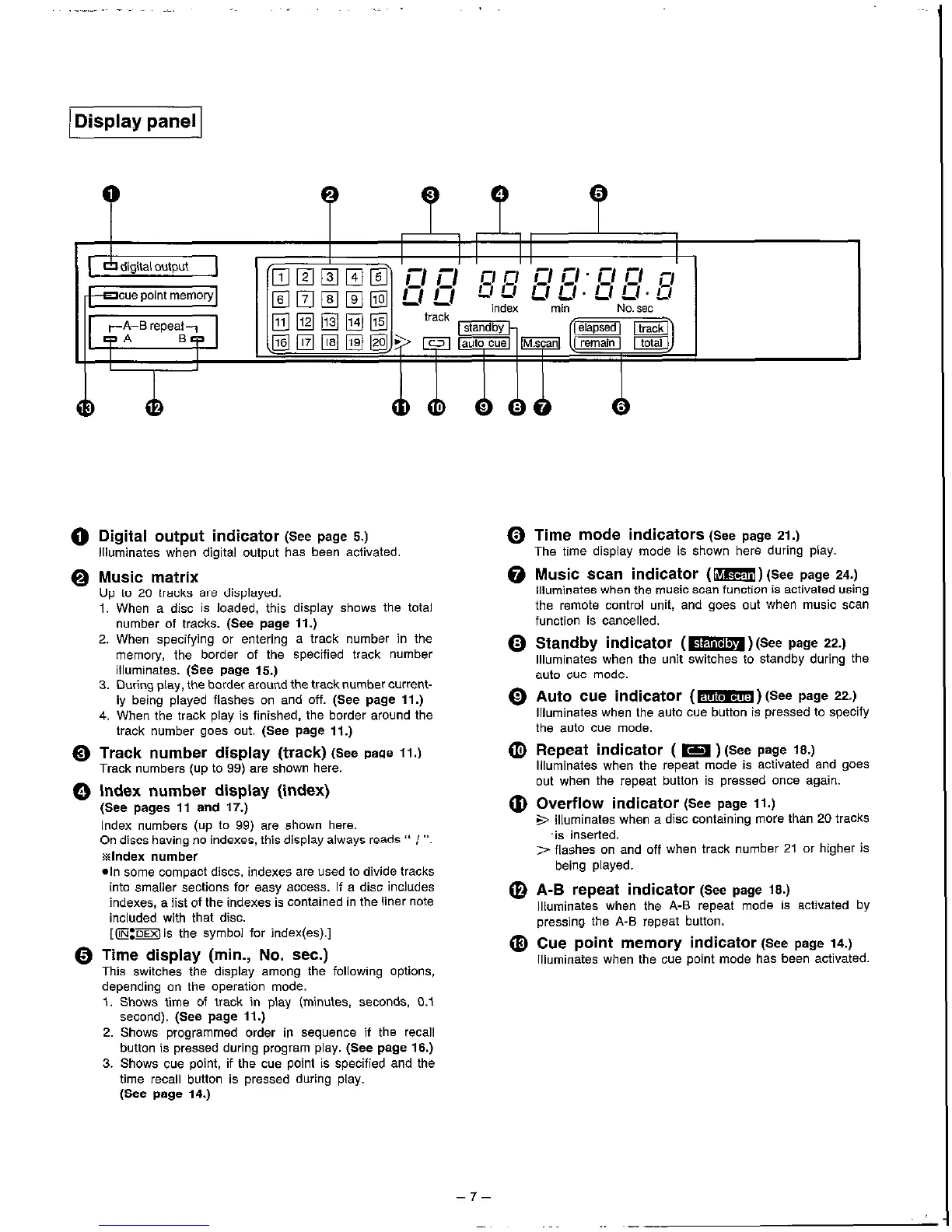

IDisplay
P
P P
I
I I I
I I
I
-23 digital output
I
-acue point memory
index min
0 Digital output indicator (See page 5.)
illuminates when digital output has been activated.
@ Music matrix
Up to 20 tracks are displayed.
1. When a disc is loaded, this display shows the total
number of tracks. (See page 11.)
2. When specifying or entering a track number in the
memory, the border of the specified track number
illuminates. (See page 15.)
3. During play, the border around the tracknumber current-
ly being played flashes on and off. (See page 11.)
4. When the track play is finished, the border around the
track number goes out. (See page 11.)
0 Track number display (track) (See page 11.)
Track numbers (up to 99) are shown here.
0 Index number display (index)
(See pages 11 and 17.)
Index numbers (up to 99) are shown here.
On discs having no indexes, this display always reads “ : “.
slndex number
*In some compact discs, indexes are used to divide tracks
into smaller sections for easy access. If a disc includes
indexes, a list of the indexes is contained in the liner note
included with that disc.
[t.K:mis the symbol for index(es).]
0 Time display (min., No. sec.)
This switchee the display among the following options,
depending on the operation mode.
1. Shows time of track in play (minutes, seconds. 0.1
second). (See page 11.)
2. Shows programmed order in sequence if the recall
button is pressed during program play. (See page 16.)
3. Shows cue point, if the cue point is specified and the
time recall button is pressed during play.
(See page 14.)
0 Time mode indicators (see page 21.)
The time display mode is shown here during play.
@ Music scan indicator (m)(see page 24.)
tltuminetes when the music ecan function is activated using
the remote control unit, and goes out when music scan
function is cancelled.
0 Standby indicator (m)(See page 22.)
ttluminates when the unit switches to standby during the
auto cue mode.
0 Auto cue indicator (m)(See page 22.)
Illuminates when the auto cue button is pressed to specify
the auto cue mode.
0 Repeat indicator ( m ) (see page 18.)
Illuminates when the repeat mode is activated and goes
out when the repeat button is pressed once again.
@ Overflow indicator (See page 11.)
+ illuminates when a disc containing more than 20 tracks
‘is inserted.
> flashes on and off when track number 21 or higher is
being played.
@ A-B repeat indicator (See page 18.)
Illuminates when the A-S repeat mode is activated by
pressing the A-E repeat button.
@ Cue point memory indicator (see page 14.)
Illuminates when the cue point mode has been activated.
-7-

Technics SL-P1300 Specifications

Power

power supply	AC 60 Hz, 120 V (+5%)
power consumption	35 W
output voltage unbalanced	Nominal 2.5 V (EIAJ)

Audio

frequency response	2-20, 000 Hz+0.2dB
dynamic range	More than 100 dB (EIAJ)
S/N ratio	More than 112 dB (EIAJ)

Weight and Dimensions

dimensions	43x38x16.8 cm
weight	16 kg
remote control dimensions	7.3x18.1x2.2 cm
