If the geo-positioning function is switched on (Point
9.2) you can now turn the antenna to the programmed user
satellite position using the function turn to Sat (Point 9.4.1).
If the geo-positioning function is switched off (Point
9.3.2.2) you must now turn the antenna manually to the
desired satellite position.
9.3.2 Adjusting the satellite antenna
To adjust the antenna for the desired satellite, or to determine
whether the desired satellite can be received at the set
position, a test transponder has been programmed for each
satellite.
The indicators for signal strength and signal quality provided
by this test transponder facilitate the exact positioning of the
antenna.
9.3.2.1 Test transponder/LNC configuration
To change the data of the respective test transponder, pro-
ceed as follows:
> Use the arrow keys to mark the field Current
satellite list.
> Press OK to display the satellite list.
> Use the up/down arrow keys to mark the satellite
position for which you wish to change the data.
> Confirm by pressing OK.
> Now use the arrow keys to mark the field LNC
config. and press OK.
The menu LNC settings will be displayed. (Fig. 9-
12)
> In this menu, enter the data relating to the test trans-
ponder as well as for the LNC used, as described in
Point 6.4.3.
> Press Back to return to the menu for adjusting the
motorised antenna.
9.3.2.2 Manual adjustment of antenna
The optimum adjustment for the desired position can be
made with the help of the displays for signal strength and sig-
nal quality. Adjust the antenna in such a way that both bars
indicated a maximum value.
> Use the up/down arrow keys to mark the field
Save.
> Now use the arrow key right (field East is marked)
resp. left (field West is marked) to turn the antenna to
the desired position. In each case, hold the key
pressed down until the desired position has been
reached.
9.3.2.3 Automatic fine adjustment (Autofocus)
Before storing the satellite position in memory, you should
60

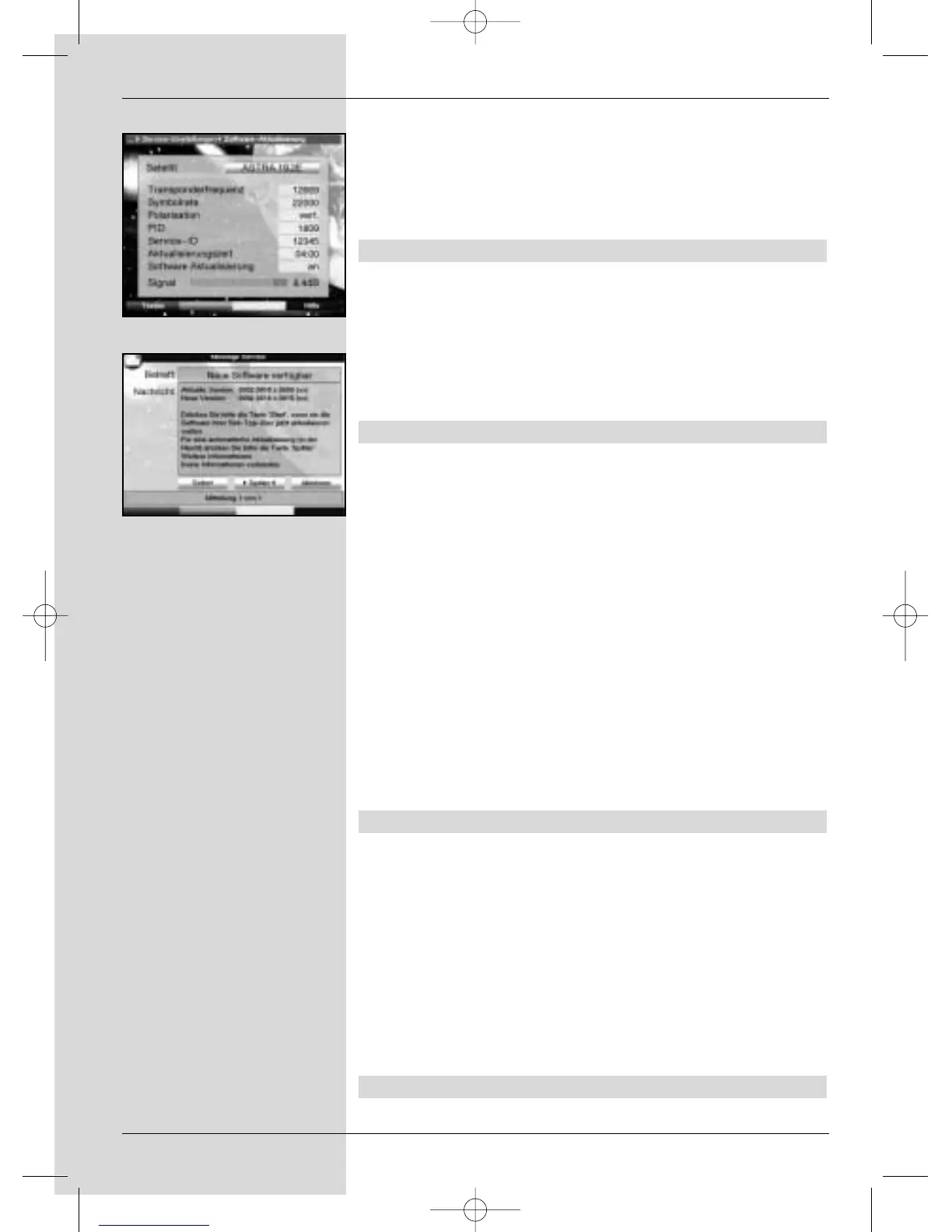

(Fig. 8-24)
(Fig. 8-23)
