TechniSat S1 User Manual

Output impedance 600 Ohm
THD > 60 dB ( 1 kHz )
S/N > 60 dB
Crosstalk < - 65 dB
Input analogue:
Input level l/r 0,5 V r.m.s. (nominal)
Input impedance > 40 kOhm
Volume at switch-on Automatic use of last volume set-
ting
Output digital:
SP/DIF output electrical, cinch socket
optical, Toslink
Dolby Digital AC3
Video parameters:
Output:
Output level FBAS 1 Vs-s +/- 0.3 dB into 75 Ohms
Output level Y 1 Vs-s +/- 0.3 dB into 75 Ohms
Output level C 1 Vs-s +/- 0.3 dB into 75 Ohm
Output level RED 0,7 Vs-s +/- 0.1Vp-p into 75 Ohms
Output level GREEN0,7 Vs-s +/- 0.1Vp-p into 75 Ohms
Output level BLUE 0,7 Vs-s +/- 0.1Vp-p into 75 Ohms
S/N loaded > 60 dB
Video text
Teletext filtering corresponding to ETS 300 472
Standard
Download Teletext data (FBAS) corresponding to ITU-R
BT.653-2 lines: 6-22 and 320-335
Soft video text 800 pages memory
TV SCART:
Output: FBAS or RGB
VCR SCART:
Input: FBAS
Output: FBAS
Video Cinch:
Output FBAS
S-VHS Hosiden socket:
Output Y signal (luminance),
C signal (chrominance)
Hard drive:
Hard drive type 3,5 inch
Capacity 40 GB (Standard)
Hard drive control provided for 20 to 120 GB
No. of recordings 1000 (max.)
Display:
Vacuum fluorescence 16 digit, 5x7 point matrix, 7 mm
symbol height
Serial interface RS 232:
Type RS 232, bidirectional
Bit rate 115,2 kBit/s max.
Connection D-SUB socket, 9 pin
66

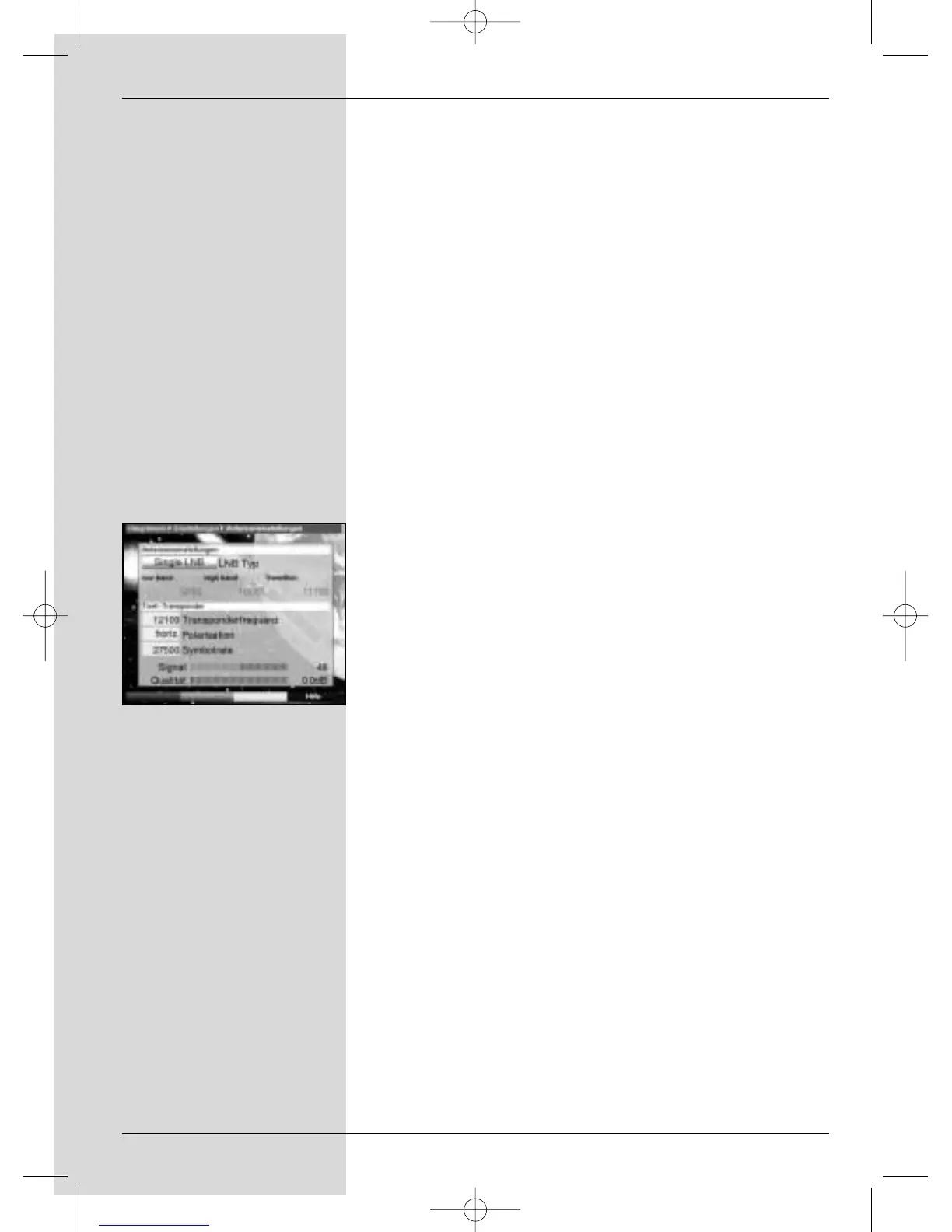

(Fig. 9-12)
Bed_anl_.qxd 20.02.04 16:29 Seite 66
