TechniSat S1 User Manual

Function Update for operating software and pre-pro-
gramming
LNC power supply:
LNC power 400 mA max.; double insula
ted
LNC voltage vertical <14,0V no load, > 11,5 V at 400
mA
LNC voltage horizontal < 20 V no load, > 17,2 V at 400
mA
LNC switched off in standby mode
22 kHz modulation: 22 kHz, Amplitude 0.6 V +/- 0.2 V
Programme memory/satellite positions:
No. of programmes Favourites list TV:
999 TV programmes
No. of programmes Favourites list Radio:
999 Radio programmes
Number of programmes:
Total list TV/Radio: In total 6000 programmes can be
stored in the Total list
DiSEqC:
DiSEqC 1.0 and DiSEqC 1.2
SFI data:
SFI preview: maximum 7 days in advance
Timer:
Events: maximum 124 events, one year in advance
Remote control system: RC-5
Subsystem address 8 (SAT 1), 10 (SAT 2)
Modulation frequency 36 kHz
Infrared wavelength 950 nm
Power supply:
Mains adapter:
Power requirement:
10 W in standby mode
16 W in operation, excl. LNC
23 W recording mode, excl. LNC
32 W recording mode / 400mA LNC cur-
rent
Nominal voltage:
230 V / 50 Hz alternating current
Input voltage:
180 V.... 250 V / 50 Hz alternating current
General:
Dimensions (WxDxH): 370 mm x 220 mm x 65 mm
Weight: approx. 2,7 kg
12 Troubleshooting guide
13 Annexure
67

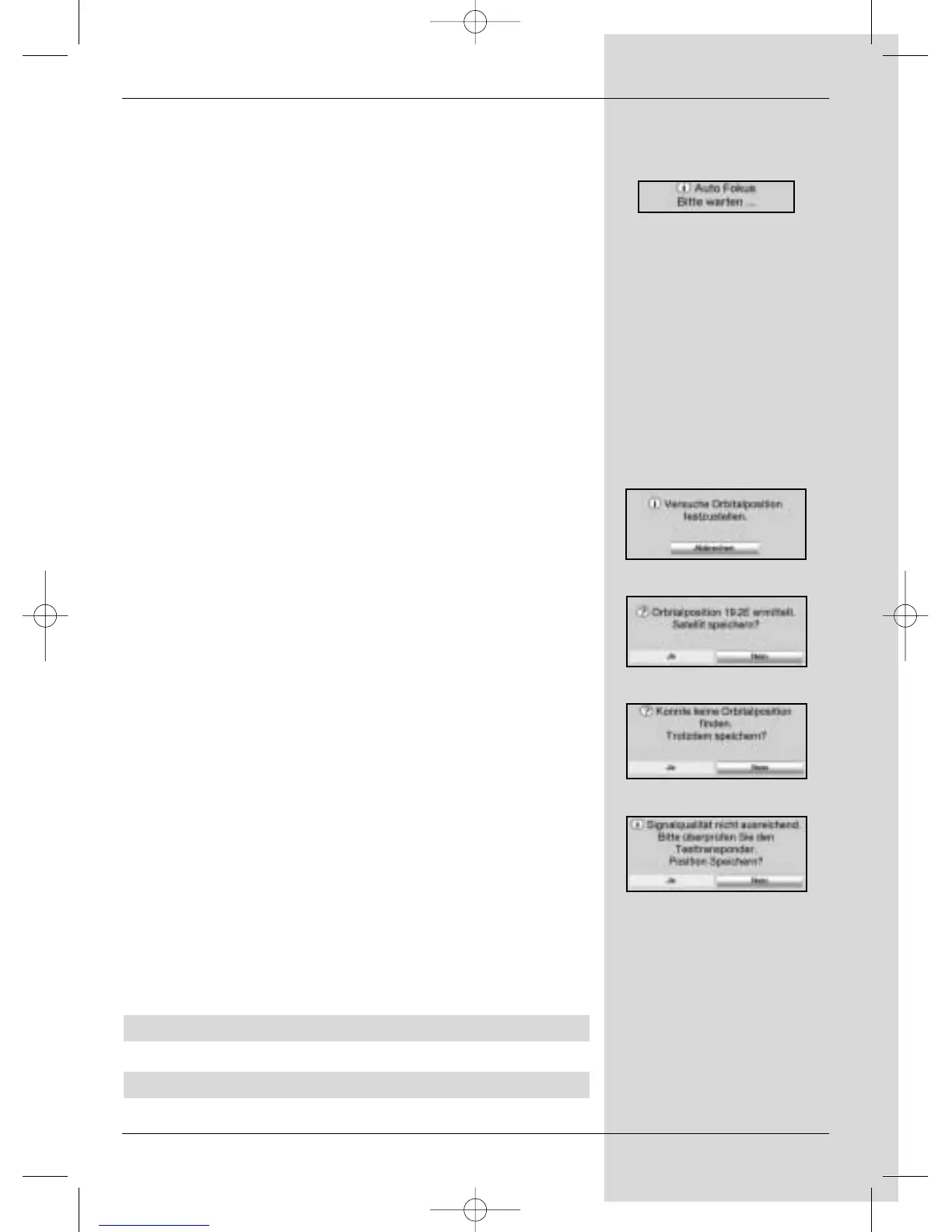

(Fig. 9-16)
(Fig. 9-17)
(Fig. 9-14)
(Fig. 9-15)
(Fig. 9-13)
