4.4 Using the 4th Axis
Rotary Setup
SomeTitanmachinesareequippedwitha4thaxisrotarytables.Thesemachineshavetrue4
axes control for CNC operations.
Onthesemachines,therotaryaxisisreferredtoasthe“B”axis.Itsaxisofrotationisparallelto
the Y axis.

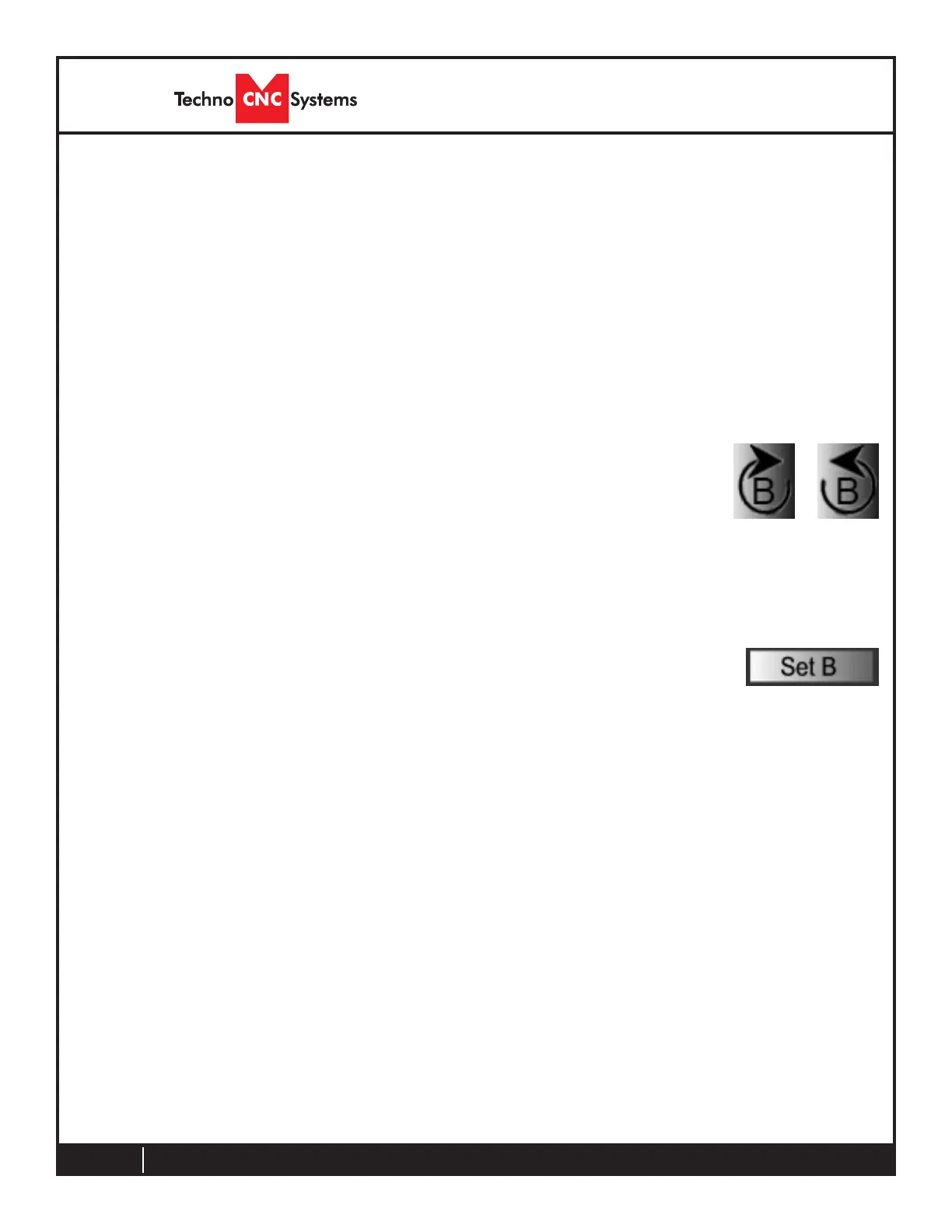

Theaxiscanbecontrolledthroughthe“B-Clockwise”andB-Counter-Clockwise”buttons.
These buttons will allow the operator to rotate the B axis so that the B-axis origin can be set.
Once the bit is at the location for the B-axis origin (top of stock or middle of stock), the
operatorcanpressthe“SetB”button.Thiswillplacethe“GreenBox”nexttotheBaxis
cooridnates indicating that the origin has been set.
The coordinates will now read 0.000
