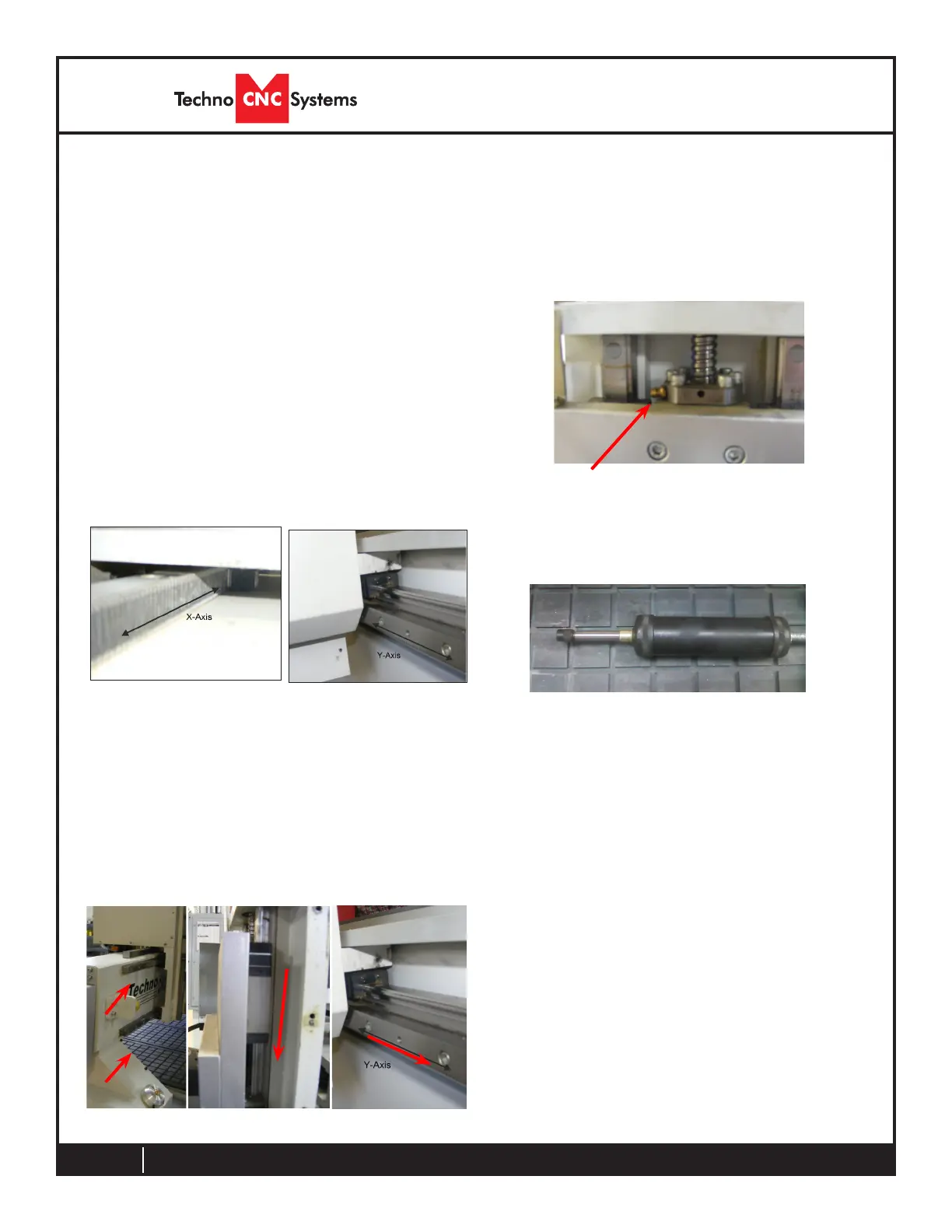

7.1 Lubricating the X-Y Rack and Pinion.
Lubrication is important with rack and pinion
gearingsystems.Athinlmofgreaseshould
alwaysbepresentonthecontactingtoothanksto
minimize metal to metal contact.
Lithium grease lubrication is recommend over oil, as
theoillubricationwillowawayfromtoothanks.
The grease should be applied to the rails at regular
intervals, depending on the usage of the machine.
Use a small brush to coat both rails on the side of
the Y-axis and the single rail across the X-axis. Fig
5.1
Fig 5.1
7.2 Lubricating the X-Y-Z Rails
The rail carriage bearings are sealed and
protected with wipers. The rails should be
lightly oiled to allow smooth operation. Avoid
a build up of debris on the rails by blowing
them off with air, or wiping them down with
a rag. The rails do not need to be lubricated
as often as the rack, once a month should be
sufcient.
X-Axis Z-Axis
Y-Axis
Fig 5.2
7.3 Lubricating Z Ballscrew
The Z axis uses a ballscrew and ballnut
instead of a Rack and Pinion. The ballnut
has a nipple for applying lubrication to the
mechanism. Fig 5.3a
Fig 5.3a
Lubrication
Point.
Lithium grease is pumped into the lubrica-
tion point with the application gun provided
with the machine. Fig 5.3b
Fig 5.3b
7.4 Recommended Lubricants.
Lithium Based Grease:
Alvania Grease No. 2(Shell)
orEquivalent.
Techno Part No.
H90Z00-8670T8
Oil:
Vactra No. 2s(mobile)
TonnerOilorEquivalent.
Techno Part No.
H90200-LUBE002
Oil and Grease Kit:
Techno Part No.
H90Z00-LUBEKIT2
NOTE: AVOID A BUILD UP OF DEBRIS ON
MOVING PARTS. CLEAN OFF ANY DEBRIS
TO AVOID DAMAGING THE
MACHINE.
