Technogym Skillmill - 7.14 ANGLE SENSOR

7.14 ANGLE SENSOR
7.14.1 DISASSEMBLING THE ANGLE SENSOR BOARD
1. Remove 4 slats as explained in paragraph “7.9.1 Disassembling the slats”.
2. Rotate the belt until you can see the angle sensor board positioned to the right in the inside
of the frame, in the front.
3. From the internal part of the equipment, remove the angle sensor support plate, removing
the two screws (1) and (2):
1
2

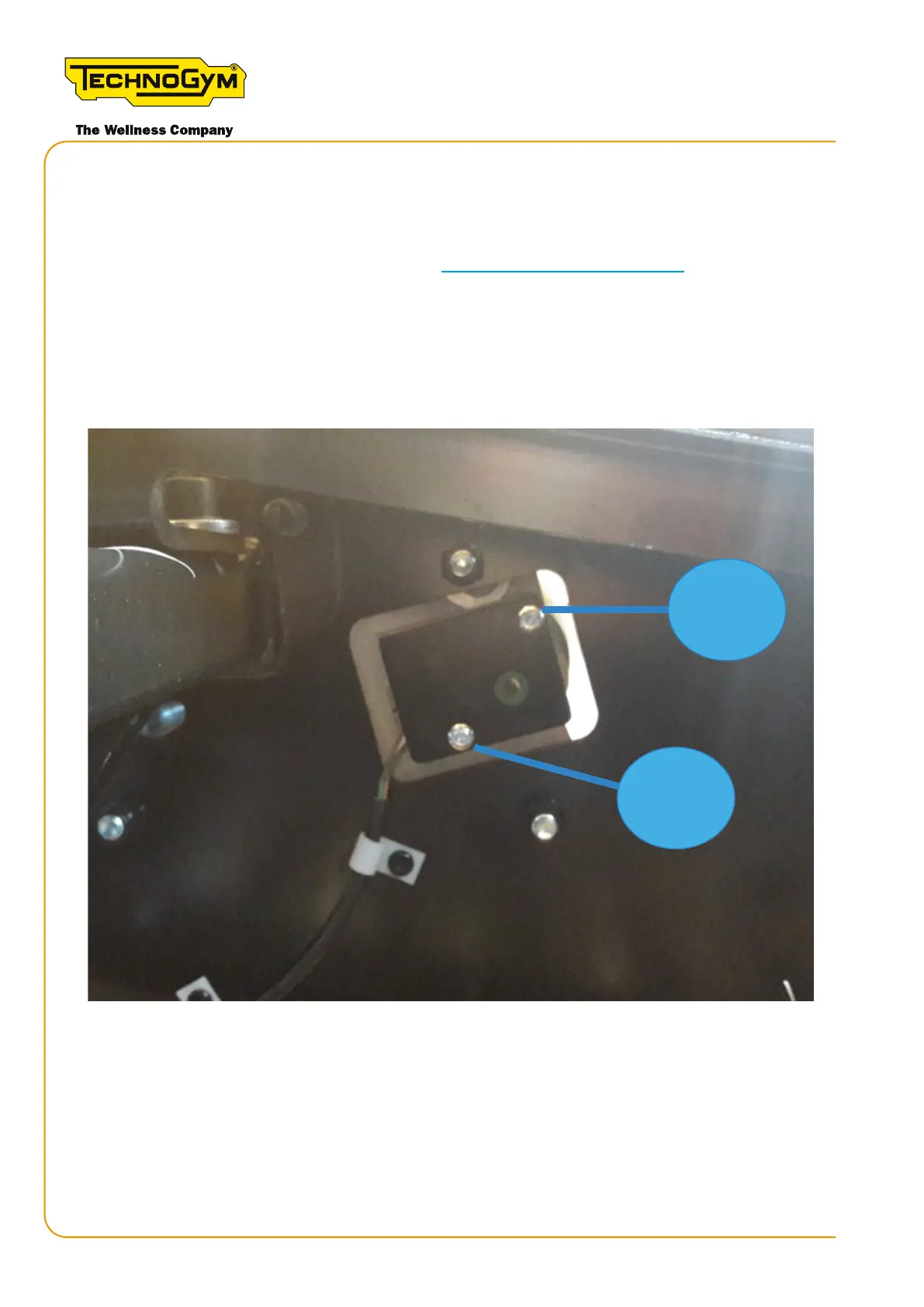

Figure 61 - detail of screws (1) and (2) of the angle sensor board
