3a. On the front shaft, measure the distance between the roller unit and the pulley on the
right and left side of the equipment. (TOOL: gauge). The two measurements must be almost equal.
If necessary, correct the positioning of the shaft.

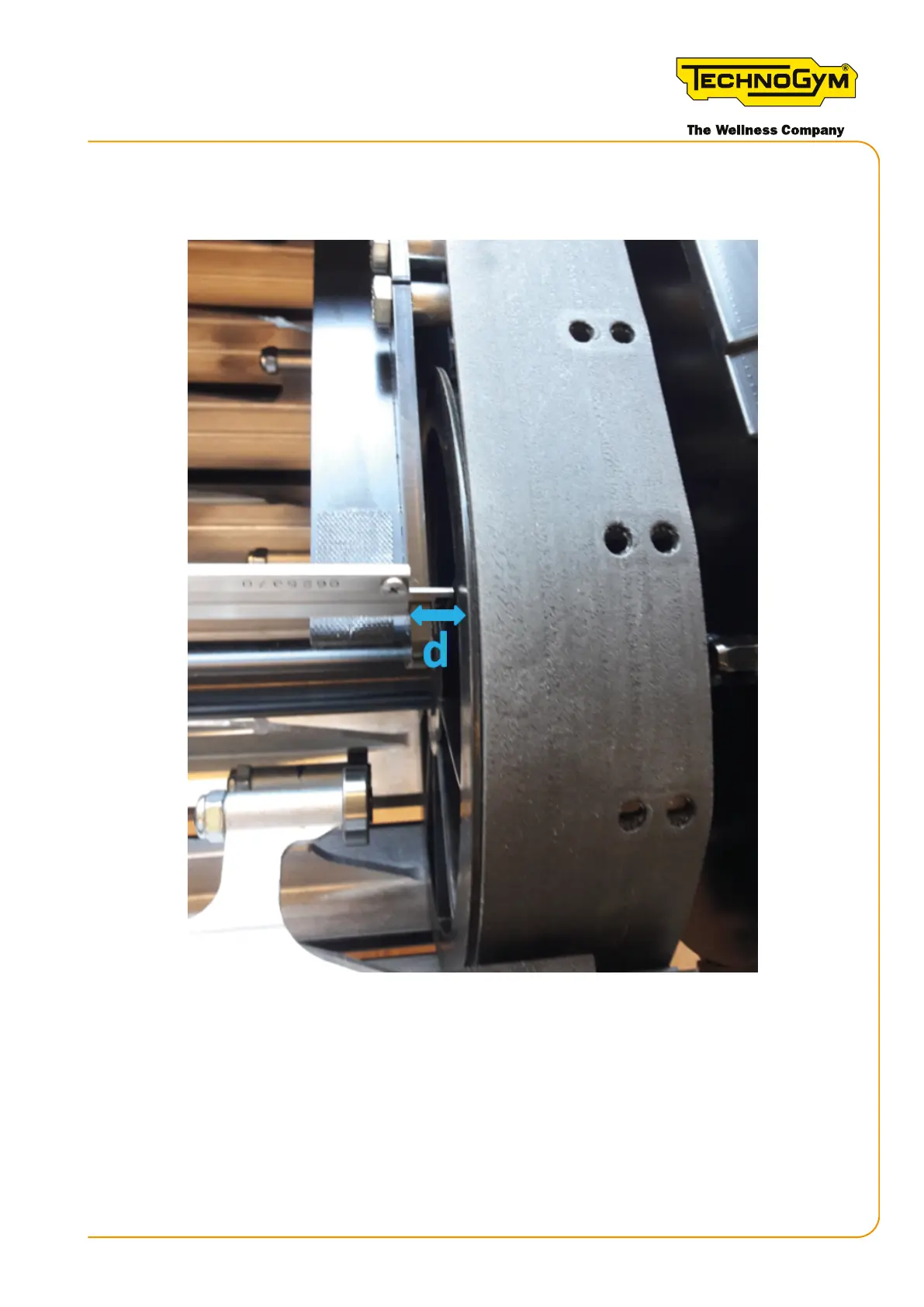

Figure 48 - front shaft reference distance
3b. On the rear shaft, measure the distance between the frame and the pulley on the right
and left side of the equipment. (TOOL: gauge). The two measurements must be almost equal. If
necessary, correct the positioning of the shaft.
Skillmill:
Technical Service Guide - Rev. 3.5
