The welding program should be adjusted for carrying out the first welding spot followed by the
adjustment that allows the achieving of the required current with the starting diameter of the electrodes:
15 kA.
Now the welding process can begin. Current will change according to the programmed increment rule.

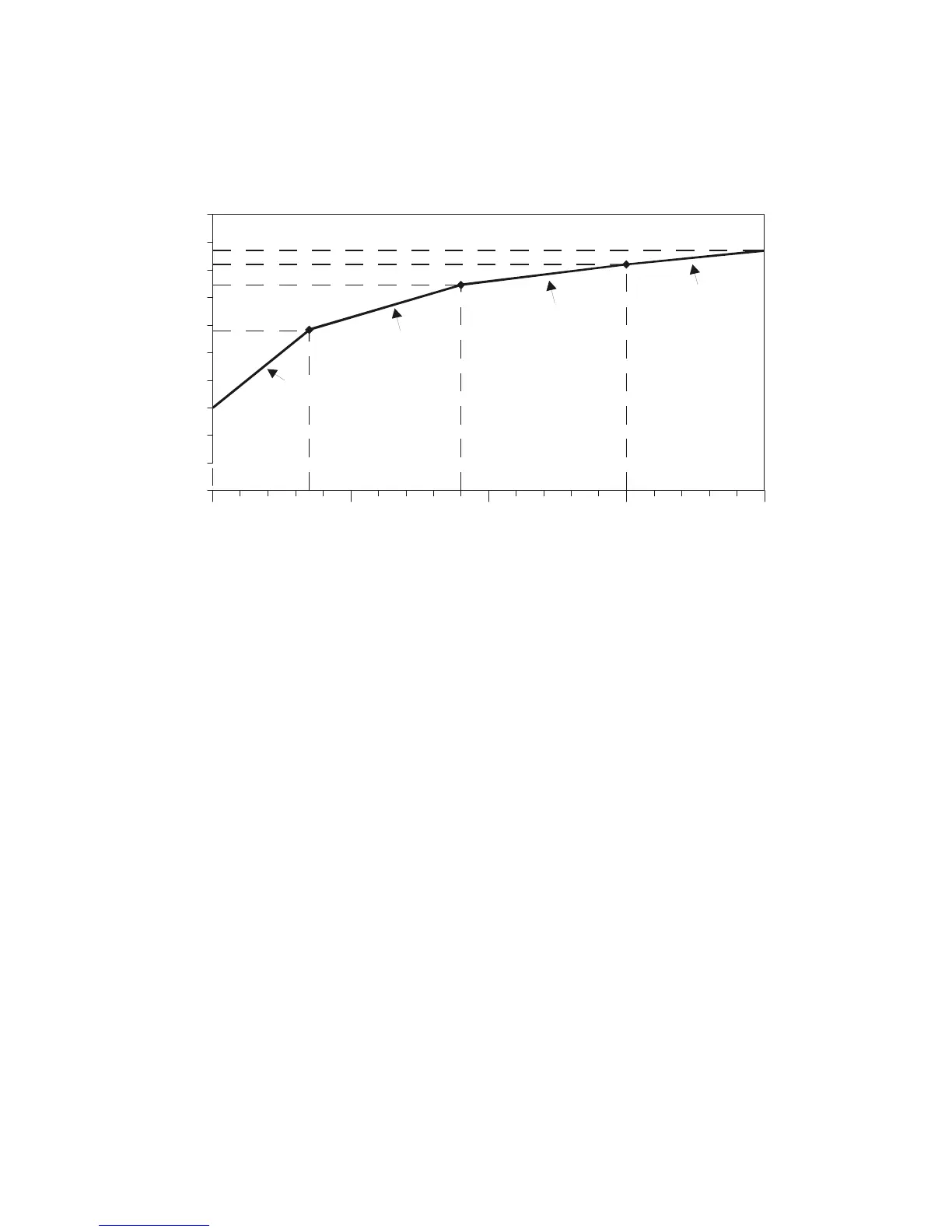

The graph below shows its pattern.
CURRENT (kA
)
NUMBER OF WELDING SPOTS
SEGMENT 1
SEGMENT 2
SEGMENT 3
SEGMENT 4
40003000200010000
15
14
13
16
17
18
19
20
21
22
17.8 kA
19.5 kA
20.2 kA
20.7 kA
700
1800 3000
