The TE500 work cycle is set by the user by adjusting the programming parameters. These parameters
indicate the operating times and the current adjustments characterizing the work cycle when carried out
consecutively.

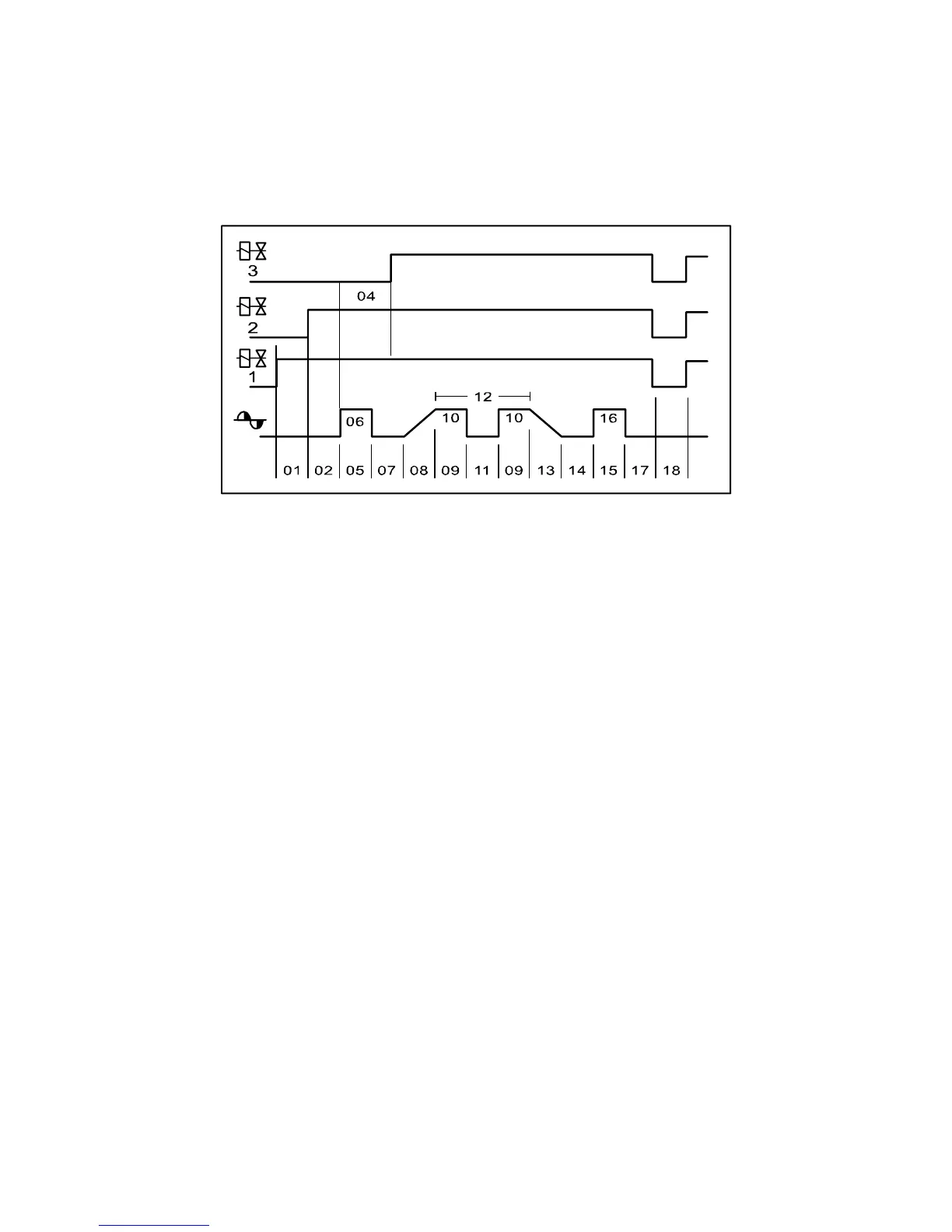

The following chart shows the sequence in which the programmed functions are carried out.
DESCRIPTION OF THE WORK CYCLE
The aforesaid numbers refer to the programming parameters described in the "Programming" Menu
paragraph.
For safety reasons, the microprocessor does not start the welding cycle if the
start cycle device is activated when switching on the welder; release it and
restart it.
Any microinterruptions or excessive voltage drops will stop the control unit
and do not alter the operation; to reset the operation, turn the machine off and
then turn it on again.
