55
Parameter
Name & Function Default Unit
Setting
Range
Control
Mode
Communication
Address
RS232 RS485
Cn027
Analog monitor output 1, Offset adjustment
0
x40
mV
-250
│
250
ALL C03H 001BH

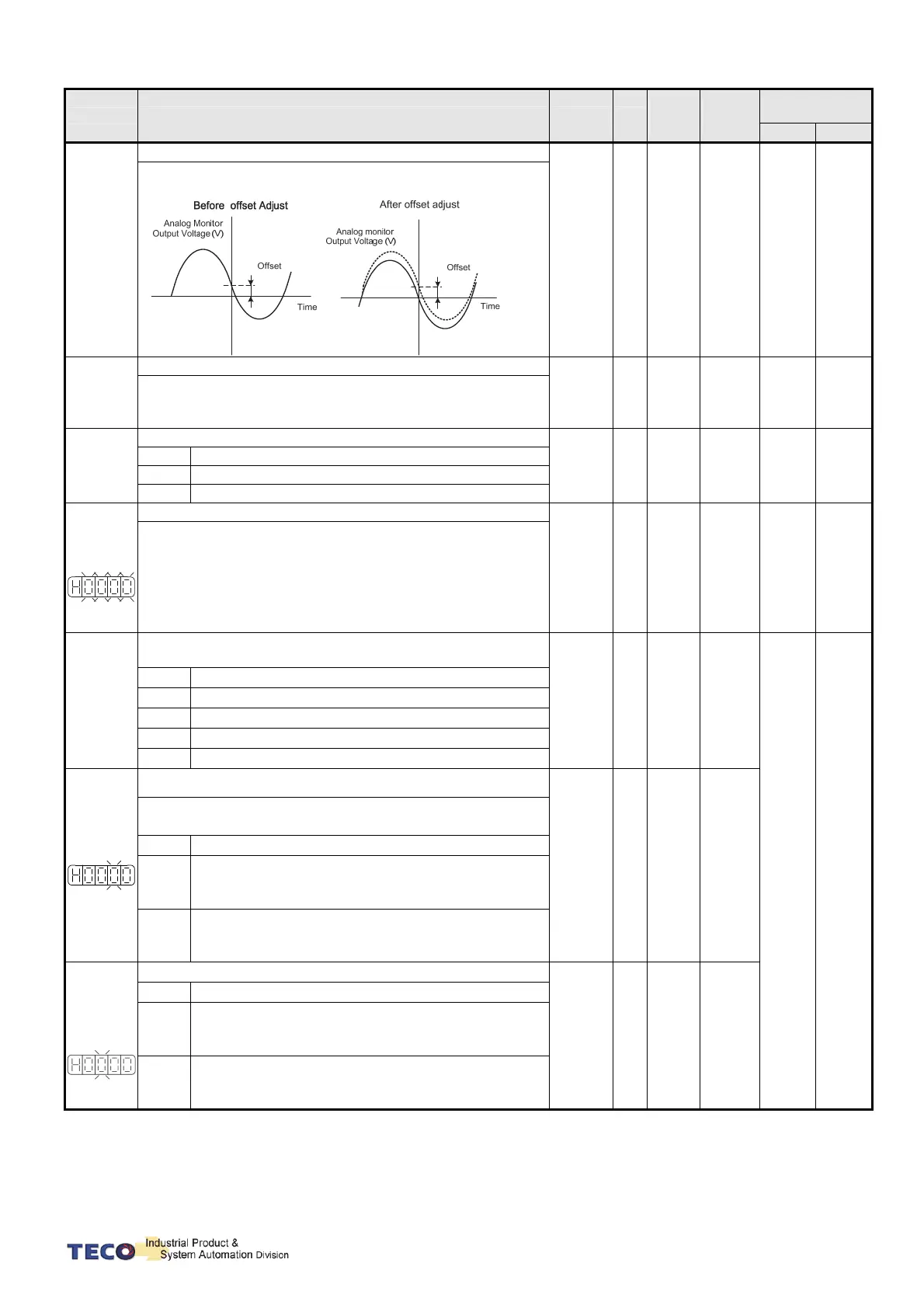

Analog monitor output zero offset can be adjusted by
parameter. Cn027 as below.
Cn028
Analog monitor output 2, offset adjustment
0
x40
mV
-250
│
250
ALL C04H 001CH
Analog monitor output 2, zero offset can be adjusted by
parameter. Cn028.
See diagram for Monitor 1 above.
★
Cn029
Reset parameters.
0 X
0
│
1
ALL 5FDH 001DH
Setting Explanation
0 Disabled
1 Reset all Parameters to default ( Factory setting)
★
●
Cn030
Servo motor model code
Default X X ALL 50BH 001EH
Servo model code can be display and checked with parameter
dn-08, refer 3-2-2 dn-08 table for more information.
Attention：Before operate your servo motor., check this
parameter setting is compatible for servo drive and motor. If
there has any incompatible problem contact supplier for more
information.
Cn031.0
Cooling fan running modes
(Available forJSDAP-50A3/75A3/100A3/200A3/300A3)
0 X
0
│
3
ALL
50EH 001FH
Setting Explanation
0 Auto-run by internal temperature sensor.
1 Run when Servo ON
2 Always Running.
3 Disabled.
Cn031.1
Low Voltage Protection(AL-01) auto-reset selection
0 X
0
│
1
ALL
This parameter(AL-01) could be set the method of Low
Voltage Protection.
Setting Explanation
0
As servo on, it shows AL-01 low voltage alarm
immediately when it detect low voltage, and after
eliminating the situation, to reset it, servo off is a must.
1
It shows BB(baseblock) immediately when it detect low
voltage, and after eliminating the situation, drive would
be auto-reset and displayed Run.
●
Cn031.2
Absolute Encoder Battery Fault
ABS
encoder
= 0
others =
1
X
0
│
1
ALL
Setting Explanation
0
When battery fault occurs, driver can not be memory
absolute position, AL-16 displayed and motor operates
continuous.
1
When battery fault occurs, driver can not be memory
absolute position, AL-16 do not display and motor
stopped.
