N3 Drive Operations Manual
Appendix C - N3 Dimensions & Weights C1

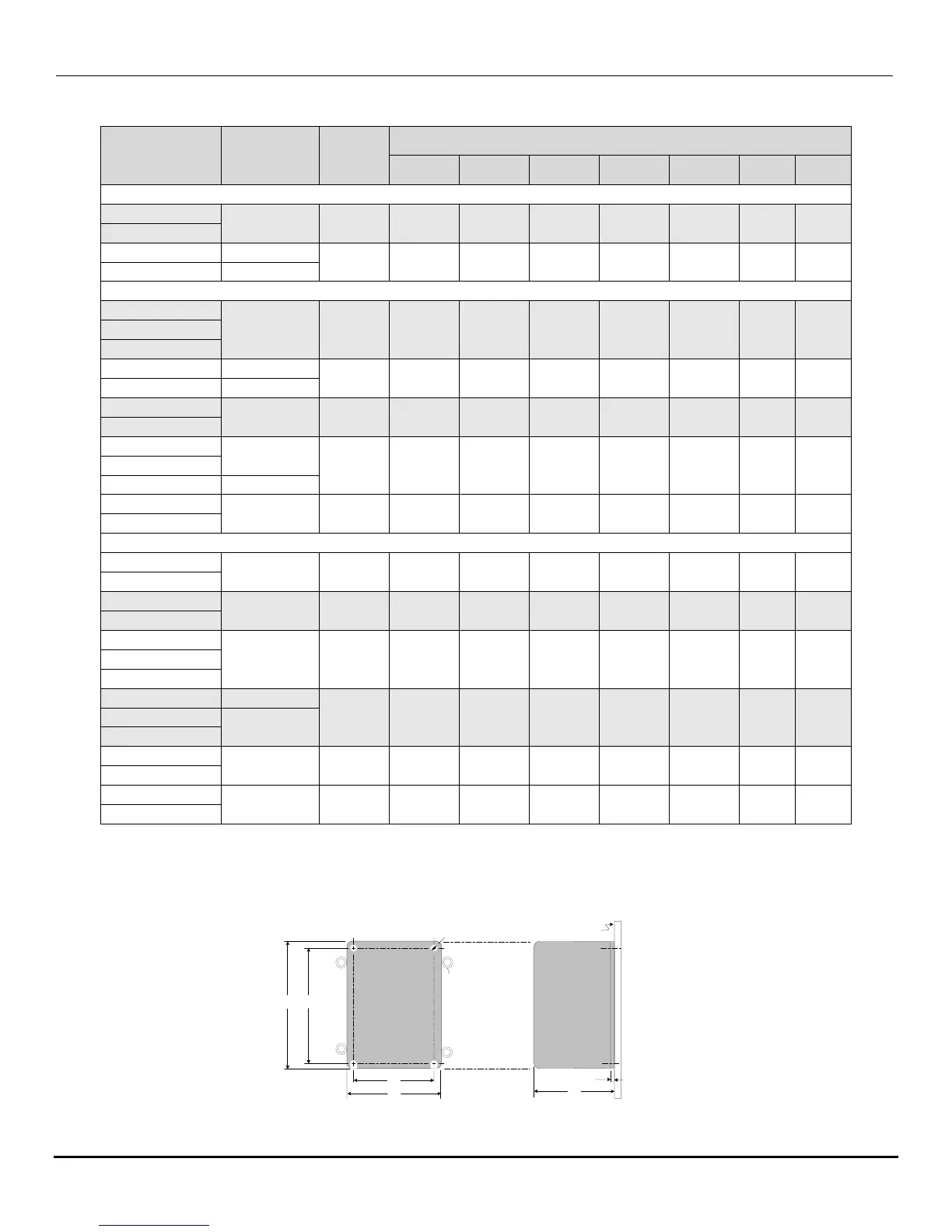

Appendix C – Table C - N3 Envelope Dimensions and Weights vs Model No.
H
a
b
W
D
( Qty 4)
c
Mounting
surface
N3
N3
Note:
Frame Sizes 5 & 6 have (4)
1.5 in. / 38 mm Dia. handling
hooks
Fig. AC.1 N3 Envelope Dimensional Information
Model No.
Approx.
Wt.
Lbs. / Kg
Frame
Size
Envelope Dimensions - Inches / ( mm )
H
W
D
a
b
c
m
230V 1 Phase Input
N3 – 2P5 - CS
3 / 1.36
1
6.42
(163)
3.54
(90)
5.79
(147)
5.9
(150)
3.07
(78)
0.28
(7)
0.22
(5.5)
N3 – 201 - CS
N3 – 202 - CS
4 / 1.81
2
7.36
(187.1)
5.04
(128)
5.83
(148)
6.71
(170.5)
4.51
(114.6)
0.28
(7)
0.22
(5.5)
N3 – 203 - CS
5 / 2.27
230V 3-Phase Input
N3 – 2P5 - C
3 / 1.36
1
6.42
(163)
3.54
(90)
5.79
(147)
5.9
(150)
3.07
(78)
0.28
(7)
0.22
(5.5)
N3 – 201 - C
N3 – 202 - C
N3 – 203 - C
4 / 1.81
2
7.36
(187.1)
5.04
(128)
5.83
(148)
6.71
(170.5)
4.51
(114.6)
0.28
(7)
0.22
(5.5)
N3 – 205 - C
5 / 2.27
N3 – 207 - C
13 / 5.9
3
10.24
(260)
7.32
(186)
7.68
(195)
9.61
(244)
6.81
(173)
X
0.22
(5.5)
N3 – 210 - C
N3 – 215 – N1
27 / 12.25
4
14.2
(360)
10.4
(265)
9.7
(247.5)
13.4
(340)
9.6
(245)
X
0.3
(7.0)
N3 – 220 – N1
N3 – 225 – N1
29 / 13.15
N3 – 230 – N1
67.0
(30.9)
5
25.5
(647.6)
10.7
(272.6)
10.4
(263.5)
20.9
(530)
8.3
(210)
X
0.4
(10)
N3 – 240 – N1
460V 3-Phase Input
N3 – 401 – C
3 / 1.36
1
6.42
(163)
3.54
(90)
5.79
(147)
5.9
(150)
3.07
(78)
0.28
(7)
0.22
(5.5)
N3 – 402 – C
N3 – 403 – C
4 / 1.81
2
7.36
(187.1)
5.04
(128)
5.83
(148)
6.71
(170.5)
4.51
(114.6)
0.28
(7)
0.22
(5.5)
N3 – 405 – C
N3 – 407 – C
13 / 5.9
3
10.24
(260)
7.32
(186)
7.68
(195)
9.61
(244)
6.81
(173)
X
0.22
(5.5)
N3 – 410 – C
N3 – 415 – C
N3 – 420 – N1
27 / 12.25
4
14.2
(360)
10.4
(265)
9.7
(247.5)
13.4
(340)
9.6
(245)
X
0.3
(7.0)
N3 – 425 – N1
29 / 13.15
N3 – 430 – N1
N3 – 440 – N1
67 / 30.89
5
25.5
(647.6)
10.7
(272.6)
10.4
(263.5)
20.9
(530)
8.3
(210)
X
0.4
(10)
N3 – 450 – N1
N3 – 460 – N1
102 / 46.27
6
29.6
(751.9)
12.3
(312.4)
10.5
(265.9)
24.8
(630)
9.8
(250)
X
0.4
(10)
N3 – 475 – N1
