TECO N3 Series - AE.3 JUN Type

N3 Drive Operations Manual
Appendix E- EMC Dimensions, JUN Type Filter E3
L1 L2
L3
L1 L2
L3
LINE
LOAD
PE
PE
3.94 / 100
1.97 / 50
8.86 / 225
9.84 / 250
2.76 / 70
JUNF34048S-MA
* in. / mm
(4) 0.26 / 6.5
Mounting Slots

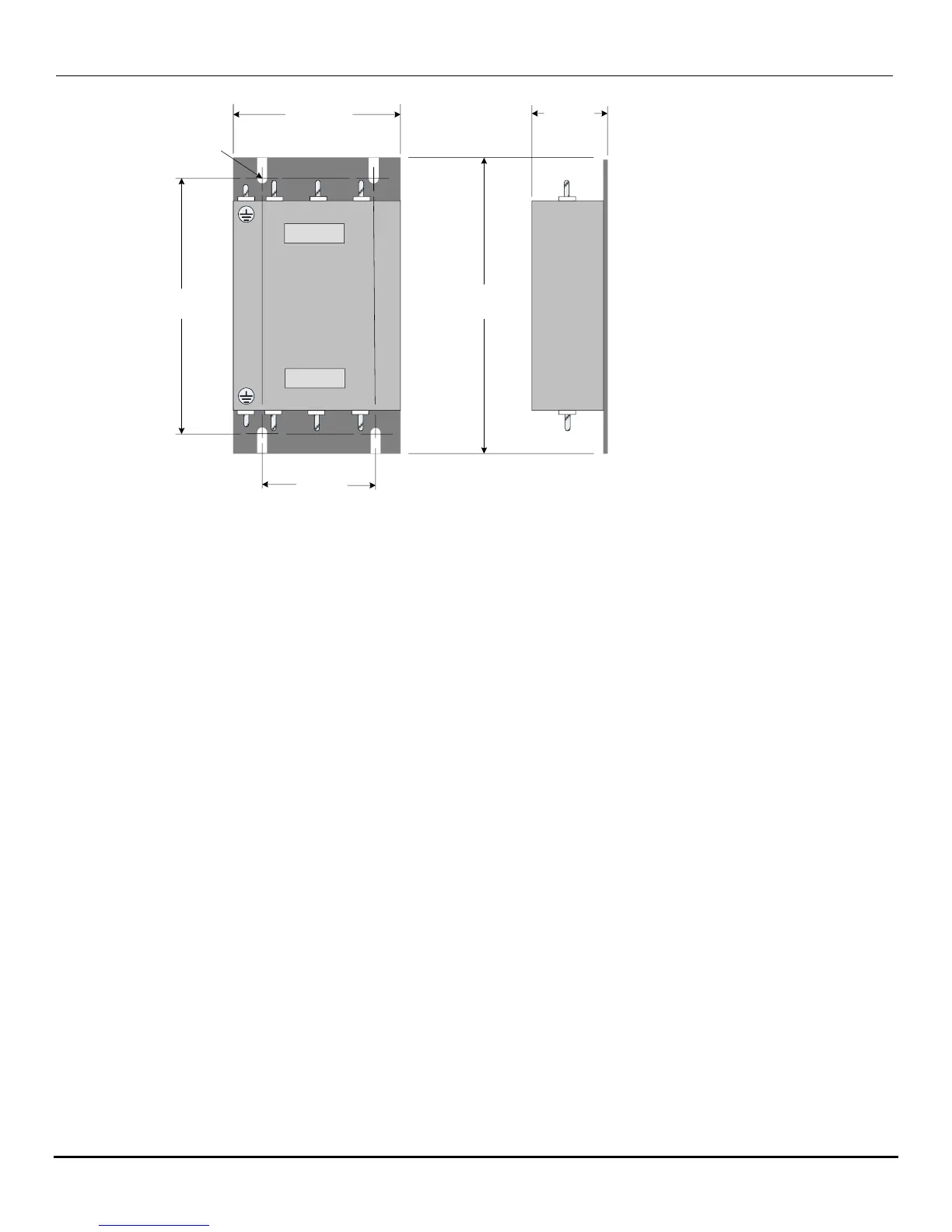

Fig. AE.3 JUN Type Filter
NOTES:
