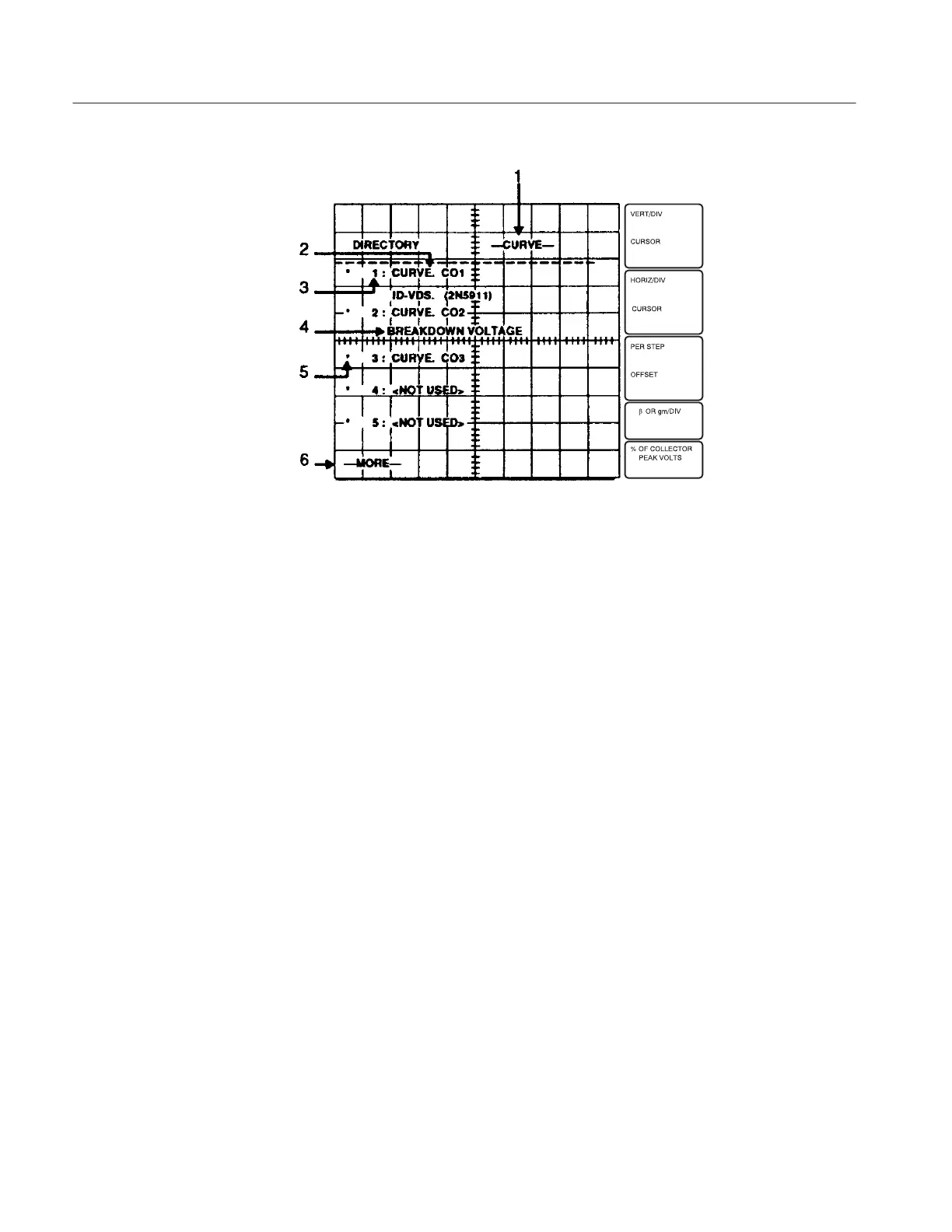

Figure 3-24: Directory Display
1. Data Type (CURVE or SETUP)
The directory displayed is for files containing characteristic curve data
(CURVE) or for files containing front panel setting data (SETUP).
2. Filename (CURVE.CXX or SETUP.SXX)
The names of stored files containing characteristic curve data or front panel
setting data are shown. For filename specifications refer to the section below
on “Data Files”.
3. Index Number (1 to 80)
This indicates the memory location at which the files are stored. Memory
location 1 to 16 are reserved for the non-volatile IC memory, and memory
location 17 to 80 for the floppy disk.
4. Text
This indicates the text stored together with front panel settings or characteris-
tic curve.
5. Asterisk
An asterisk before the index number means that the file is stored in
non-volatile IC memory.
