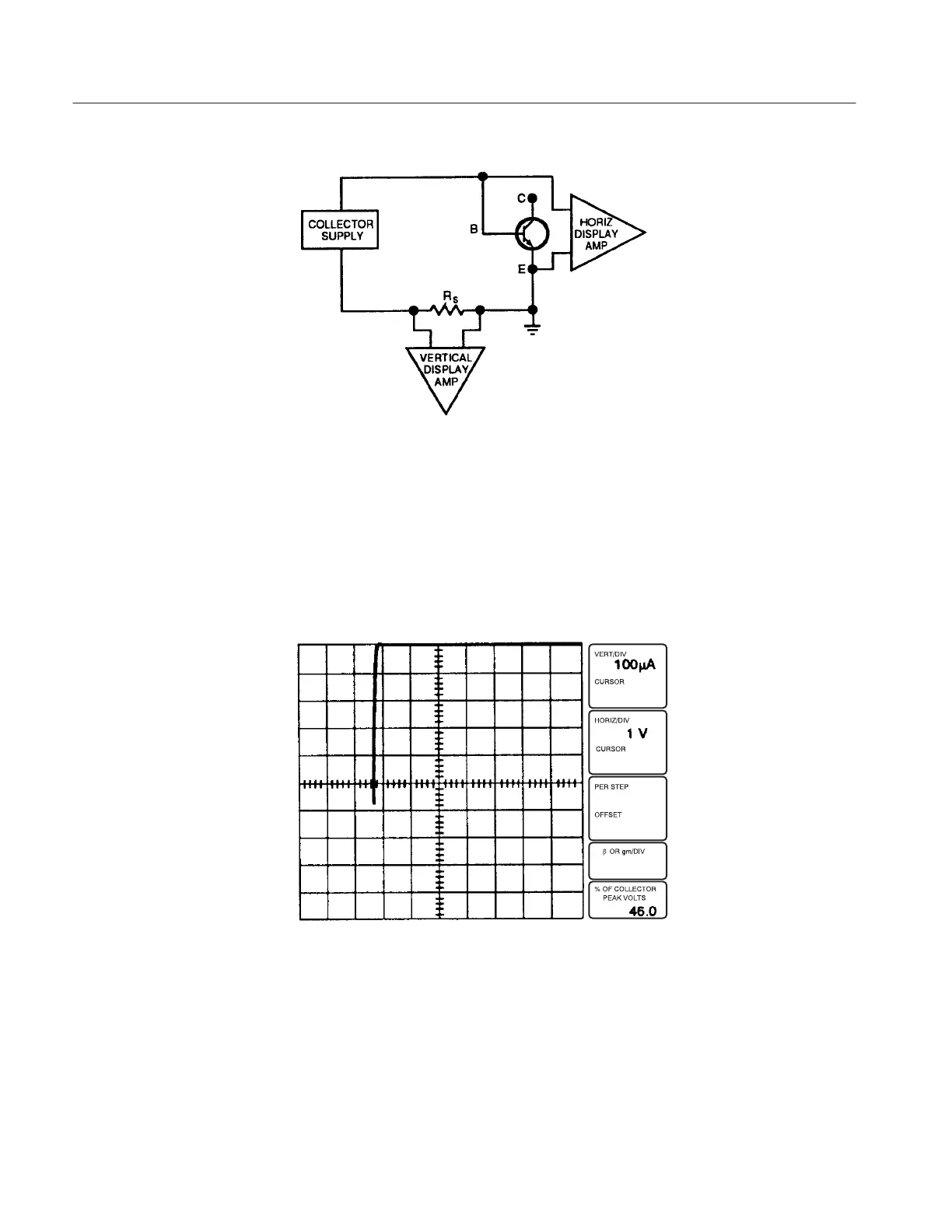

Figure 3-27: Bipolar Transistor OpenĆCollector Configuration
I
EBO
and BV
EBO
Emitter-base leakage current and emitter-base breakdown voltage (collector
open) is measured the same as I
CEO
and BV
CEO
, except that the CONFIGU-
RATION is set to COLLECTOR OPEN and the Collector Supply POLAR-
ITY is set to inverted polarity.
