Reference
3-56
370B User Manual
and reverse the collector supply polarity. This measurement should not be
made on an insulated-gate device.
Control Required Setting
HORIZONTAL COLLECTOR
MAX PEAK POWER WATTS Less than maximum power rating of device.
COLLECTOR SUPPLY POLARITY +
PULSE Set to LONG or SHORT when using high gate voltage or
current
CONFIGURATION EMITTER COMMON
BASE STEP GEN

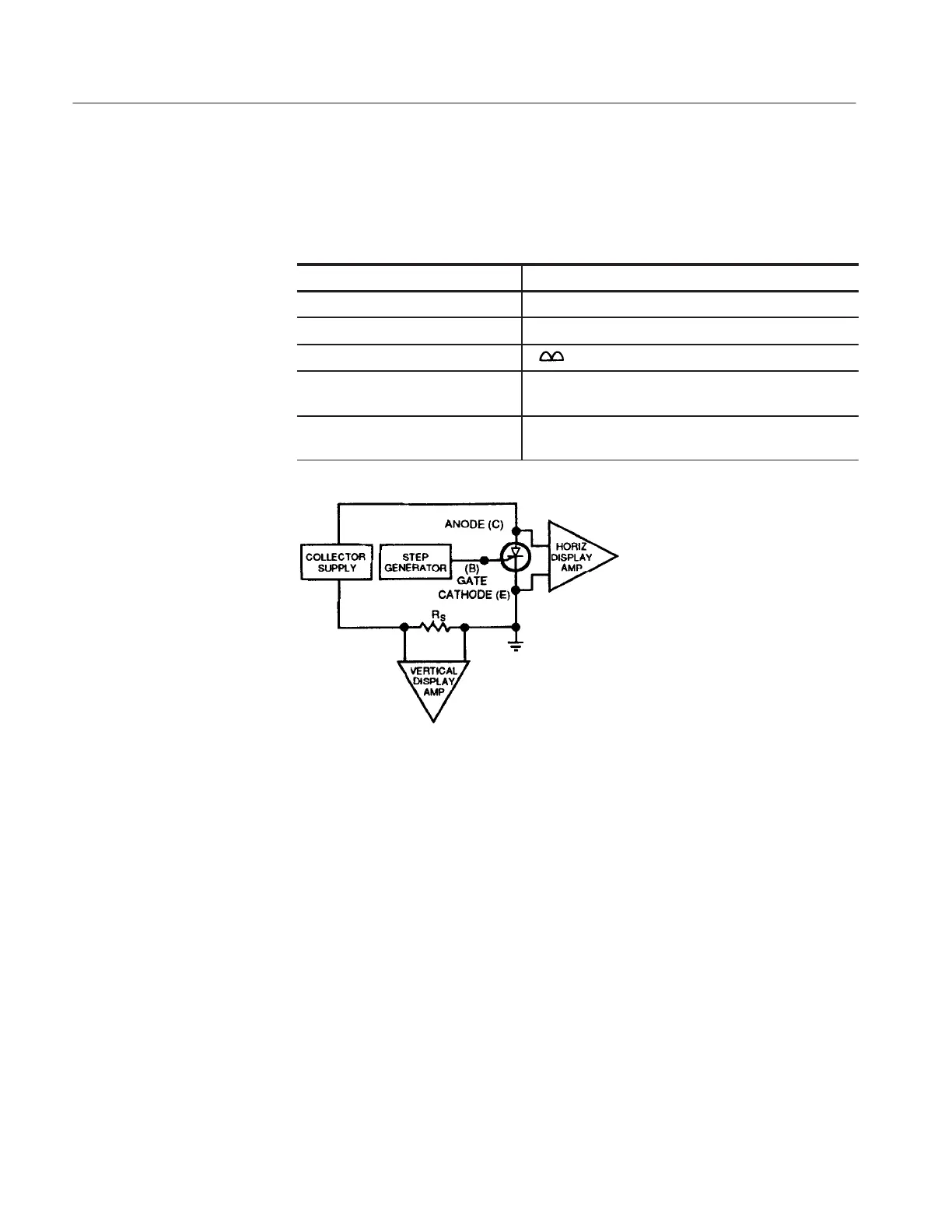

Figure 3-33: SiliconĆcontrolled Rectifier Configuration Diagram
Silicon Controlled
Rectifiers (SCRs)
