Arm-on-A then Trigger-on-B (Horizontal delay on)
Arm on A Trig on B the oscilloscope waits for the A-Event to occur (once), before arming the oscilloscope to trigger on one or
more B-Events.
From the Trig menu, select A - B Trigger Sequence.

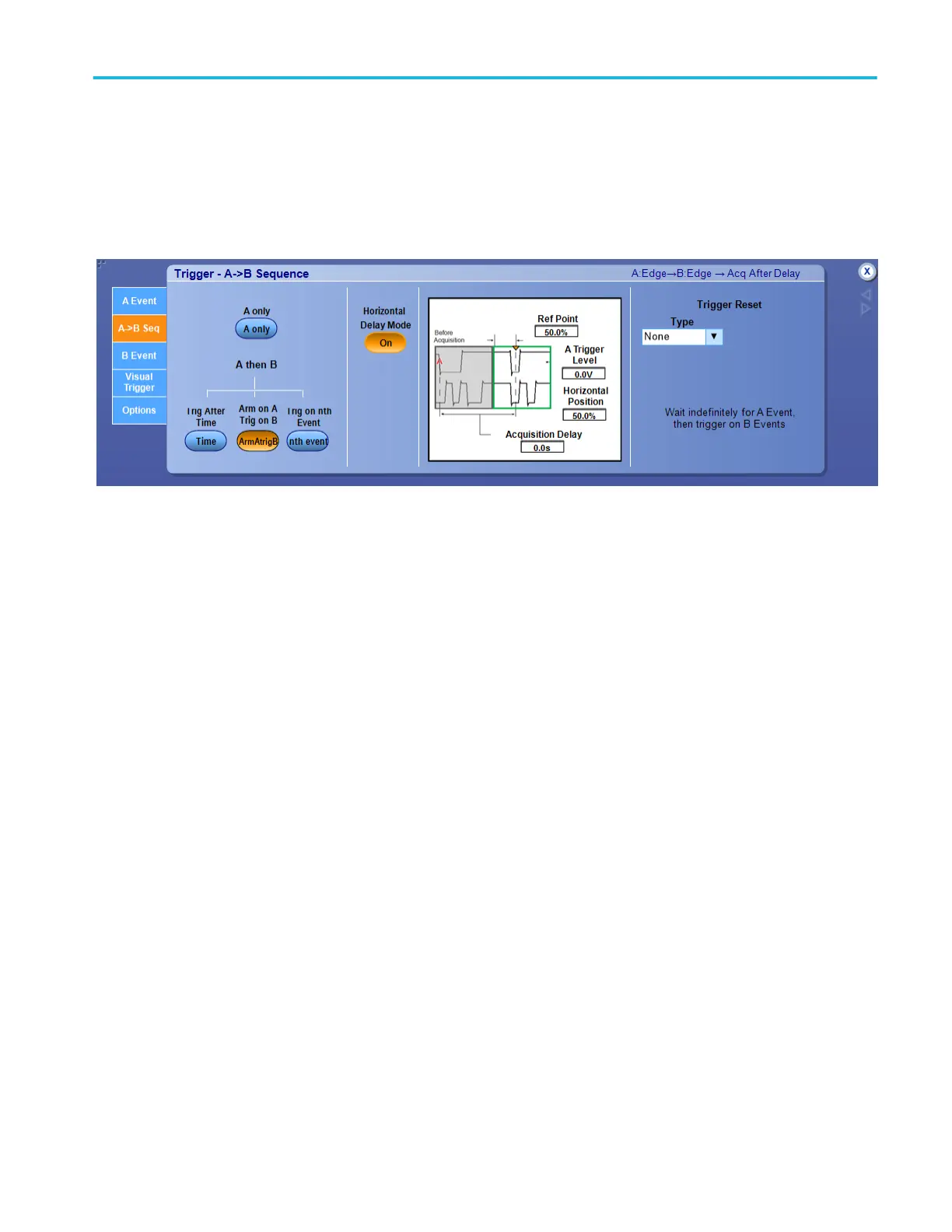

Overview. Use the controls in this window to define the parameters for the A ->B Sequence trigger with Horizontal Delay on.
To use..
1. Set up the A Event and B Events from their individual tabs.
2. Select the A–>B Seq tab; then click Arm on A Trig on B.
3. Set the Horizontal Delay Mode button to On.
4. Use the Acquisition Delay and Reference Point entry boxes to delay the acquisition relative to the A Event trigger.
5. Use the Horizontal position control and B Trig Level controls as necessary.
Pinpoint triggers
DPO70000SX Series User 87
