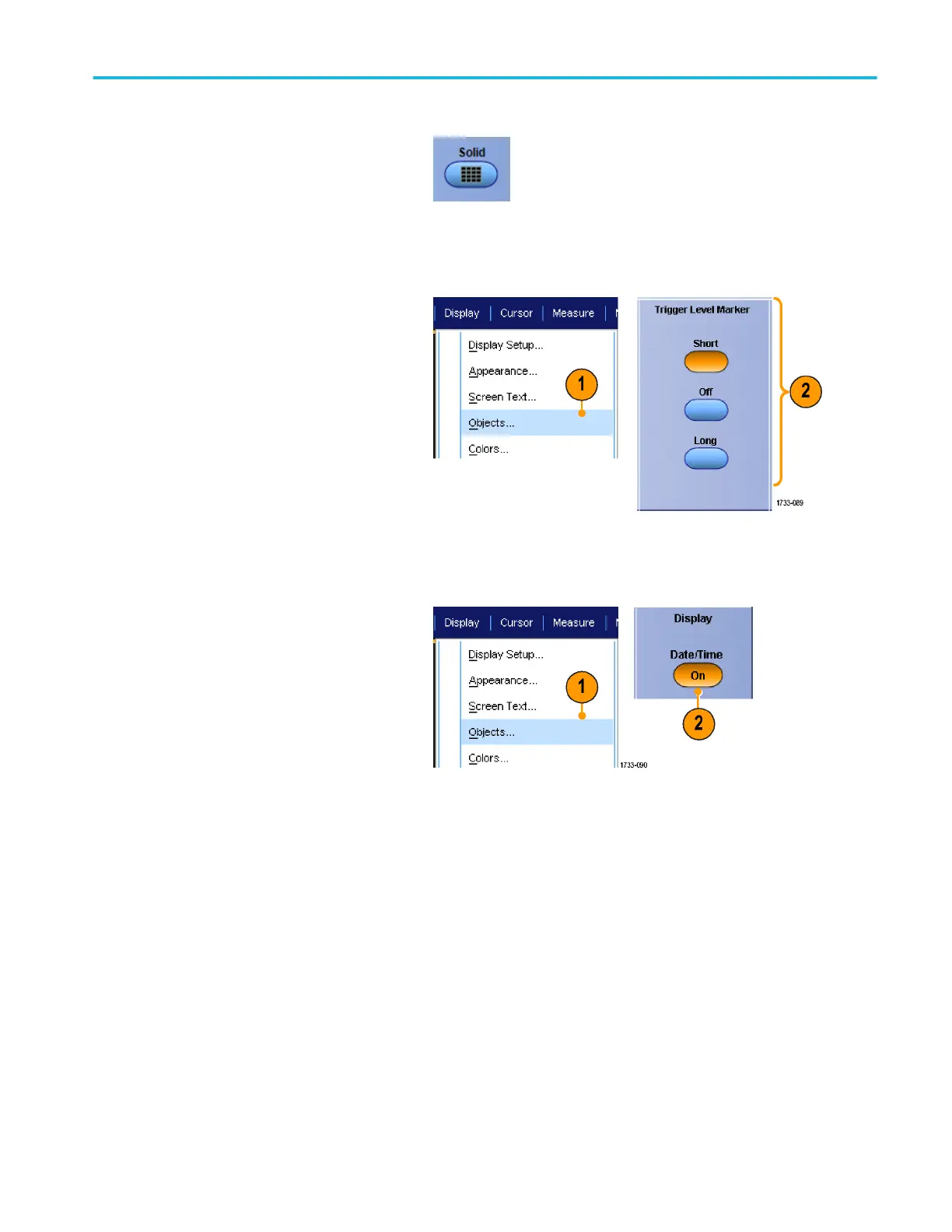

Solid is similar to Full, but the grid, cross hairs,
and frame are drawn using solid lines.
Setting the trigger level marker
1. Select Display >Objects....
2. Select one of the following:
■
Short displays a short arrow on the
side of the graticule.
■
Long displays a horizontal line
across the graticule.
■
Off turns off the trigger level marker.
Displaying the date and time
1. Select Display > Objects....
2. Toggle the display of the date and time
on the graticule. Use the Utilities menu to
set the date and time.
Display a waveform
DPO70000SX Series User 111
