Changing the acquisition mode
Use this procedure to change the acquisition mode.

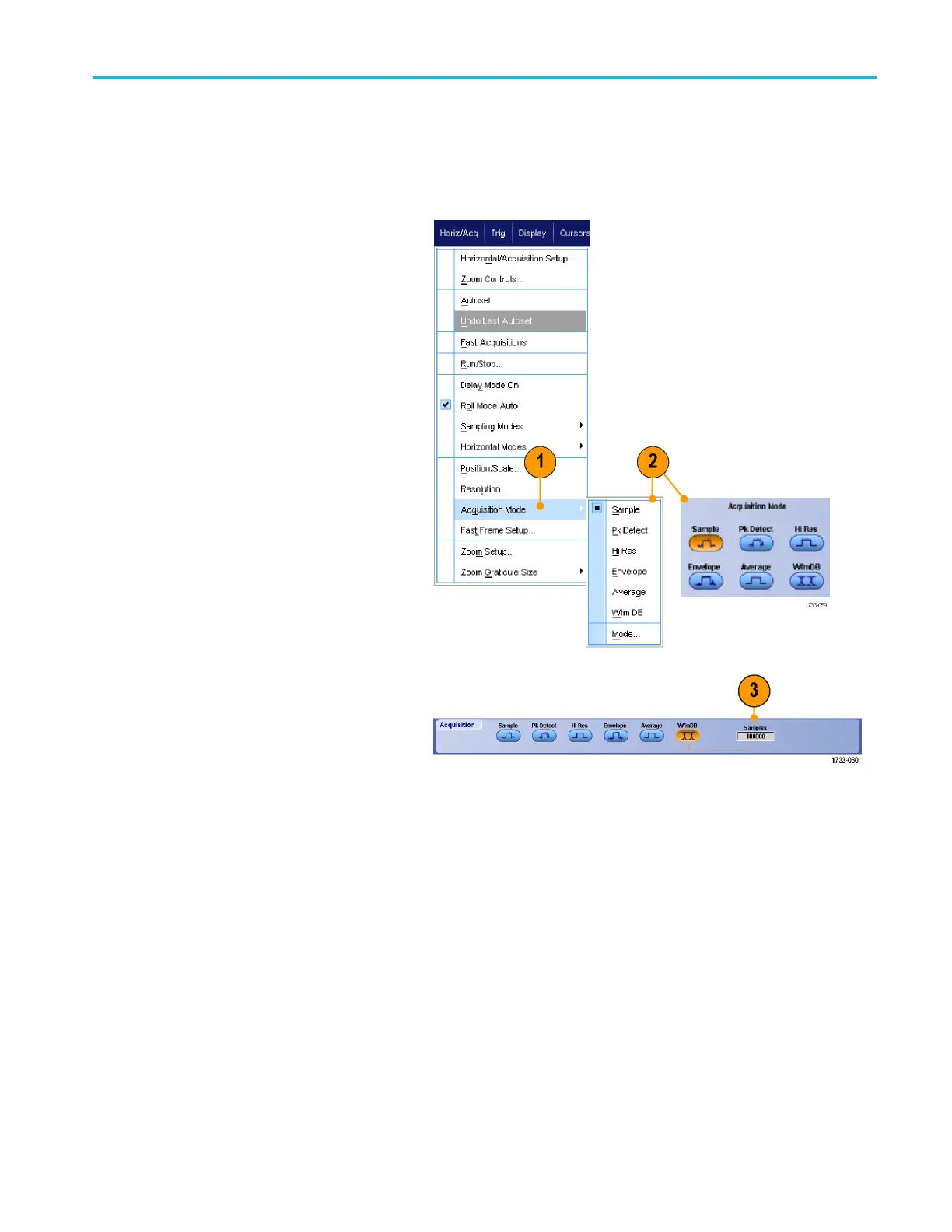

1. Select Horiz/Acq > Acquisition Mode.
2. To select an acquisition mode, do one of
the following:
■
Select an acquisition mode directly
from the menu.
■
Click Mode..., and then select an
acquisition mode.
3. For Average or Envelope acquisition
modes, click the # of Wfms control, and
then set the number of waveforms with
the multipurpose knob. For WfmDB
mode, click the Samples control, and
then set the number of samples with the
multipurpose knob.
Quick tip
■
Click the keypad icon to set the number of waveforms or samples.
■
WfmDB mode is not available in multi-unit configurations.
Acquisition
DPO70000SX Series User 59
