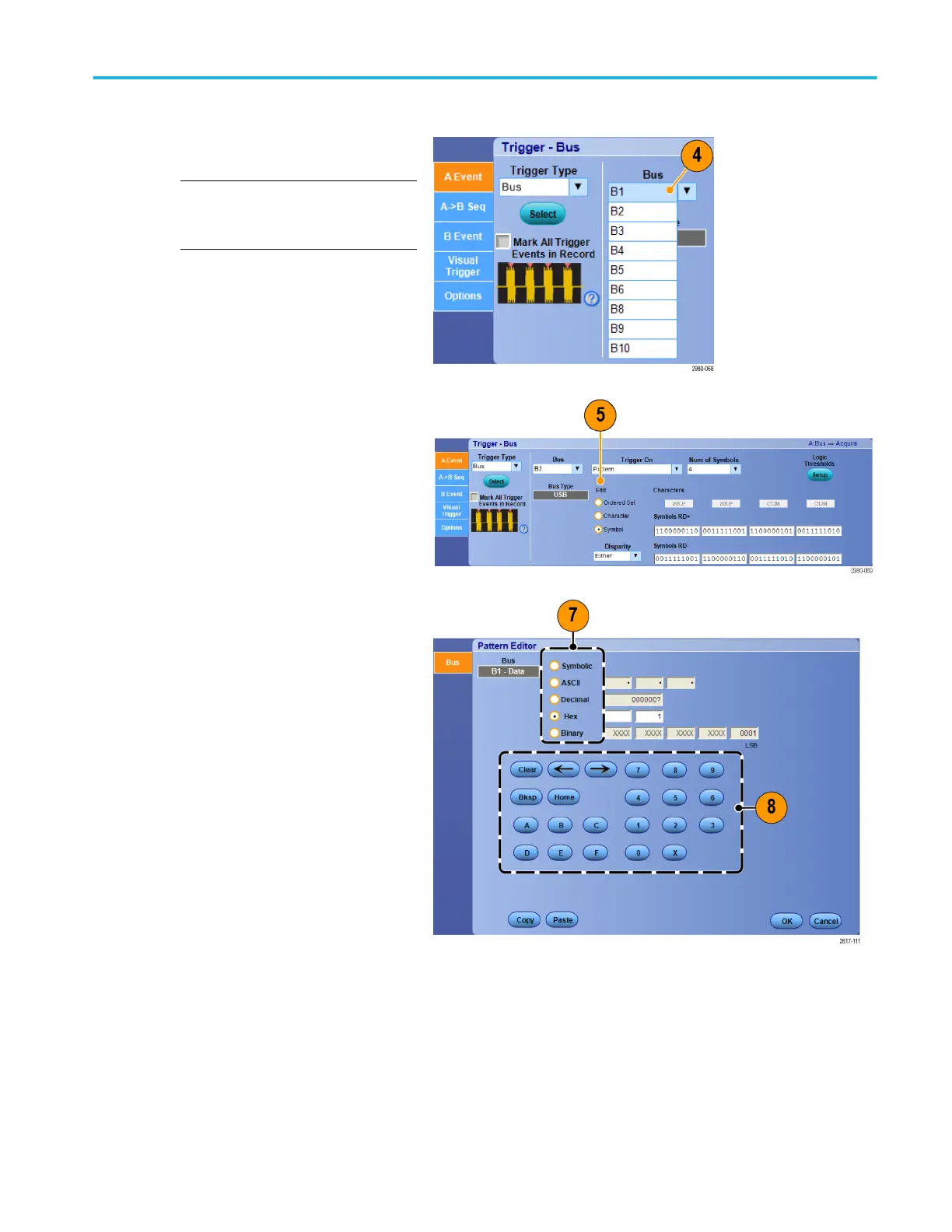

4. Select the bus to trigger on.
NOTE. Clocked buses will only appear in
the drop down list if the clock source is
set to Ch4.
5. Click an Edit button and set the pattern
and format that you want to trigger on.
6. Select the data format.
7. Set the pattern to trigger on using the
keypad.
Pinpoint triggers
DPO70000SX Series User 95
