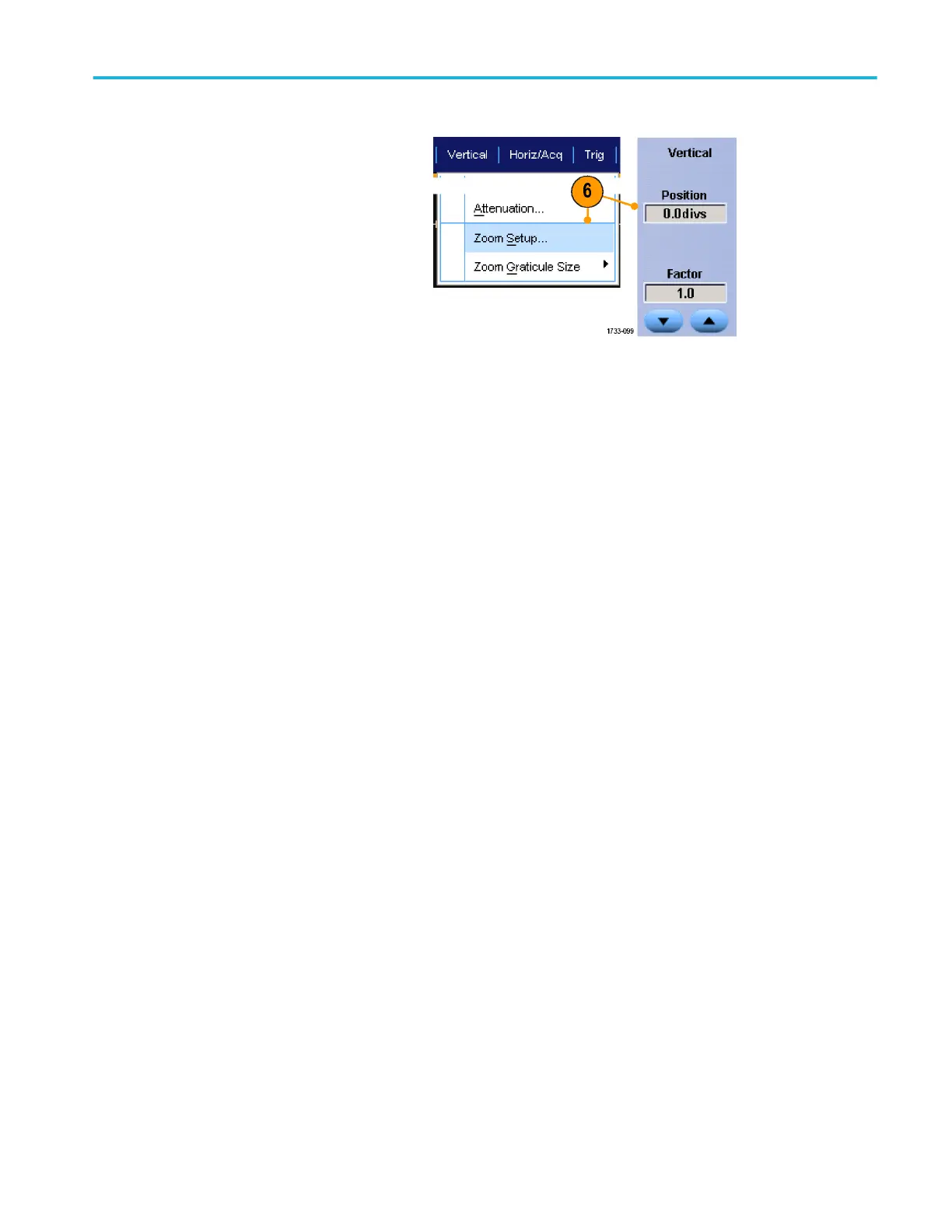

6. To adjust the zoomed area vertically,
select Vertical > Zoom Setup..., click a
vertical field, and then use the optional
multipurpose knobs or double click the
readout and use the keypad to adjust the
Vertical Position and Factor.
Quick tips
■
To clear the zoom area, click Position Factor Reset from the Zoom Setup control window.
■
Turn each zoom display on and off from the Zoom Setup control window.
■
Push the MultiView Zoom button once or twice to toggle all zoom displays on and off.
■
To reposition the zoomed area horizontally, click and drag the horizontal marker at the bottom of the zoom box.
Display a waveform
