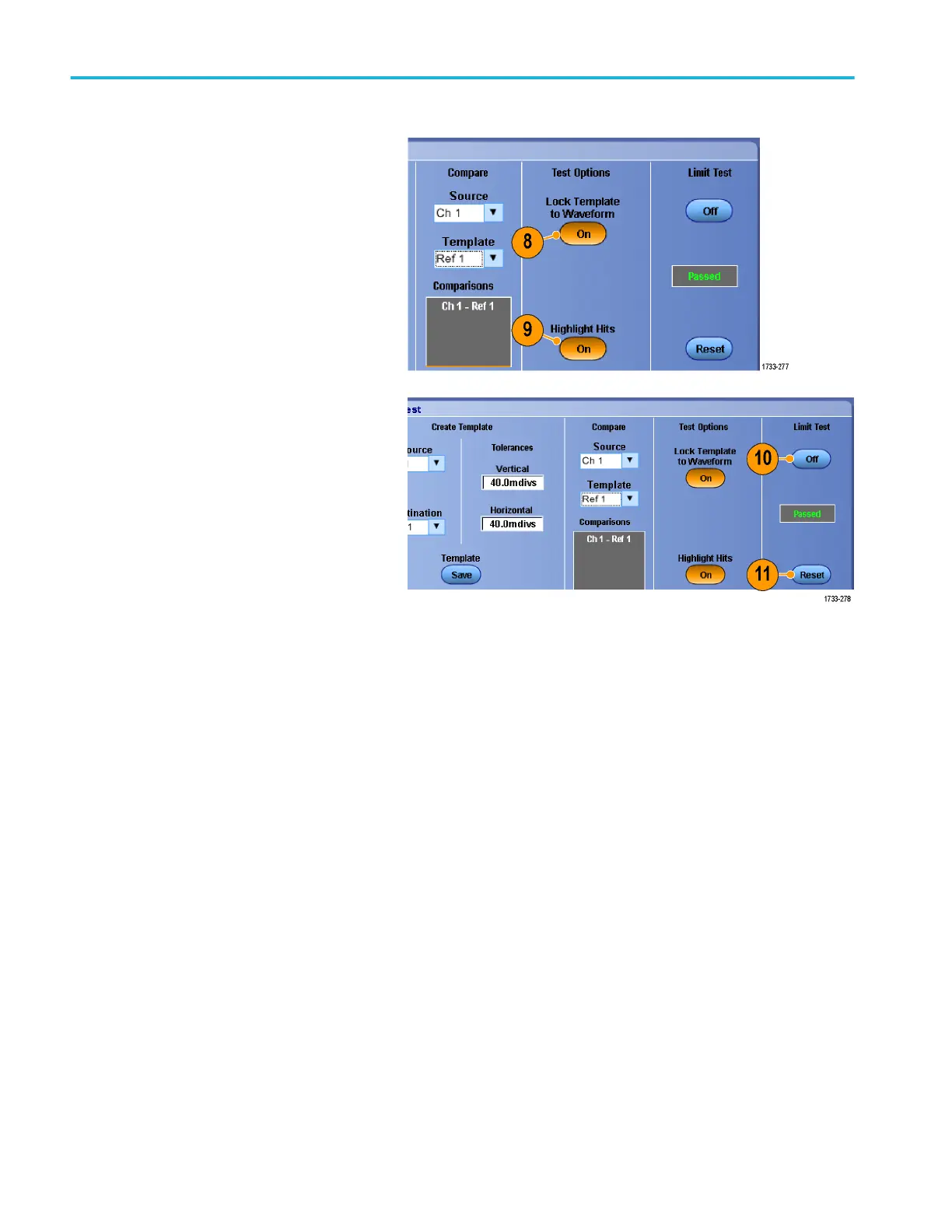

8. Click Lock Template to Waveform On to
lock the vertical scale or position of the
template to that of the source waveform.
9. Click Highlight Hits On to show points
that fall outside the template in a different
color.
10. Toggle Limit Test to On to start the test.
11. Click Reset to clear all violations and
reset the test.
Quick tips
■
Use active or saved waveforms to create a limit test template.
■
Using Average acquisition mode will create a smoother template waveform.
■
Using Envelope acquisition mode will create a template that allows for occasional overshoots.
■
Limit testing is not available in multi-unit configurations.
Analyzing waveforms
156 DPO70000SX Series User
