Tektronix DPO77002SX

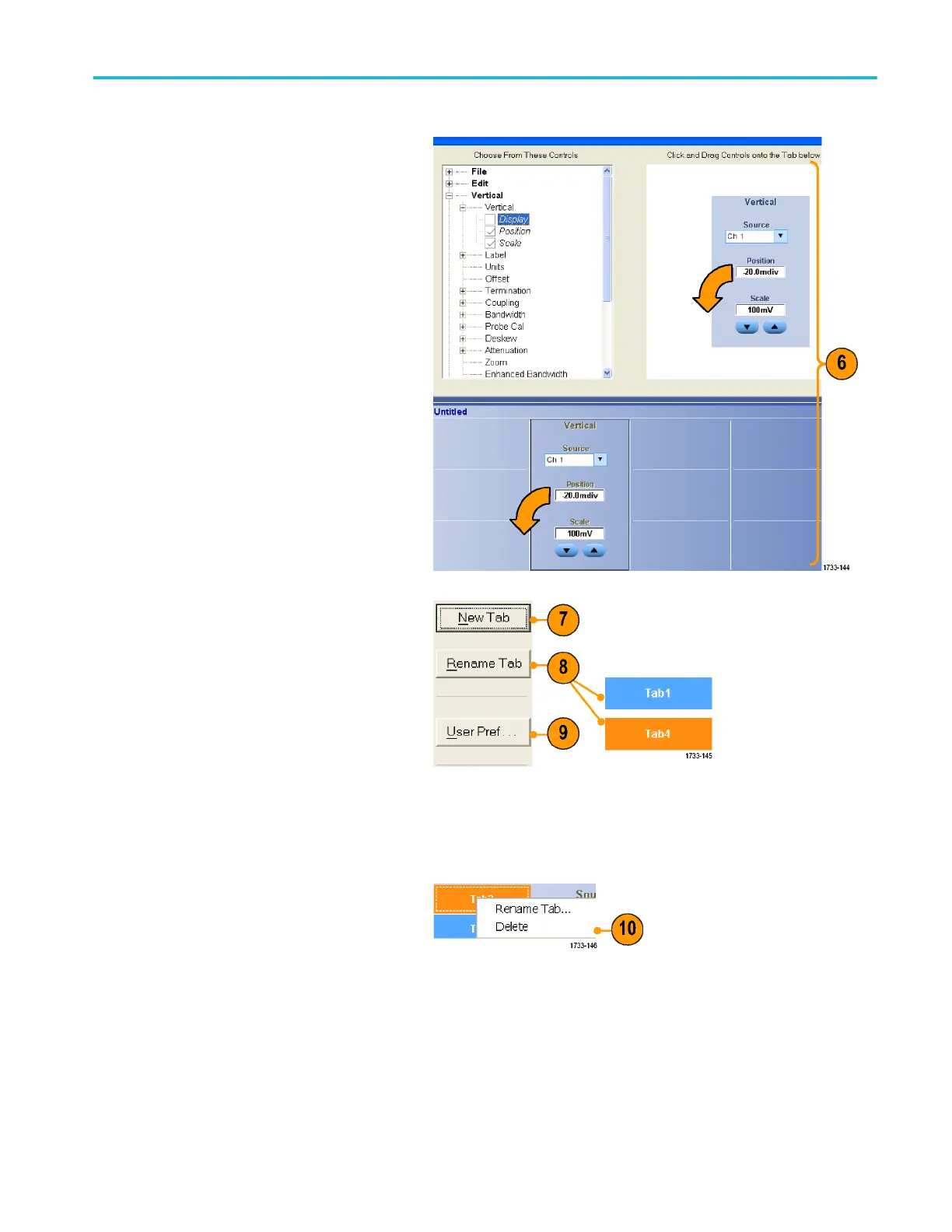

6. Click and drag the control to your
MyScope control window. The control will
snap to the nearest grid location when
you release the mouse. Change the
placement of the control in your MyScope
control window by clicking and dragging.
7. Click New Tab to add a tab to your
MyScope control window. You can have
up to six tabs.
8. To rename a tab do one of the following:
■
Click Rename Tab.
■
Double-click the tab, and then type
the new name.
9. Click User Pref... to specify user
preferences that are loaded with your
MyScope control window.
10. To delete controls do one of the following:
■
Select a tab, and then click Delete.
The tab and all of the controls are
deleted.
■
Select a control, and then click
Delete. Just the selected control is
deleted.
MyScope
DPO70000SX Series User 159
