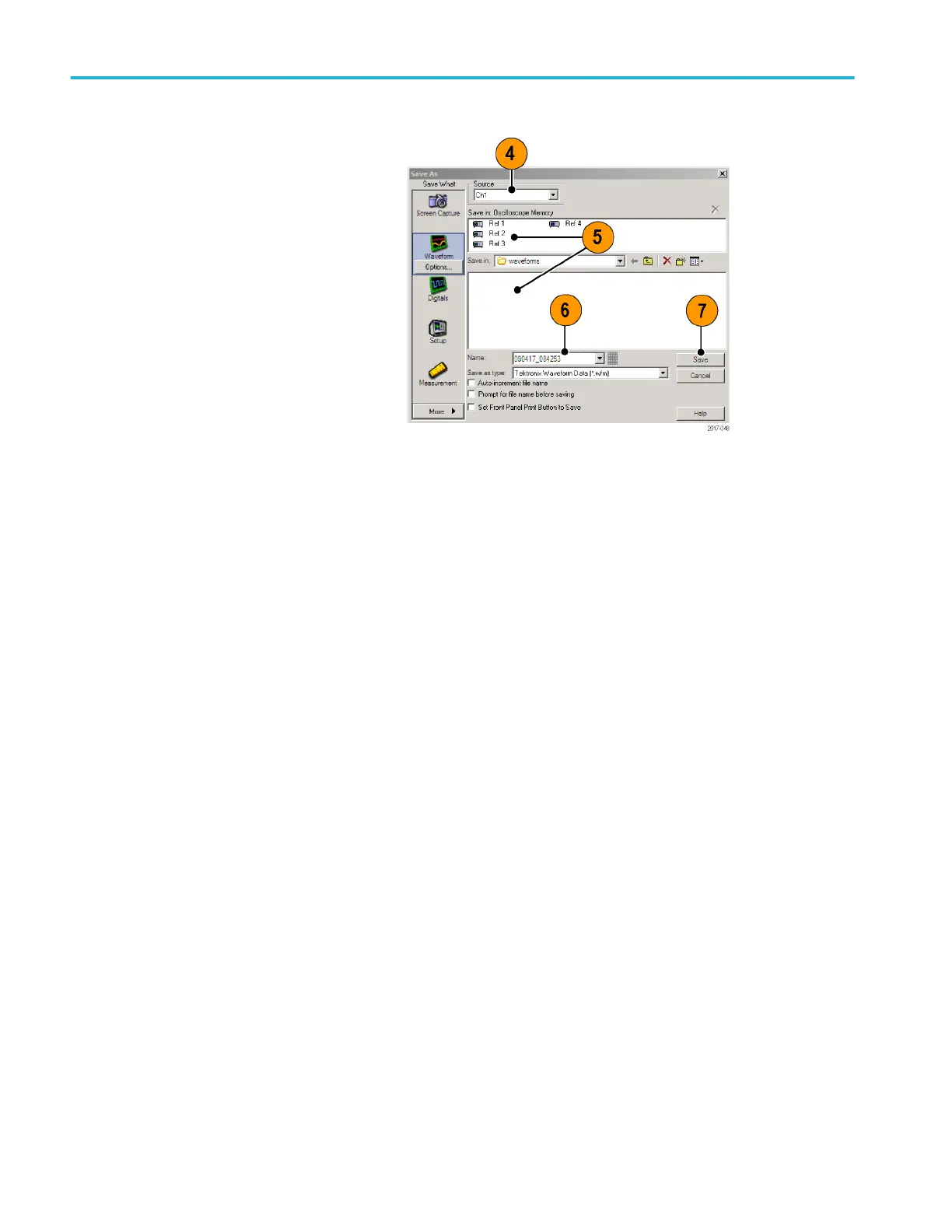

4. Select the Source.
5. You can either save the waveform as a
reference waveform in the instrument
memory or as a .wfm file in a Windows
directory. To save the waveform as a
reference, select Ref 1–4. To save as
a .wfm file, select the location where you
want to save the waveform.
6. If you are saving as a .wfm file, type in a
file name, or use the default.
7. Click Save.
Quick tips
■
Select Auto-increment file name to save similar waveforms without having to retype the entire name.
■
To quickly save multiple waveforms, select Set Front Panel Print Button to Save, and then click Save. You can now save
a waveform by pushing the Print button on the Auxiliary Front Panel.
Saving and recalling information
166 DPO70000SX Series User
