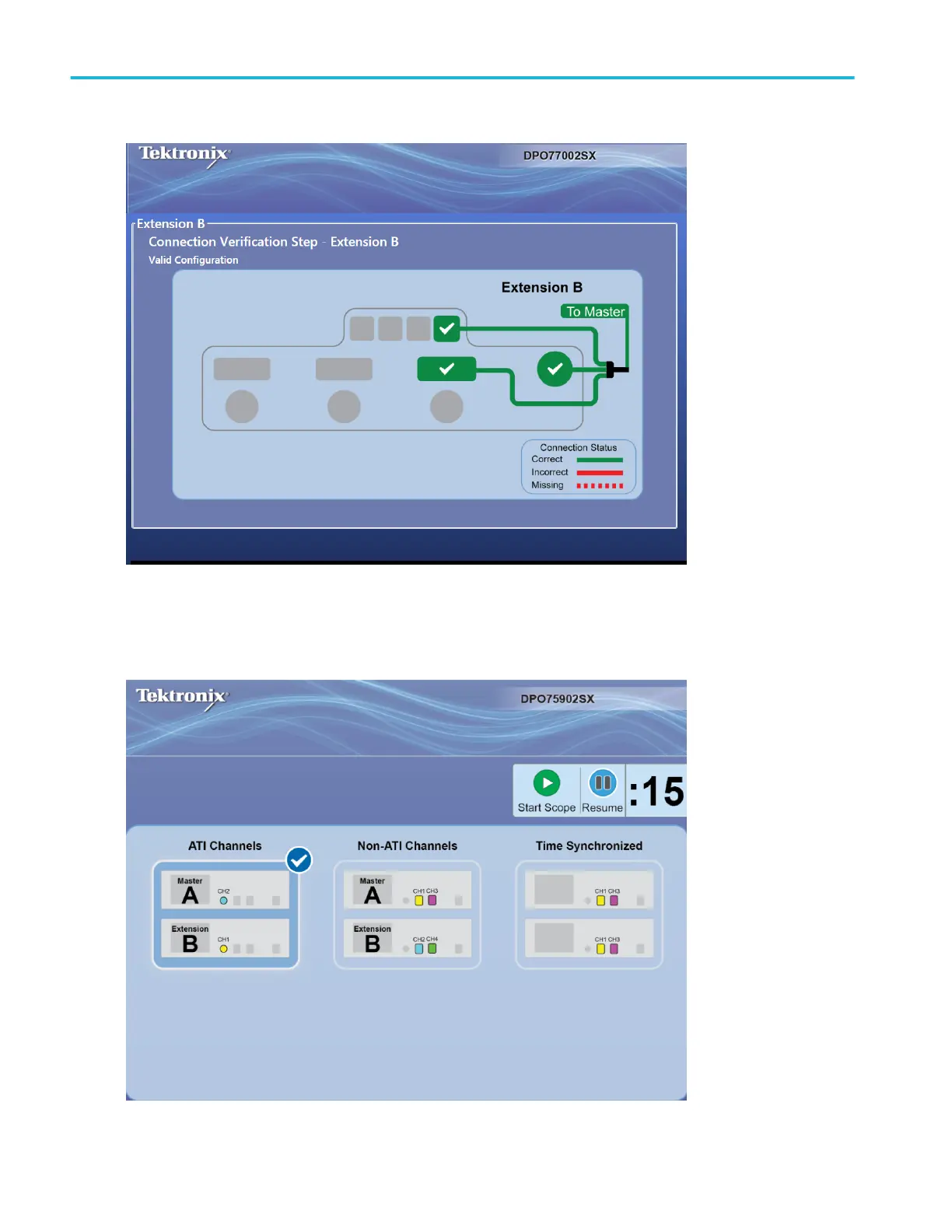

After the multi-instrument connections are verified and the instruments display their operating status displays, the master displays
its status and timer display. Pause the timer if you have additional changes to make before the oscilloscope application starts.
Press Start Scope to bypass the timer. When the timer runs down, the oscilloscope application starts.
Install your instrument
18 DPO70000SX Series User
