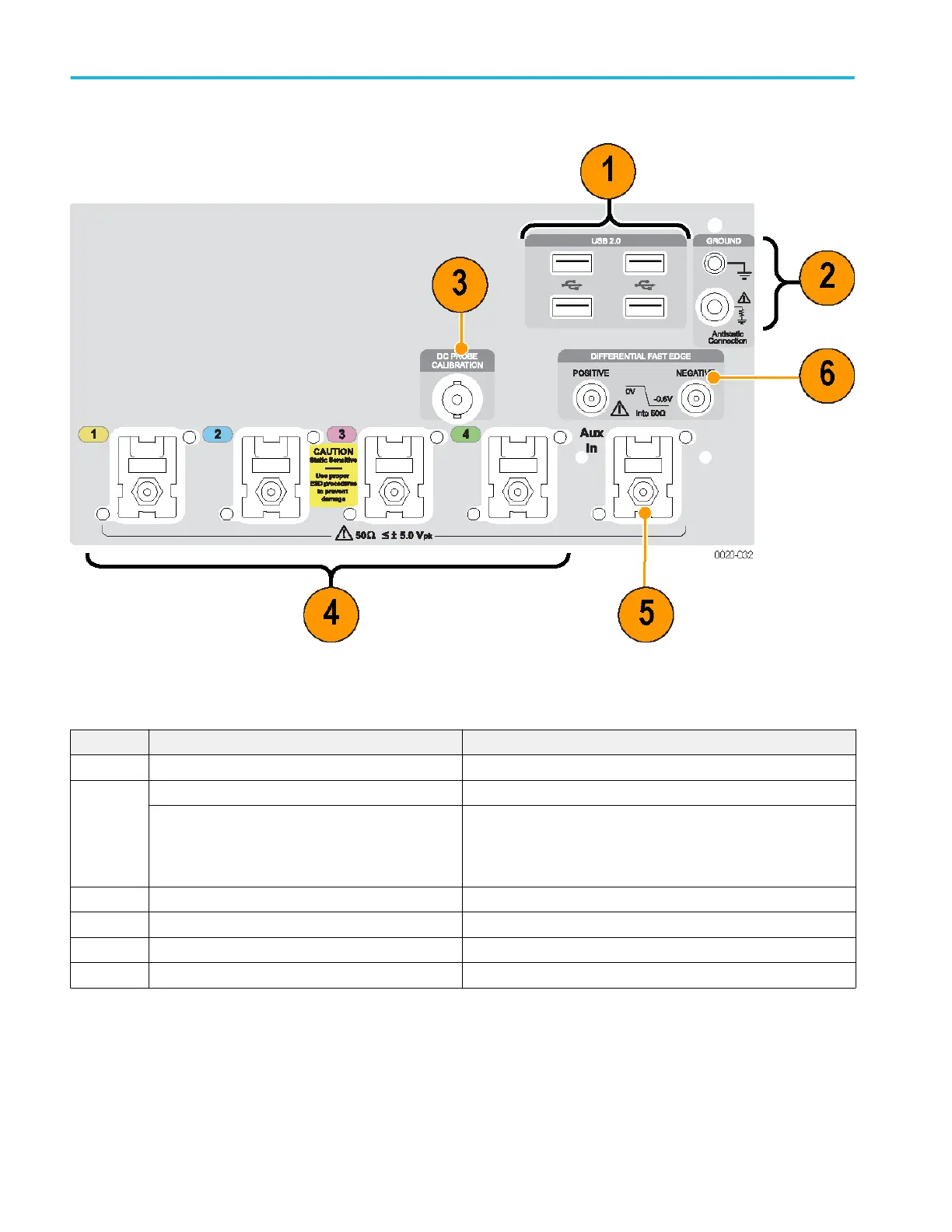

Figure 6: TekConnect channels
Table 6: Front-panel connectors
Identifier Connector Description
1 USB 2.0 Four USB connectors.
2 Chassis ground Banana type ground connection.
Ground through 1 MΩ resistor Banana type ground connection.
Discharge the static voltage from your body by wearing a grounded
antistatic wrist strap while connecting and disconnecting cables and
TekConnect adapters.
3 DC Probe Calibration Probe calibration output
4 1, 2, 3, and 4(Analog inputs) These connectors supply analog signals.
5 Aux In Auxiliary trigger input
6 Differential Fast Edge Differential fast edge step output.
Getting acquainted with your instrument
34 DPO70000SX Series User
