Tektronix MDO3024 User Manual

Get Acquainted w
ith the Instrument
Using Spectral Analysis Controls

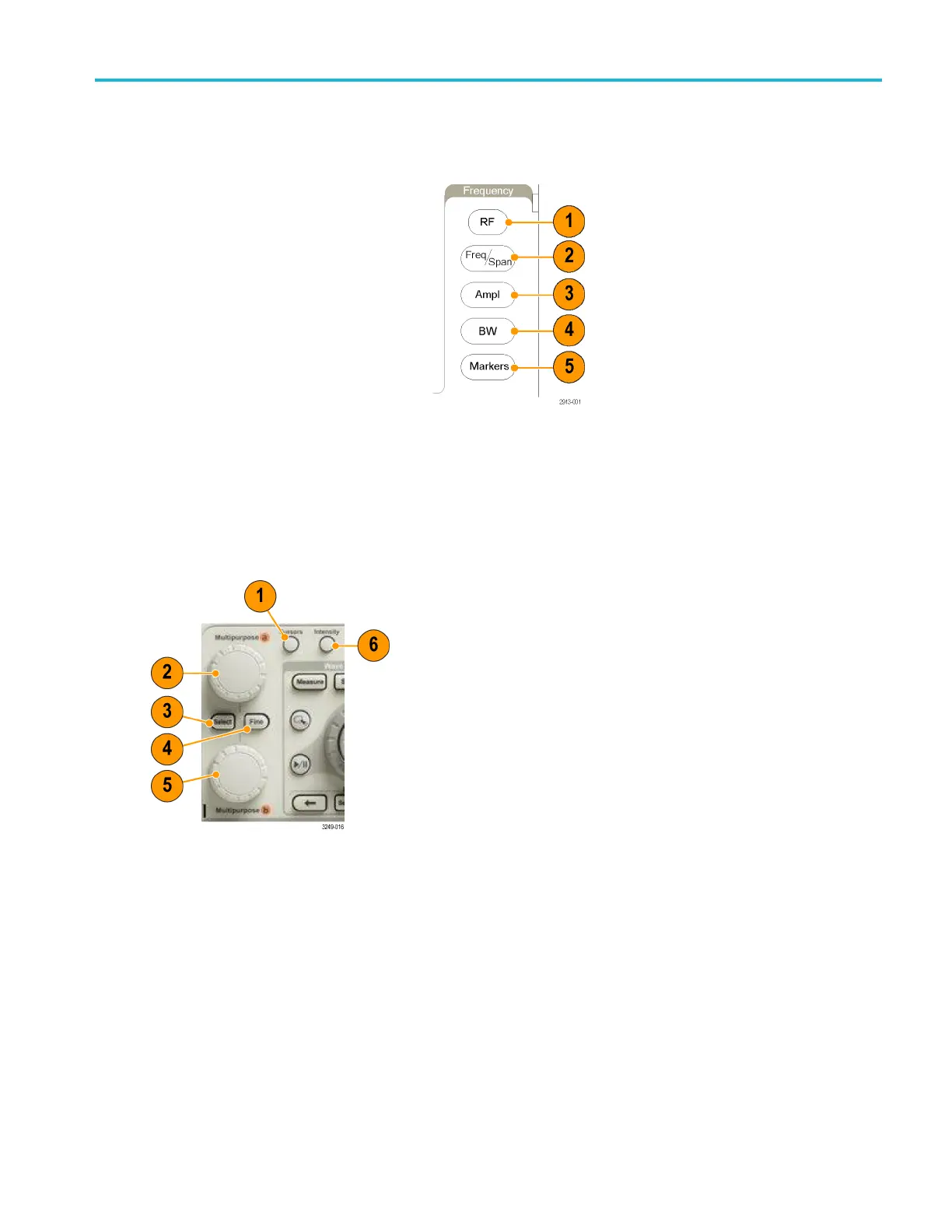

These buttons configure the acquisition and display of the RF input.
1. RF.Pushtobri
ng up the frequency
domain display and menu. The RF menu
provides access to the Spectrogram
display.
2. Freq/Span.
Push to specify the portion
of the spectrum to view on the display.
Set the center frequency and the span –
or set the st
art and stop frequency.
3. Ampl. Push
to set the reference level.
4. BW. Push t
odefine the resolution
bandwidth.
5. Markers.
Push to set automatic or
manual markers.
Using Other Controls
1. Cursors. Push once to activate the two vertical cursors. Push again to turn off all cursors. Push and hold to bring up the
cursor menu. Use the menu to select the cursor features, suc h as type, source, orientation, linked status, and units.
When the c ursors are on, you can turn the multipurpose knobs to control their position.
2. Turn the upper multipurpose knob a, when activated, to move a c ursor, to set a numerical parameter value for a m enu
item, or to select from a pop-out list of choices. Push the Fine button to toggle between coarse and fine adjustment.
Screen icons tell you when a or b are active.
3. S elect. Push to activate special functions.
MDO3000 Series Oscilloscopes User Manual 41

Tektronix MDO3024 Specifications

General

Analog Channels	4
Bandwidth	200 MHz
Sample Rate	2.5 GS/s
Record Length	10 Mpoints
Digital Channels	16 (optional)
Spectrum Analyzer Frequency Range	9 kHz to 3 GHz
Digital Voltmeter	4-digit
Vertical Resolution	8 bits
Operating Temperature	0 °C to +50 °C
Display	9-inch WVGA (800x480) color display
Connectivity	USB, LAN, GPIB (optional)
Arbitrary Function Generator	50 MHz
Trigger Modes	Edge, Pulse Width, Logic, Video, Runt, Rise/Fall Time, Setup/Hold
Input Impedance	1 MΩ ±1%
Max Input Voltage	300 VRMS
Trigger Types	Edge, Pulse Width, Logic, Video, Runt, Rise/Fall Time, Setup/Hold
