For example, when using the two vertical cursors (and no horizontal ones are visible), you can push this button to link or
unlink the curs
ors. When the two vertical and two horizontal cursors are both visible, you can push this button to make
either the vertical cursors or the horizontal cursors active.
4. Fine. Push to toggle between making coarse and fi ne adjustments with the many operations of multipurpose knobs a
and b
5. Turn the lower Multipurpo se b knob, when activated, to move a cursor o r set a numerical parameter value for a
menu item. Pu
sh Fine to make adjustments more slowly.
6. Intensity.P
ush to enable Mu ltip urpose a to control waveform display intensity and knob b to control g raticule intensity.

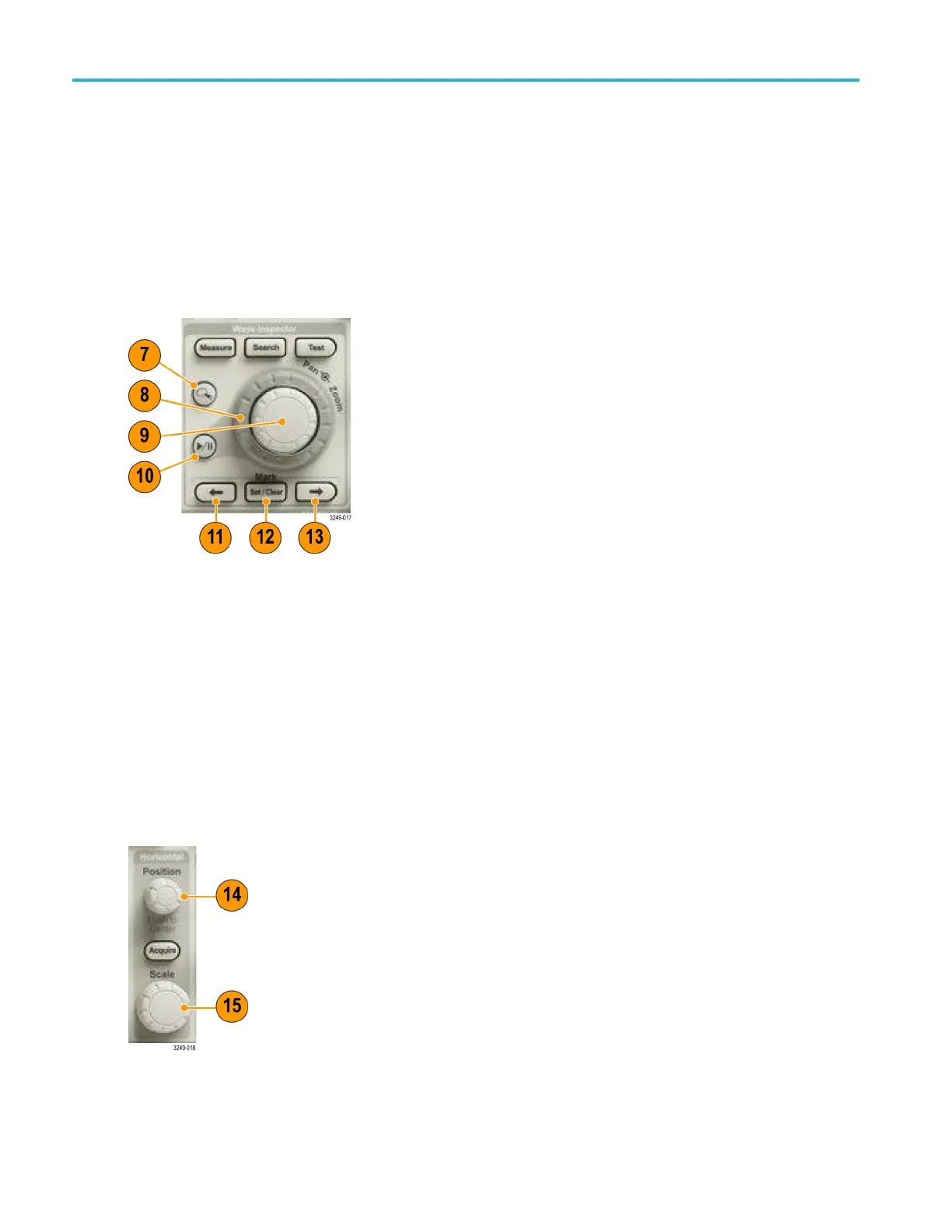

7. Zoom button. Push to activate zoom mode.
8. Pan (outer knob). Turn to scroll the zoom window through the acquired waveform.
9. Zoom-scale (inner knob). Turn to control the zoom factor. Turning it clockwise zooms in further. Turning it
counterclockwise zooms out.
10. Play-pause button. Push to start or stop the automatic panning of a waveform. Control the speed and direction with
the pan knob.
11. ← Prev. Push to jump to the previous waveform mark.
12. Set/Clear Mark. Push to establish or delete a waveform mark.
13. → Next. Push to jump to the next waveform mark.
42 MDO3000 Series Oscilloscopes User Manual

Tektronix MDO3024 Specifications

General

Analog Channels	4
Bandwidth	200 MHz
Sample Rate	2.5 GS/s
Record Length	10 Mpoints
Digital Channels	16 (optional)
Spectrum Analyzer Frequency Range	9 kHz to 3 GHz
Digital Voltmeter	4-digit
Vertical Resolution	8 bits
Operating Temperature	0 °C to +50 °C
Display	9-inch WVGA (800x480) color display
Connectivity	USB, LAN, GPIB (optional)
Arbitrary Function Generator	50 MHz
Trigger Modes	Edge, Pulse Width, Logic, Video, Runt, Rise/Fall Time, Setup/Hold
Input Impedance	1 MΩ ±1%
Max Input Voltage	300 VRMS
Trigger Types	Edge, Pulse Width, Logic, Video, Runt, Rise/Fall Time, Setup/Hold
