Operating basics
These procedures are an introduction to using the interface to do common tasks. Refer to the instrument help for detailed information on
menu and field settings.

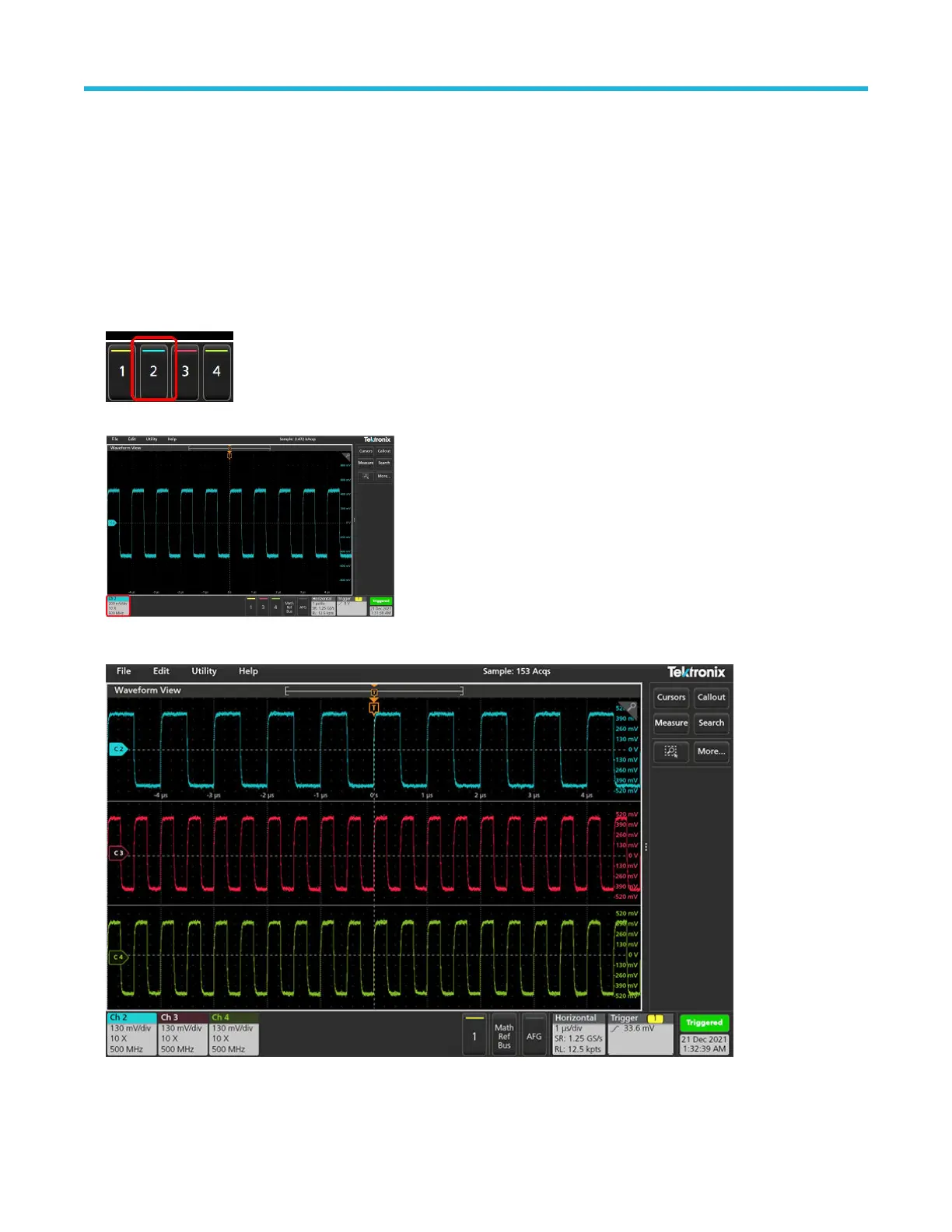

Add a channel waveform to the display
Use this procedure to add a channel signal to the Waveform View.
1. Connect signal(s) to the channel input(s).
2. Tap an Inactive Channel button (in the Settings bar) of a connected channel.
The selected channel is added to the Waveform View and a Channel badge is added to the Settings bar.
3. Continue tapping Inactive Channel buttons to add more channels (digital or analog). Channels are displayed from lowest-numbered
channel at the top, to highest-numbered channel at the bottom of the view
, regardless of the order they were added (in stacked mode).
4. Double-tap a channel badge to open that channel's configuration menu to check or change settings.
See Configure channel or
waveform settings on page 45.
Operating basics
44
