2. T

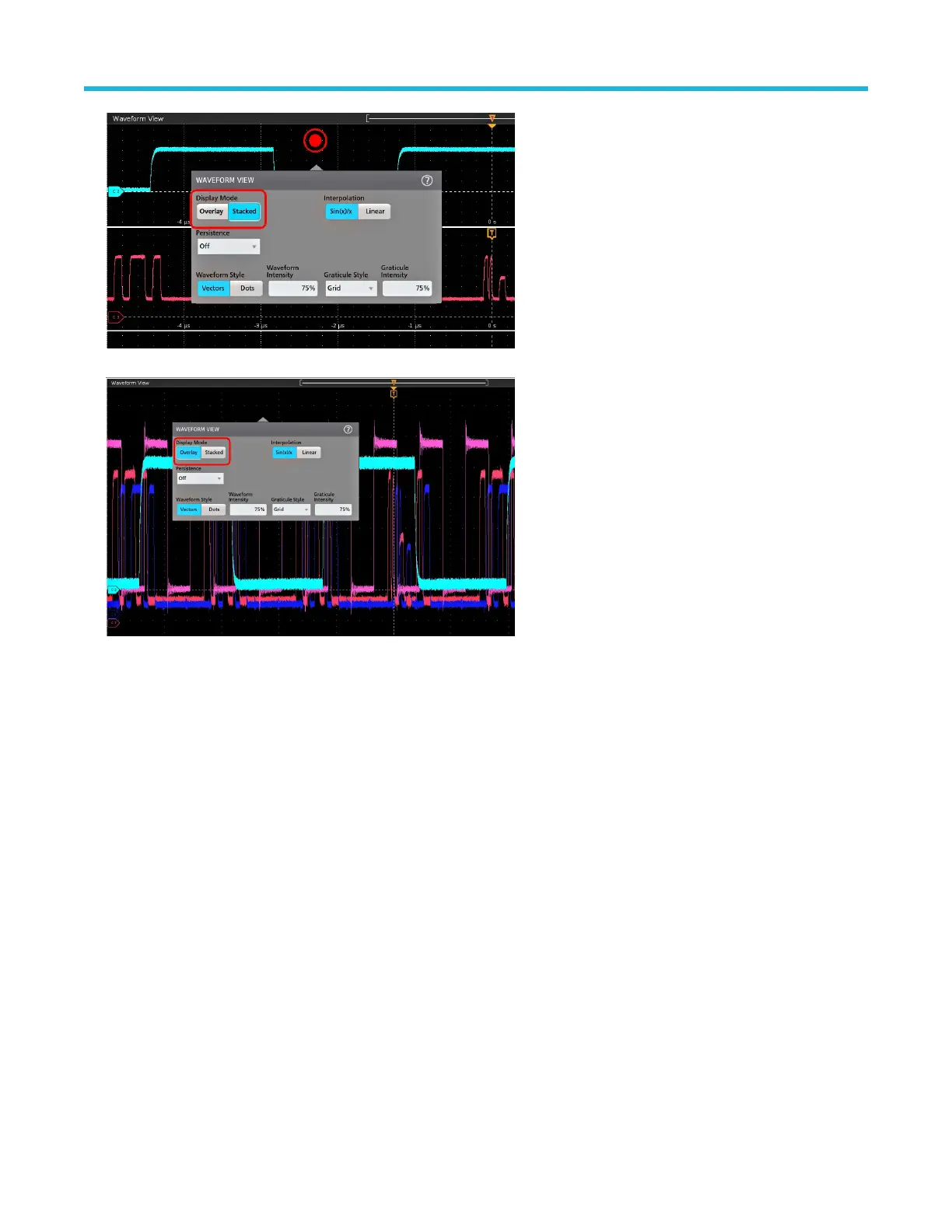

ap the buttons in the Display Mode to toggle between Overlay and Stacked modes.
3. Use the other controls to set the waveform interpolation algorithm, waveform point persistence, style, and intensity
, and graticule style
and intensity.
4. Tap the Help icon on the menu title to open the Waveform View menu help topic for more information on the waveform view
parameters.
5. Tap outside the menu to close the menu.
Display and configure cursors
Cursors are on-screen lines that you can move to take measurements on specific parts of a waveform or between two different waveforms.
Cursor readouts show both current position values and the difference (delta) between cursors. Polar cursor readouts are available through
the cursor configuration menu for XY plots.
1. Tap the waveform slice (in Stacked mode), or the channel or waveform badge (in Overlay mode) to which you want to add cursors.
2. Tap the Cursors button. The cursors are added to the display.
Operating basics
2 Series Mixed Signal Oscilloscopes MSO24, MSO22 Quick Start Manual 55
