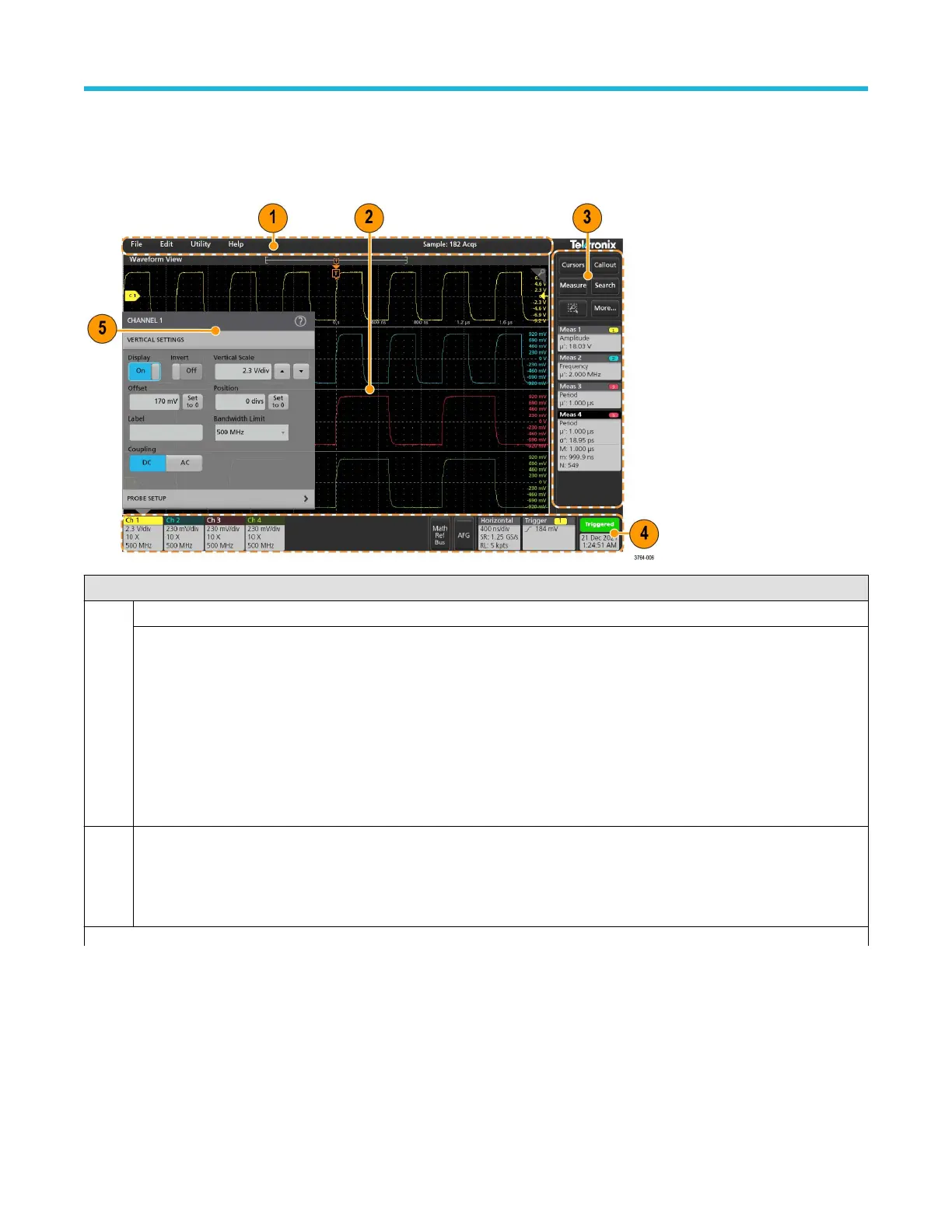

User interface
The touch screen user interface contains waveforms and plots, measurement readouts, and touch-based controls to access all
oscilloscope functions.
Description
1 The menu bar provides menus for typical operations including:
Saving, loading, and accessing files
Undoing or redoing an action
Setting oscilloscope display and measurement preferences
Configuring network access
Running self tests
Erasing measurement and settings memory
Loading option licenses
Opening a Help viewer
2 The Waveform view area displays analog, digital, math, reference, bus, and trend waveforms. The waveforms include waveform
handles (identifiers), individual vertical graticule scale labels, and trigger position and level indicators. Y
ou can set the Waveform
View to stack each waveform vertically in separate graticule, called slices (the default mode), or overlay all the waveforms on
the screen (traditional waveform view). You can also add Measurement Results views (plots) for individual measurements. These
plot views are separate view windows that you can move on the screen by dragging their title bar to a new position.
Table continued…
Getting acquainted with your instrument
26
