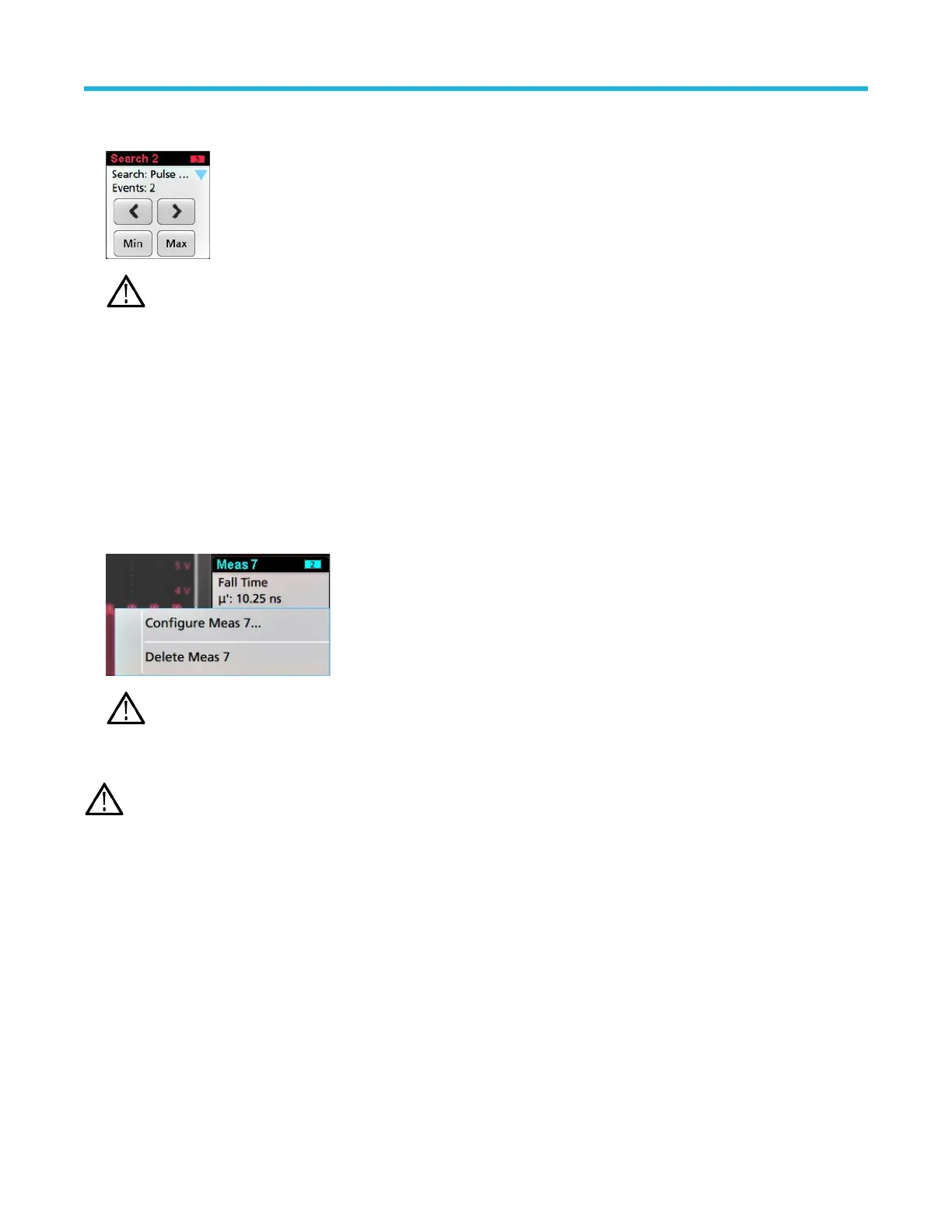

5. T
o move the waveform to center marks on the display, push the Run/Stop front panel button to stop acquisition, single-tap a Search
badge, and tap the < or > Navigation button.
Note: Navigation buttons are only functional when the oscilloscope acquisition mode is set to Stop.
This opens the Zoom mode and moves the waveform to the previous or next event mark on the waveform.
6. If available for a search, tap the Min or Max button to center the waveform in the display at the minimum or maximum value of the
search events in the waveform record.
7. T
o return the instrument to normal acquisition mode, push the Run/Stop front-panel button to set it to Run mode.
Delete a Measurement or Search badge
Use this procedure to remove a Measurement or Search badge from the Results bar.
1. Touch and hold the Measurement or Search badge that you want to delete. The instrument opens a right-click menu.
2. Select Delete Meas to delete that badge from the Results bar.
Note: Y
ou can undo a measurement delete.
3. The second way to delete a Measurement or Search badge is by flicking it of
f the right edge of the display. Flicking to the left from the
right edge of the display recovers the badge.
Note: Badge recovery is possible within 10 seconds only of removal.
Change waveform view settings
Use this procedure to change the waveform display mode (Stacked or Overlay), waveform trace interpolation algorithm, waveform
persistence, style and intensity
, and graticule style and intensity.
1. Double-tap on an open graticule area to open the Waveform View configuration menu.
Operating basics
54
