Menus
SPG600 & SPG300 Sync Pulse Generators Service Manual 2-9
Test Signal (Analog)
Submenu
This menu allows you to select a test signal for analog output(s). Use the up (S) or
down (
T) arrow button to scroll through the menu. Figure 2-2 shows the Test
signal (analog) submenu diagram. Use the left (
W) or right (X) arrow button to
select a signal.

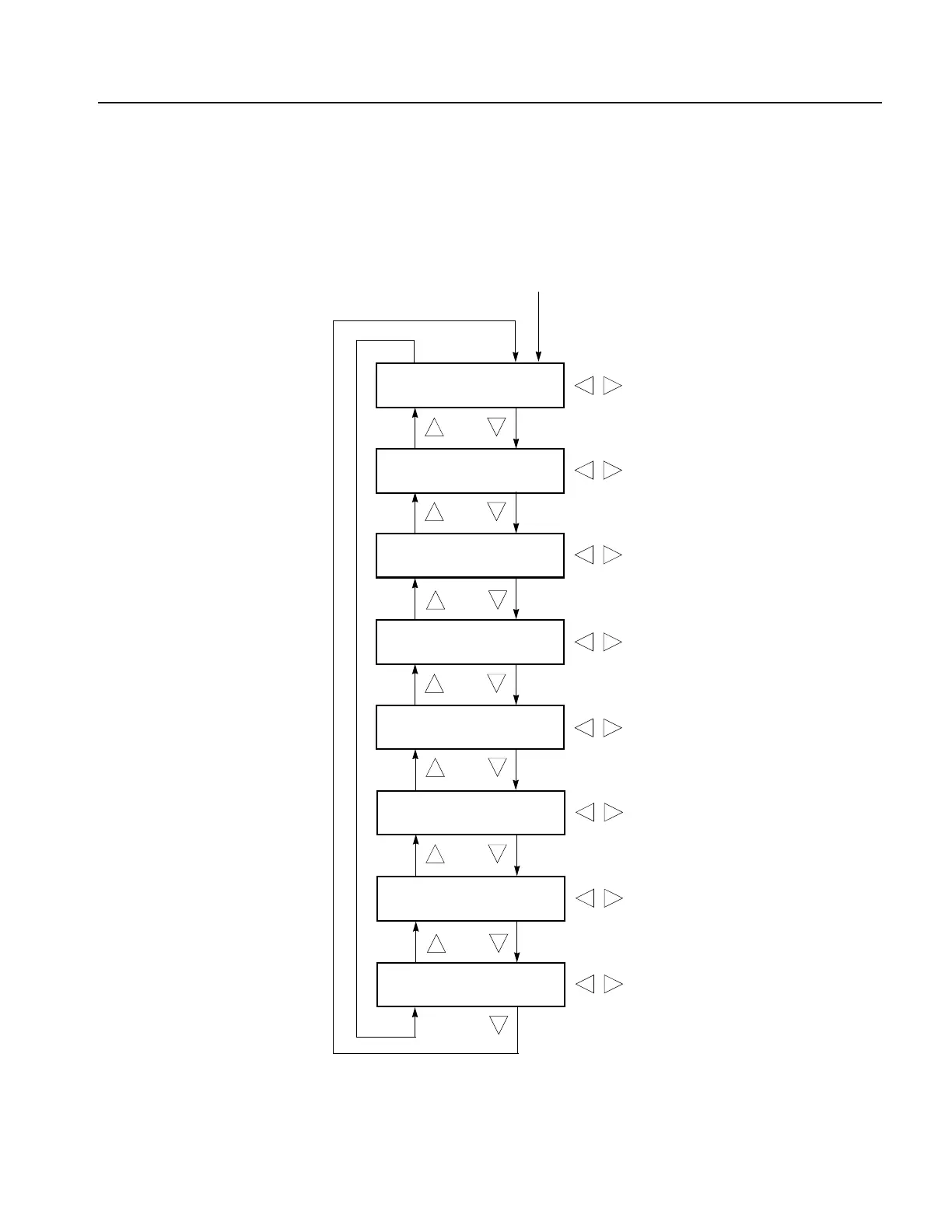

Figure 2-2: Test signal (analog) submenu diagram
Select TEST SIGNAL (ANALOG) in the Video menu
Select a signal
Select a signal
Select a signal
Select a signal
Select a signal
Select a signal
Select a signal
Select a signal
PULSE BAR
2T Pulse & Bar
SWEEP
100% Sweep
MULTIBURST
100% Multiburst
MONITOR
100% Red Field
LINEARITY
10 Step
FLAT FIELD
0% Flat Field
COLOR BAR
100% Color Bars
OTHER
FCC Composite
