SPG600 & SPG300 Sync Pulse Generators Service Manual 2-19
Audio Channel Submenu
This menu allows you to set the frequency, amplitude, and audio click of the
selected audio channel. Use the up (
S) or down (T) arrow button to scroll through
the menu items. Figure 2-13 shows the Audio channel submenu diagram.

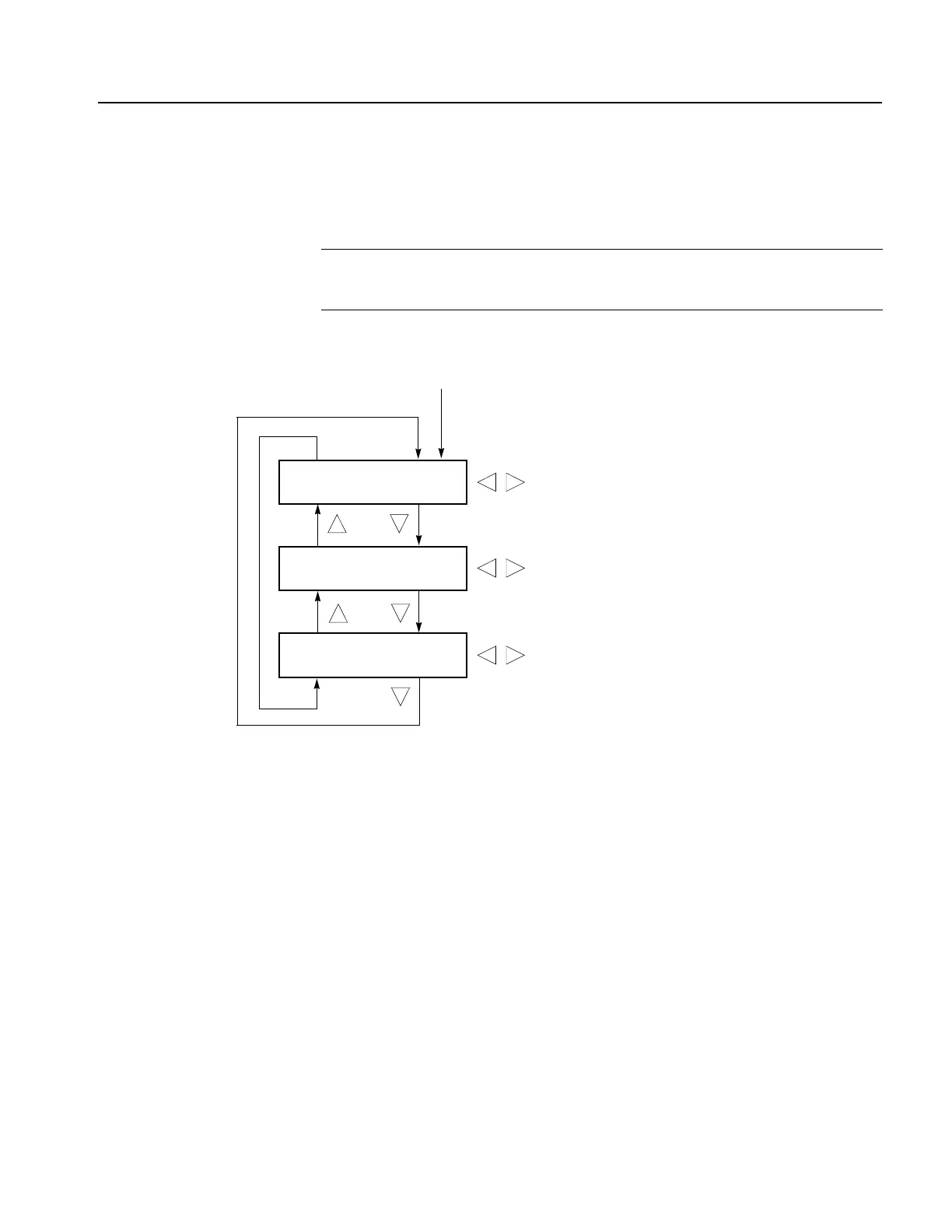

Figure 2-13: Audio channel submenu diagram
NOTE. The Audio channel submenu contents are common for AES/EBU audio,
Embedded audio, and Analog audio except for the menu title in the first line and
some parameter settings.
Inactive* 300 Hz 1200 Hz 4000 Hz 12000 Hz
Silence 400 Hz 1500 Hz 4800 Hz 15000 Hz
50 Hz 500 Hz 1600 Hz 5000 Hz 16000 Hz
100 Hz 600 Hz 2000 Hz 6000 Hz 20000 Hz
150 Hz 750 Hz 2400 Hz 8000 Hz
200 Hz 800 Hz 3000 Hz 9600 Hz
250 Hz 1000 Hz 3200 Hz 10000 Hz
OFF
1 Sec
2 Sec
3 Sec
4 Sec
AES/EBU : CH-1
Audio Click: OFF ↵
AES/EBU : CH-1
Ampl.: -20.0 dBFS
AES/EBU : CH-1
Freq.: 1000 Hz ↵
Select a channel in the AES/EBU or Embedded
submenu, or Audio: ANALOG menu item
-60 dBFS to 0 dBFS (for AES/EBU and embedded audio)
-48 dBu to 12 dBu (for analog audio)
* Not available for analog audio
