2-14 SPG600 & SPG300 Sync Pulse Generators Service Manual
ID Text Submenu
This menu allows you to edit and position a text string that is overlaid on the output
test signal. Use the up (
S) or down (T) arrow button to scroll through the menu.

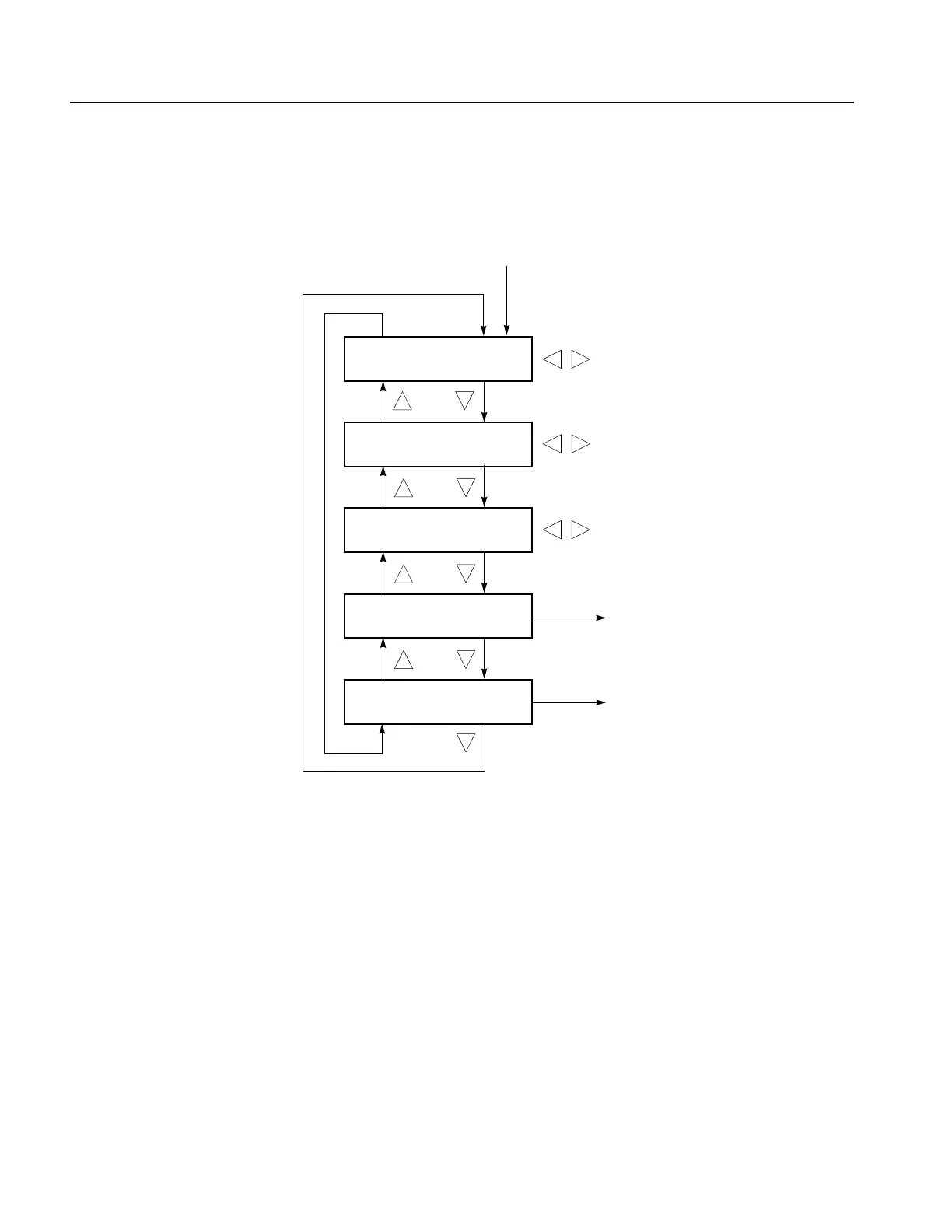

Figure 2-8 shows the ID text submenu diagram.
Figure 2-8: ID text submenu diagram
Select ID Text in the Overlay submenu
Disable
Enable
Set the horizontal position
Save the text to the signal file
Set the vertical position
ENTER
Edit text
ENTER
: ID TEXT
 Status: Disable ↵
: ID TEXT
X : 10.0 %APH
: ID TEXT : SAVE
Press ENTER to sav
↵
: ID TEXT
Y : 80.0 %APH
: ID TEXT : EDIT
