2-12 SPG600 & SPG300 Sync Pulse Generators Service Manual
Overlay Submenu
This menu allows you to select an item (logo or ID text) that is overlaid on the
output test signal. Use the up (
S) or down (T) arrow button to scroll through the
menu. Figure 2-6 shows the Overlay submenu diagram.

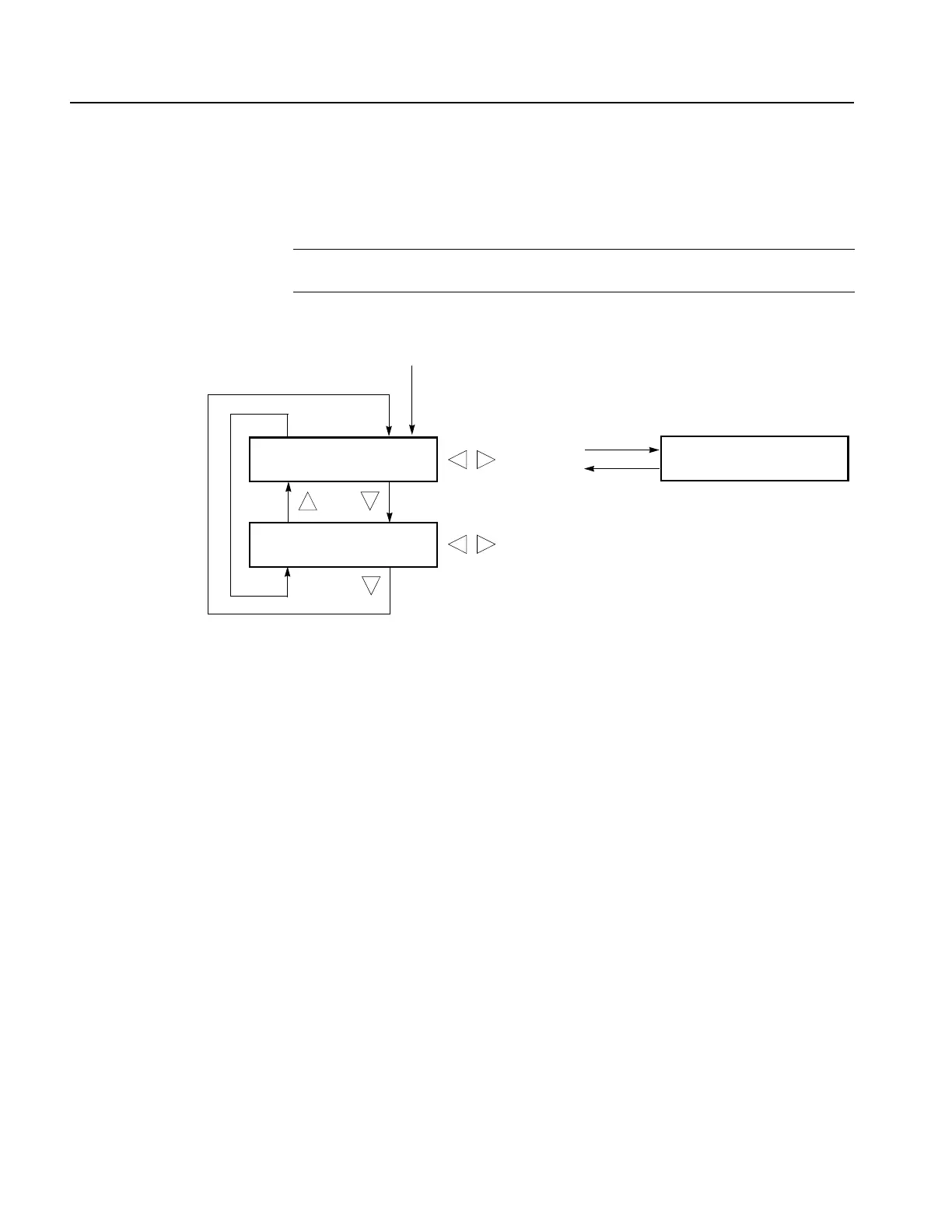

Figure 2-6: Overlay submenu diagram
NOTE. The Overlay submenu contents are common for both analog and serial
digital signals except for the menu title on the first line (ANALOG or SDI).
Select OVERLAY in the Video menu
ENTER
CANCEL
To Logo submenu (page 2-13)
To ID text submenu (page 2-14)
Logo
ID Text
: ANALOG (STD)
Logo
OFF
Fast
Low
: ANALOG (STD)
Blink OFF ↵
To Next Page
